Wellbore #00 Wellbore Classification: OW Status: PR - 4/1/2020 Measured TD: 14100 ft. Vertical TD: 7466 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 4/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/16/2017 | | Proposed Top PZ Location: | Sec:23 Twp: 1N 67W | Footage: 6 FSL 254 FWL | | Bottom Hole Location: | Sec:14 Twp: 1N 67W | Footage: 682 FSL 251 FWL | | Proposed Depth/Form: | 13949 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 710, Top: 0 ft., Bottom: 1828 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13939 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1639, Top: 0 ft., Bottom: 13939 ft. |
| | |

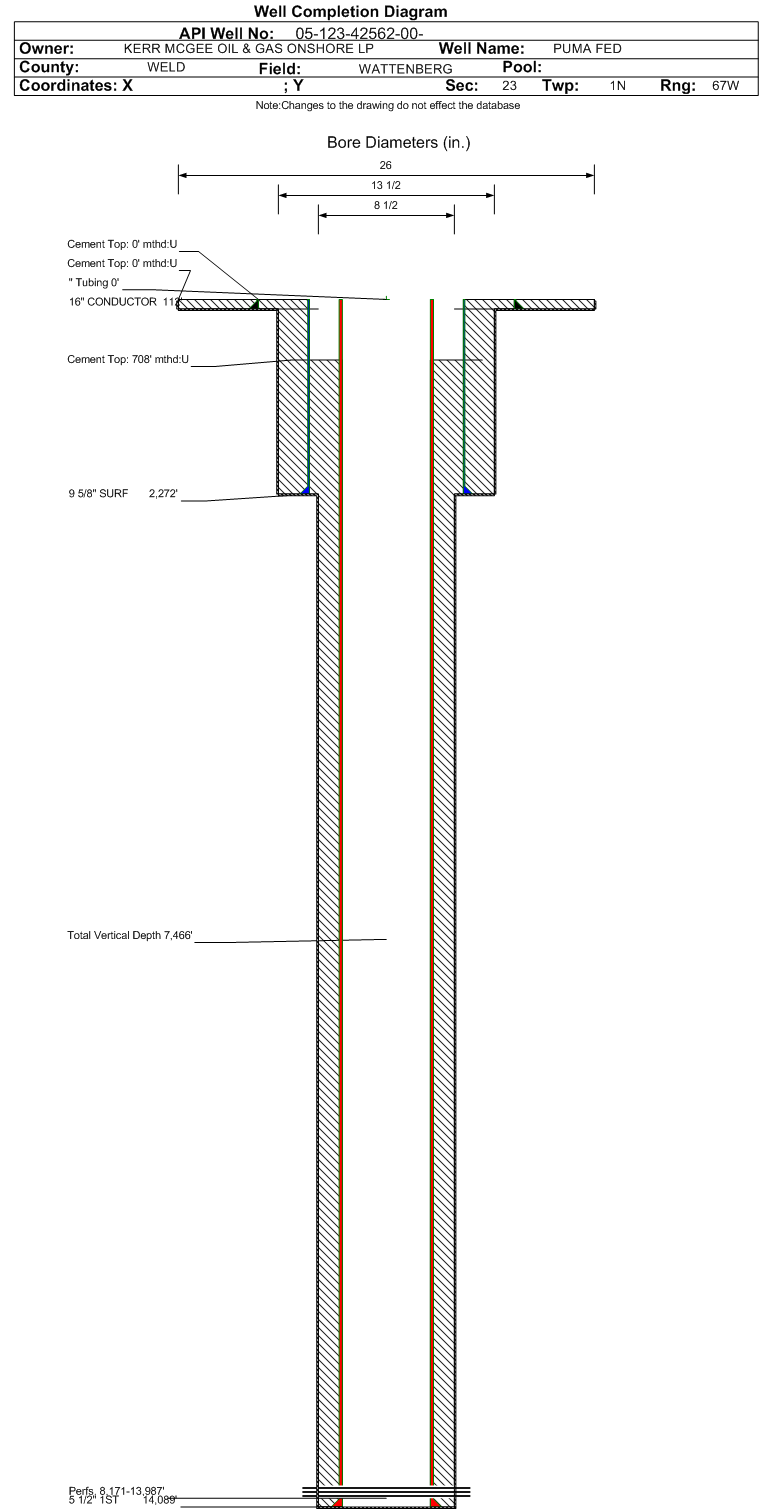

| Wellbore Completed | | Completion Date: | 4/4/2017 | | Spud Date: | 1/9/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 14100 ft. | Measured PB depth: | 13997 ft. | | True Vertical TD: | 7466 ft. | True Vertical PB depth: | 7467 ft. | | Top PZ Location: | Sec:23 Twp: 1N 67W | Footage: 6 FSL 254 FWL | | Bottom Hole Location: | Sec:14 Twp: 1N 67W | Footage: 682 FSL 251 FWL | | Log Types: | CBL, MWD/GR, (RESISTIVITY in API 05-123-42568) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 112 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 112 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2272 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 881, Top: 0 ft., Bottom: 2272 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 14089 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1850, Top: 708 ft., Bottom: 14089 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4821 ft. | | | | | SHARON SPRINGS | 7532 ft. | | | | | NIOBRARA | 7559 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 4/1/2020 Interval Top: 8171 ft. Interval Bottom: 13987 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/27/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/7/2017 | Treatment End Date: | 8/21/2017 | | Treatment Summary: | "PERF AND FRAC FROM 8171-13,987.
1,267 BBL 7.5% HCL ACID, 9,831 BBL PUMP DOWN, 201,146 BBL BIO WATER, - 212,244 TOTAL FLUID
1,712,800# 40/70 OTTOWA, - 1,712,800# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 212244 | Max pressure during treatment (psi): | 7883 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 55 | | Total acid used in treatment (bbls): | 1267 | Min frac gradient (psi/ft): | 0.85 | | Recycled water used in treatment (bbls): | 14570 | Total flowback volume recovered (bbls): | 2654 | | Fresh water used in treatment (bbls): | 196407 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1712800 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/2/2017 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 6 | | BBLS_OIL | 118 | | BTU_GAS | 1304 | | CALC_BBLS_H2O | 6 | | CALC_BBLS_OIL | 118 | | CALC_GOR | 1051 | | CALC_MCF_GAS | 124 | | CASING_PRESS | 1050 | | GRAVITY_OIL | 53 | | MCF_GAS | 124 |
| | Perforation Data: | | Interval Top: | 8171 ft. | # Of Holes: | 736 | | Interval Bottom: | 13987 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2931 |
| Total Gas Produced (MCF) | 32950 |
| GOR | 11241 |
| GOR Determination | BOE |
| Average BOE per Day | 23.595 |
| Average MCFE per Day | 136.870 |
| Federal Financial Assurance | i | |
|
|
