Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2019 Measured TD: 17060 ft. Vertical TD: 7173 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2019 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/13/2017 | | Proposed Top PZ Location: | Sec:23 Twp: 6N 67W | Footage: 1820 FNL 460 FWL | | Bottom Hole Location: | Sec:24 Twp: 6N 67W | Footage: 1820 FNL 460 FEL | | Proposed Depth/Form: | 17147 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 17147 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1600, Top: 1500 ft., Bottom: 17147 ft. |
| | |

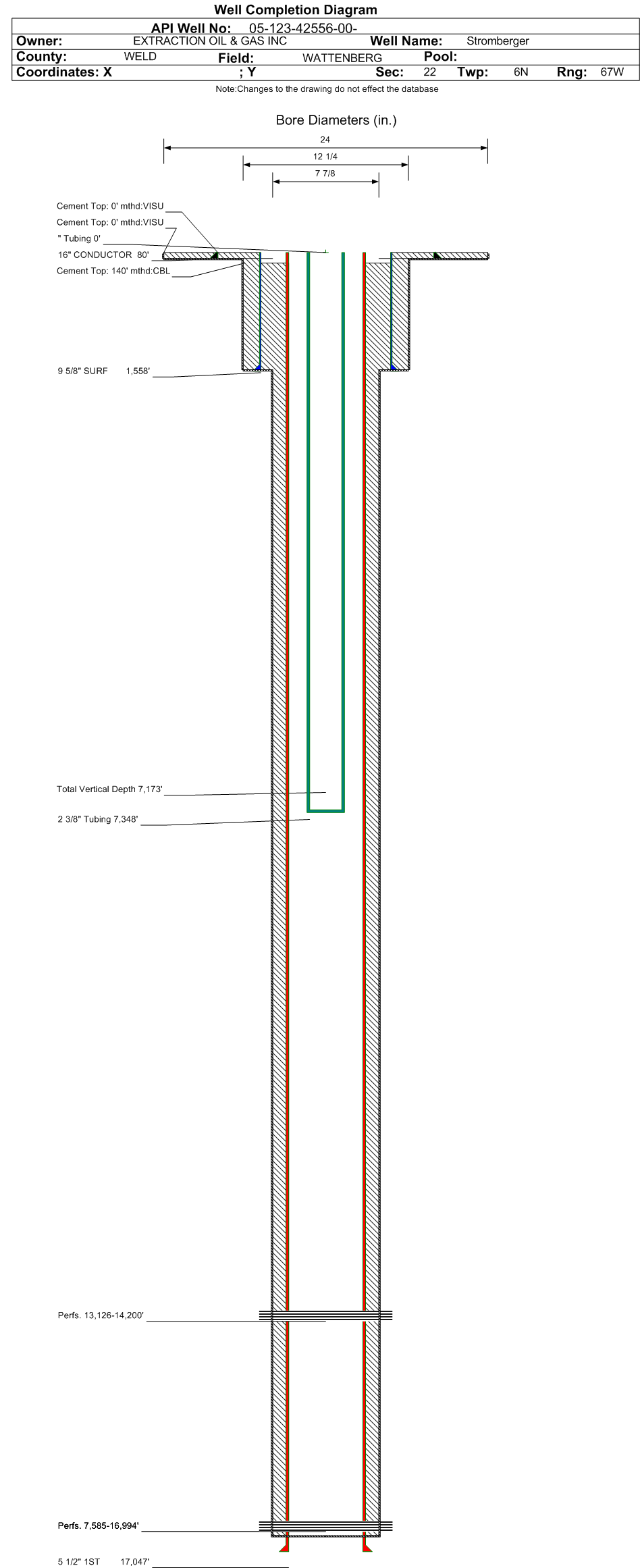

| Wellbore Completed | | Completion Date: | 3/31/2017 | | Spud Date: | 2/15/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 17060 ft. | Measured PB depth: | 17047 ft. | | True Vertical TD: | 7173 ft. | True Vertical PB depth: | 7173 ft. | | Top PZ Location: | Sec:23 Twp: 6N 67W | Footage: 1759 FNL 518 FWL | | Bottom Hole Location: | Sec:24 Twp: 6N 67W | Footage: 1856 FNL 547 FEL | | Log Types: | CBL, MUD, MWD/LWD, (Dual Induction on API 123-42559). | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1558 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 0 ft., Bottom: 1558 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 17047 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2700, Top: 140 ft., Bottom: 17047 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3532 ft. | | N | N | | SUSSEX | 4050 ft. | | N | N | | SHANNON | 4609 ft. | | N | N | | SHARON SPRINGS | 6829 ft. | | N | N | | NIOBRARA | 6872 ft. | | N | N | | FORT HAYS | 7262 ft. | | N | N | | CODELL | 7398 ft. | | N | N |
Formation FTHYS Formation Classification: OW Status: CM - 3/2/2018 Interval Top: 13126 ft. Interval Bottom: 14200 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/2/2018 | Treatment End Date: | N/A | | Treatment Summary: | Producing interval: 13126'-14200' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 13126 ft. | # Of Holes: | 198 | | Interval Bottom: | 14200 ft. | Hole Size: | 0.44 in. |
|
Formation CD-FH Formation Classification: OW Status: PR - 1/1/2019 Interval Top: 7585 ft. Interval Bottom: 16994 ft.| Completed Information for Formation CODELL-FORT HAYS | | 1st Production Date: | 11/16/2017 | Choke Size: | | | Formation Name: | CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/24/2017 | Treatment End Date: | 7/8/2017 | | Treatment Summary: | 48 stage plug and perf;
162882 total bbls fluid pumped: 154086 bbls fresh water, 8784 bbls recycled water, and 12 bbls 15% HCl acid pumped;
9599920 lbs of 30/50 proppant pumped. | | Total fluid used in treatment (bbls): | 162882 | Max pressure during treatment (psi): | 9084 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 48 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.92 | | Recycled water used in treatment (bbls): | 8784 | Total flowback volume recovered (bbls): | 1749 | | Fresh water used in treatment (bbls): | 154086 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9599920 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7348 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/17/2017 | Test Method: | | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 512 | | BBLS_OIL | 539 | | BTU_GAS | 1285 | | CALC_BBLS_H2O | 512 | | CALC_BBLS_OIL | 539 | | CALC_GOR | 996 | | CALC_MCF_GAS | 537 | | CASING_PRESS | 788 | | GRAVITY_OIL | 43 | | MCF_GAS | 537 | | TUBING_PRESS | 1538 |
| | Perforation Data: | | Interval Top: | 7585 ft. | # Of Holes: | 1729 | | Interval Bottom: | 16994 ft. | Hole Size: | 0.44 in. |
|
Formation CODL Formation Classification: OW Status: CM - 3/2/2018 Interval Top: 7585 ft. Interval Bottom: 16994 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/2/2018 | Treatment End Date: | N/A | | Treatment Summary: | Producing intervals: 7585'-13126'; 14200'-16994' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7585 ft. | # Of Holes: | 1531 | | Interval Bottom: | 16994 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5936 |
| Total Gas Produced (MCF) | 135563 |
| GOR | 22837 |
| GOR Determination | MCFE |
| Average BOE per Day | 80.175 |
| Average MCFE per Day | 465.051 |
| Federal Financial Assurance | i | |
|
|
