Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2024 Measured TD: 12266 ft. Vertical TD: 6262 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/13/2017 | | Proposed Top PZ Location: | Sec:7 Twp: 4N 62W | Footage: 501 FSL 1927 FWL | | Bottom Hole Location: | Sec:7 Twp: 4N 62W | Footage: 463 FNL 2263 FWL | | Proposed Depth/Form: | 12325 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 43 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1040, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12325 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 2429, Top: 0 ft., Bottom: 12325 ft. |
| | |

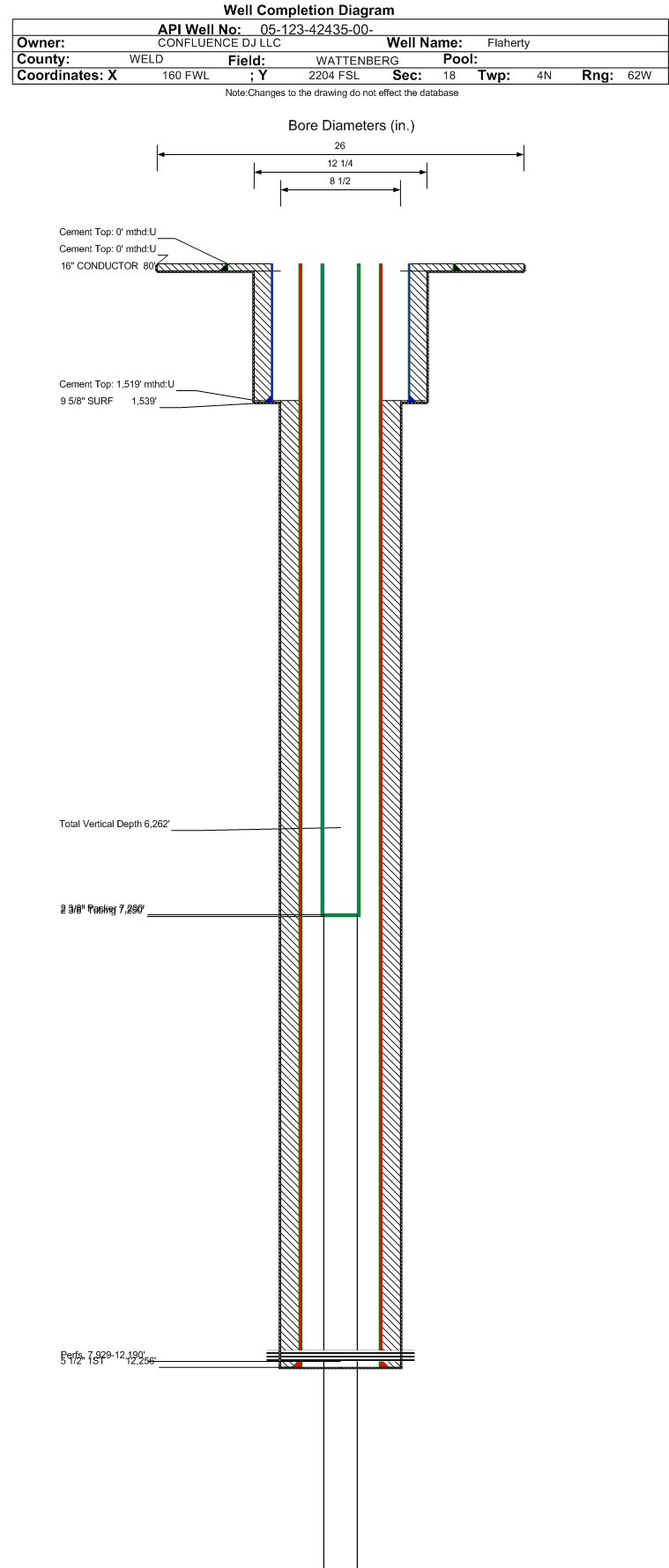

| Wellbore Completed | | Completion Date: | 10/10/2016 | | Spud Date: | 10/1/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 12266 ft. | Measured PB depth: | 12240 ft. | | True Vertical TD: | 6262 ft. | True Vertical PB depth: | 6262 ft. | | Top PZ Location: | Sec:7 Twp: 4N 62W | Footage: 501 FSL 1927 FWL | | Bottom Hole Location: | Sec:7 Twp: 4N 62W | Footage: 463 FNL 2263 FWL | | Log Types: | CBL, MWD, Mud,(Resistivity on 123-42434) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1539 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1539 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12256 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1995, Top: 1519 ft., Bottom: 12256 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 247 ft. | | | | | PARKMAN | 3730 ft. | | | | | SHARON SPRINGS | 7417 ft. | | | | | NIOBRARA | 7601 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2024 Interval Top: 7929 ft. Interval Bottom: 12190 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | HYDRAULIC FRACTURING | | Treatment Date: | 10/27/2016 | Treatment End Date: | 10/31/2016 | | Treatment Summary: | Niobrara was frac'd with 7,450,420 lbs White Sand 40/70, 1,020,220 lbs White sand 30/50, 235495 bbl slurry | | Total fluid used in treatment (bbls): | 235495 | Max pressure during treatment (psi): | 4987 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 24 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 18650 | | Fresh water used in treatment (bbls): | 235495 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 8470640 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 416 | | BBLS_OIL | 316 | | BTU_GAS | 1390 | | CALC_BBLS_H2O | 416 | | CALC_BBLS_OIL | 316 | | CALC_GOR | 566 | | CALC_MCF_GAS | 180 | | GRAVITY_OIL | 41 | | MCF_GAS | 180 | | TUBING_PRESS | 619 |
| | Perforation Data: | | Interval Top: | 7929 ft. | # Of Holes: | 0 | | Interval Bottom: | 12190 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 22189 |
| Total Gas Produced (MCF) | 43952 |
| GOR | 1980 |
| GOR Determination | BOE |
| Average BOE per Day | 81.762 |
| Average MCFE per Day | 474.232 |
| Federal Financial Assurance | i | |
|
|
