COGIS - WELL SCOUT CARD

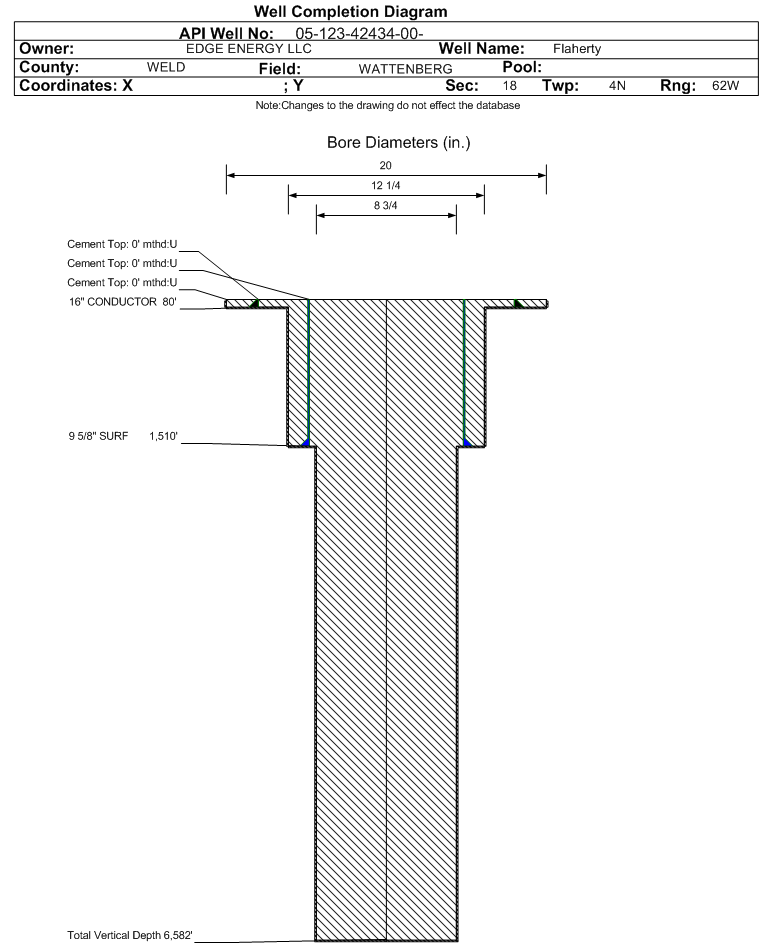

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-42434		Well Classification: OW Status: PR - 8/1/2024
Well Name/No:Flaherty #18-13-12NBH
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:BAYSWATER EXPLORATION & PRODUCTION LLC - 10261
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2024
FacilityID:443961LocationID:443962
County:WELD #123Location:NWSW 18 4N62W 6
Field:WATTENBERG - #90750Elevation:4546 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2174FSL  160 FWLLat/Long: 40.311195 / -104.376041Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.311190 / -104.376040Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 5/23/2016
End Date: 5/26/2016
Reported: 9/14/2016
Days to report: 111		Disclosure: Sidetrack #01
Start Date: 3/29/2024
End Date: 3/30/2024
Reported: 5/2/2024
Days to report: 33
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: STRT             Status: TA - 1/15/2025             Measured TD: 6591 ft.    Vertical TD: 6582 ft.

 Wellbore Data for Original WellboreWellbore Classification: STRT        TA - 1/15/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:11/13/2017
Proposed Top PZ Location:Sec:13 Twp: 4N 63W Footage: 2262 FSL  79 FEL
Bottom Hole Location:Sec:13 Twp: 4N 63W Footage: 2262 FSL  79 FEL
Proposed Depth/Form:6643 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:Not availableSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 100, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 466, Top: 0 ft., Bottom: 1550 ft.
Wellbore Completed
Completion Date:12/26/2015
Spud Date:12/19/2015Spud Date Is:ACTUAL
Measured TD:6591 ft.Measured PB depth:5169 ft.
True Vertical TD:6582 ft.True Vertical PB depth:5160 ft.
Top PZ Location:Sec:13 Twp: 4N 63WFootage: 2262 FSL  79 FEL
Bottom Hole Location:Sec:13 Twp: 4N 63WFootage: 2262 FSL  79 FEL
Log Types:Triple Combo, MUD
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 48, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1510 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 715, Top: 0 ft., Bottom: 1510 ft., Determination Method: CBL
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 1510 ft., Depth: 6591 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:String Type: OPEN HOLE , Top: 5169 ft., Depth: 6591 ft., Bottom: 6591 ft., Sacks: 647, Method:
Additional Cement:String Type: OPEN HOLE , Top: 5169 ft., Depth: 6591 ft., Bottom: 6591 ft., Sacks: 647, Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN3388 ft.3948 ft.NN
SUSSEX3948 ft.3982 ft.NN
SHARON SPRINGS6104 ft.6188 ft.NN
NIOBRARA6188 ft.6408 ft.ZN
FORT HAYS6408 ft.6462 ft.NN
CODELL6462 ft.6475 ft.NN
CARLILE6475 ft.NN

Formation NBRR                     Formation Classification:  OW                     Status:  TA - 1/15/2025                 Interval Top: 6606 ft.    Interval Bottom: 10754 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:5/27/2016Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Type:HYDRAULIC FRACTURING
Treatment Date:5/24/2021Treatment End Date:5/27/2016
Treatment Summary:Slickwater Frac, pumped 6,424,040 lbs of white sand and 170,622 bbls fresh water.
Total fluid used in treatment (bbls):170646Max pressure during treatment (psi):5513
Total gas used in treatment (mcf):0Fluid density (lbs/gal):37.65
Type Of gas:Number Of staged intervals:24
Total acid used in treatment (bbls):24Min frac gradient (psi/ft):0.93
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):24075
Fresh water used in treatment (bbls):170622Disposition method For flowback:DISPOSAL
Total proppant used (lbs):6424040Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6606 ft.# Of Holes:846
Interval Bottom:10754 ft.Hole Size:0.42 in.

Sidetrack #01             Wellbore Classification: OW             Status: PR - 8/1/2024             Measured TD: 10837 ft.    Vertical TD: 6268 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: OW        PR - 8/1/2024
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:11/15/2017
Proposed Top PZ Location:Sec:13 Twp: 4N 63W Footage: 2264 FSL  460 FEL
Bottom Hole Location:Sec:13 Twp: 4N 63W Footage: 2264 FSL  460 FWL
Proposed Depth/Form:10880 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 100, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 466, Top: 0 ft., Bottom: 1550 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 10880 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 1630, Top: 0 ft., Bottom: 10880 ft.
Wellbore Completed
Completion Date:1/3/2016
Spud Date:12/19/2015Spud Date Is:ACTUAL
Measured TD:10837 ft.Measured PB depth:10821 ft.
True Vertical TD:6268 ft.True Vertical PB depth:6268 ft.
Top PZ Location:Sec:13 Twp: 4N 63WFootage: 2267 FSL  513 FEL
Bottom Hole Location:Sec:13 Twp: 4N 63WFootage: 2306 FSL  475 FWL
Log Types:Mud, MWD, CBL
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 48, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1510 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 815, Top: 0 ft., Bottom: 1510 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 10822 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 1589, Top: 0 ft., Bottom: 10822 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SHARON SPRINGS6104 ft.6266 ft.NN
NIOBRARA6266 ft.NN

Formation NBRR                     Formation Classification:  OW                     Status:  PR - 8/1/2024                  Interval Top: 6606 ft.    Interval Bottom: 10754 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:6/20/2016Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:5/24/2016Treatment End Date:5/27/2016
Treatment Summary:24 stages: Slickwater Frac, pumped 6,424,040 lbs of white sand and 170,622 bbls fresh water.
Total fluid used in treatment (bbls):170646Max pressure during treatment (psi):5513
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:24
Total acid used in treatment (bbls):24Min frac gradient (psi/ft):0.93
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):24075
Fresh water used in treatment (bbls):170622Disposition method For flowback:DISPOSAL
Total proppant used (lbs):6424040Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 300
BBLS_OIL 400
BTU_GAS 1283
CALC_BBLS_H2O 300
CALC_BBLS_OIL 400
CALC_GOR 1246
CALC_MCF_GAS 295
CASING_PRESS 918
GRAVITY_OIL 38
MCF_GAS 295
Perforation Data:
Interval Top:6606 ft.# Of Holes:846
Interval Bottom:10754 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)14812
Total Gas Produced (MCF)25758
GOR1738
GOR DeterminationBOE
Average BOE per Day52.801
Average MCFE per Day306.245

 Federal Financial Assurance  i

 Tribal Well  i No
