Wellbore #00 Wellbore Classification: OW Status: PR - 8/1/2017 Measured TD: 13715 ft. Vertical TD: 5999 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 8/1/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 6/13/2017 | | Proposed Top PZ Location: | Sec:7 Twp: 10N 57W | Footage: 2526 FNL 955 FWL | | Bottom Hole Location: | Sec:6 Twp: 10N 57W | Footage: 558 FNL 998 FWL | | Proposed Depth/Form: | 13579 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-508 , Unit Acreage: 960, Drill Unit: N/2 S7, All S6 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 179, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1830 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 711, Top: 0 ft., Bottom: 1830 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 13579 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1980, Top: 0 ft., Bottom: 13579 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5546 ft., Depth: 13475 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

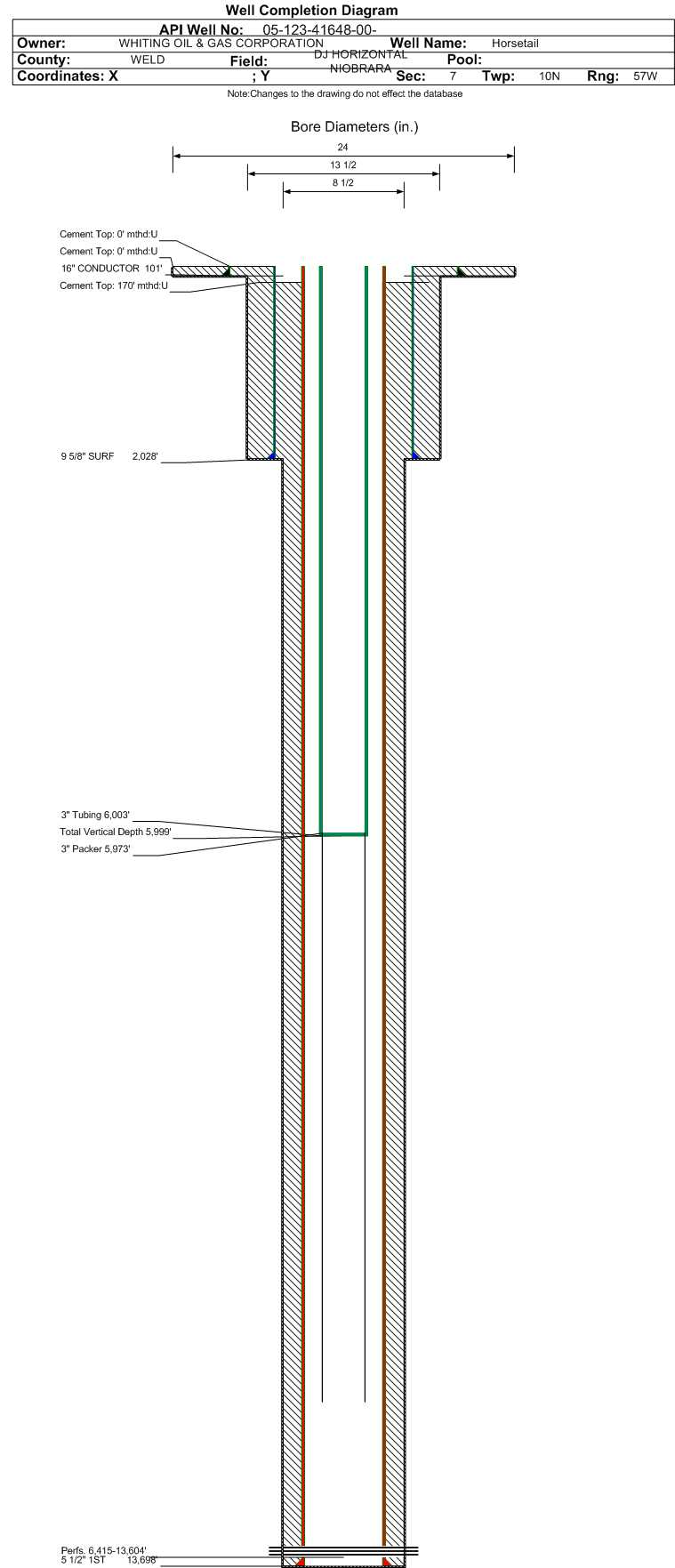

| Wellbore Completed | | Completion Date: | 3/1/2016 | | Spud Date: | 2/26/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 13715 ft. | Measured PB depth: | 13649 ft. | | True Vertical TD: | 5999 ft. | True Vertical PB depth: | 6000 ft. | | Top PZ Location: | Sec:7 Twp: 10N 57W | Footage: 2526 FNL 955 FWL | | Bottom Hole Location: | Sec:6 Twp: 10N 57W | Footage: 558 FNL 998 FWL | | Log Types: | LWD/MWD, Mud, CBL, (NEU in API 123-41643) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 101 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 101 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2028 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 805, Top: 0 ft., Bottom: 2028 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13698 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2280, Top: 170 ft., Bottom: 13698 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1750 ft. | | N | N | | HYGIENE | 3601 ft. | | N | N | | SHARON SPRINGS | 5695 ft. | | N | N | | NIOBRARA | 5707 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 9/3/2017 Interval Top: 6415 ft. Interval Bottom: 13604 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/7/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/5/2017 | Treatment End Date: | 4/10/2017 | | Treatment Summary: | 30 Stage Plug & Perf 929863lbs # 100 Mesh, 3988542lbs # Premium White, 40/70, 214 bbls 15% HCl, 181663 bbls slickwater. | | Total fluid used in treatment (bbls): | 181878 | Max pressure during treatment (psi): | 7621 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 30 | | Total acid used in treatment (bbls): | 214 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 4792 | | Fresh water used in treatment (bbls): | 181663 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4918405 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 3 in. | Tubing Setting Depth: | 6003 ft. | | Tubing Packer Depth: | 5993 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/3/2017 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 783 | | BBLS_OIL | 198 | | BTU_GAS | 1401 | | CALC_BBLS_H2O | 783 | | CALC_BBLS_OIL | 198 | | CALC_GOR | 505 | | CALC_MCF_GAS | 100 | | CASING_PRESS | 1040 | | GRAVITY_OIL | 34 | | MCF_GAS | 100 | | TUBING_PRESS | 430 |
| | Perforation Data: | | Interval Top: | 6415 ft. | # Of Holes: | 1211 | | Interval Bottom: | 13604 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1654 |
| Total Gas Produced (MCF) | 12920 |
| GOR | 7811 |
| GOR Determination | BOE |
| Average BOE per Day | 10.622 |
| Average MCFE per Day | 61.627 |
| Federal Financial Assurance | i | |
|
|
