Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2025 Measured TD: 14041 ft. Vertical TD: 6882 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/2/2017 | | Proposed Top PZ Location: | Sec:10 Twp: 5N 65W | Footage: 570 FSL 707 FEL | | Bottom Hole Location: | Sec:9 Twp: 5N 65W | Footage: 563 FSL 2168 FEL | | Proposed Depth/Form: | 14053 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 240, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 333, Top: 0 ft., Bottom: 750 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7384 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 578, Top: 0 ft., Bottom: 7384 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6684 ft., Depth: 14053 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 566, Top: 6684 ft., Bottom: 14053 ft. |
| | |

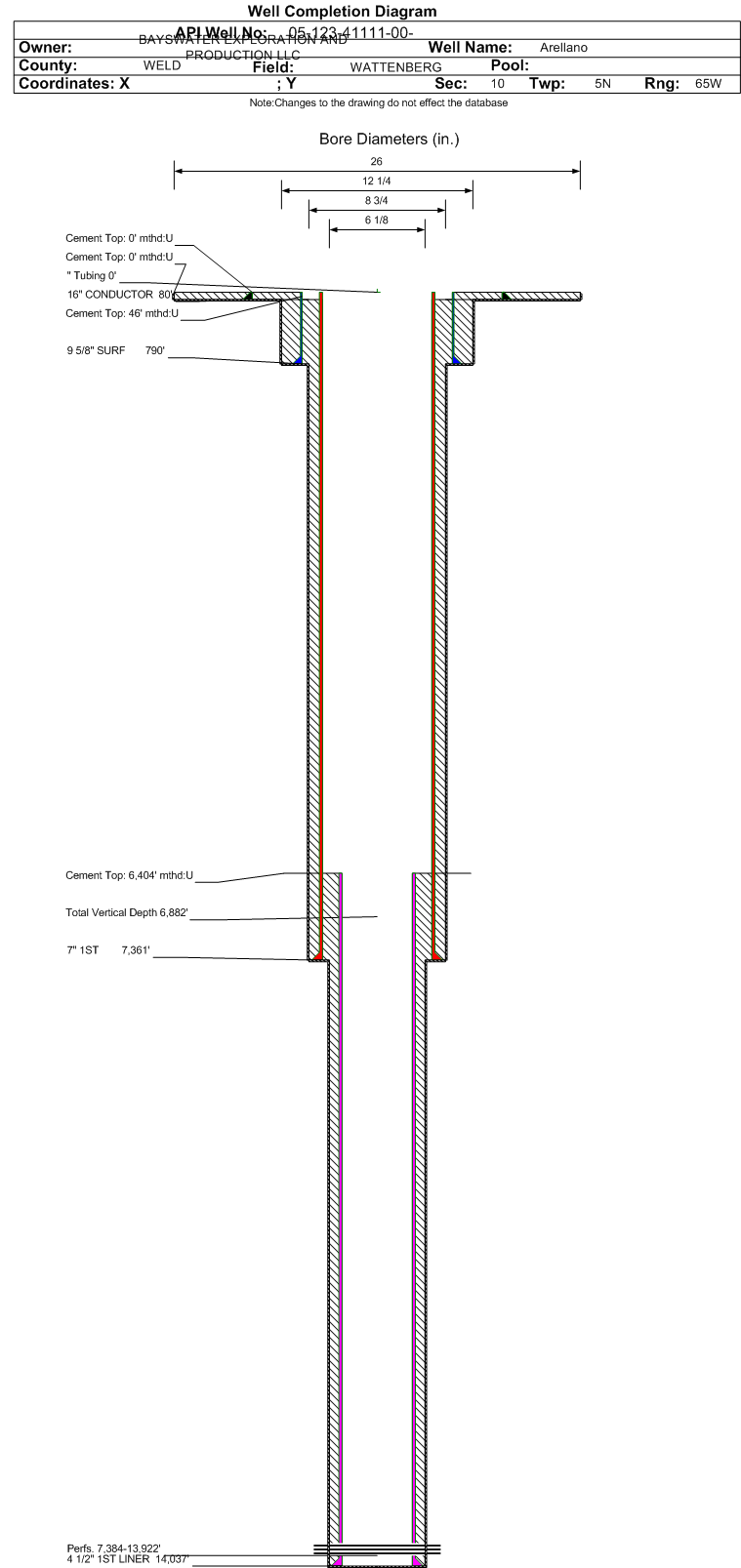

| Wellbore Completed | | Completion Date: | 6/26/2015 | | Spud Date: | 3/31/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 14041 ft. | Measured PB depth: | 13989 ft. | | True Vertical TD: | 6882 ft. | True Vertical PB depth: | 6882 ft. | | Top PZ Location: | Sec:10 Twp: 5N 65W | Footage: 570 FSL 707 FEL | | Bottom Hole Location: | Sec:9 Twp: 5N 65W | Footage: 563 FSL 2168 FEL | | Log Types: | MWD, Mud, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 43 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 790 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 790 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7361 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 46 ft., Bottom: 7361 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6404 ft., Depth: 14037 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 6404 ft., Bottom: 14037 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3629 ft. | | N | N | | SUSSEX | 4369 ft. | 4490 ft. | N | N | | SHARON SPRINGS | 6710 ft. | | N | N | | NIOBRARA | 6794 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 12/1/2025 Interval Top: 7384 ft. Interval Bottom: 13922 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 4/24/2016 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/27/2016 | Treatment End Date: | 2/26/2016 | | Treatment Summary: | Frac 43 stages (plug and perf) with 135,186 bbls hybrid fluid (slickwater and crosslink) 8,920,160 lbs of sand
| | Total fluid used in treatment (bbls): | 135186 | Max pressure during treatment (psi): | 8488 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 43 | | Total acid used in treatment (bbls): | 562 | Min frac gradient (psi/ft): | 0.98 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 134624 | Disposition method For flowback: | | | Total proppant used (lbs): | 8920160 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/27/2016 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 138 | | BBLS_OIL | 524 | | BTU_GAS | 1306 | | CALC_BBLS_H2O | 138 | | CALC_BBLS_OIL | 524 | | CALC_GOR | 4384 | | CALC_MCF_GAS | 2297 | | CASING_PRESS | 2480 | | GRAVITY_OIL | 54 | | MCF_GAS | 2297 |
| | Perforation Data: | | Interval Top: | 7384 ft. | # Of Holes: | 1204 | | Interval Bottom: | 13922 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 318 |
| Total Gas Produced (MCF) | 3932 |
| GOR | 12364 |
| GOR Determination | BOE |
| Average BOE per Day | 2.677 |
| Average MCFE per Day | 15.527 |
| Federal Financial Assurance | i | |
|
|
