Wellbore #00 Wellbore Classification: OW Status: PR - 2/1/2018 Measured TD: 13193 ft. Vertical TD: 7503 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 2/1/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/14/2017 | | Proposed Top PZ Location: | Sec:10 Twp: 2N 67W | Footage: 50 FNL 700 FEL | | Bottom Hole Location: | Sec:10 Twp: 2N 67W | Footage: 110 FSL 788 FEL | | Proposed Depth/Form: | 13128 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 240, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 1133 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13131 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1528, Top: 0 ft., Bottom: 13131 ft. |
| | |

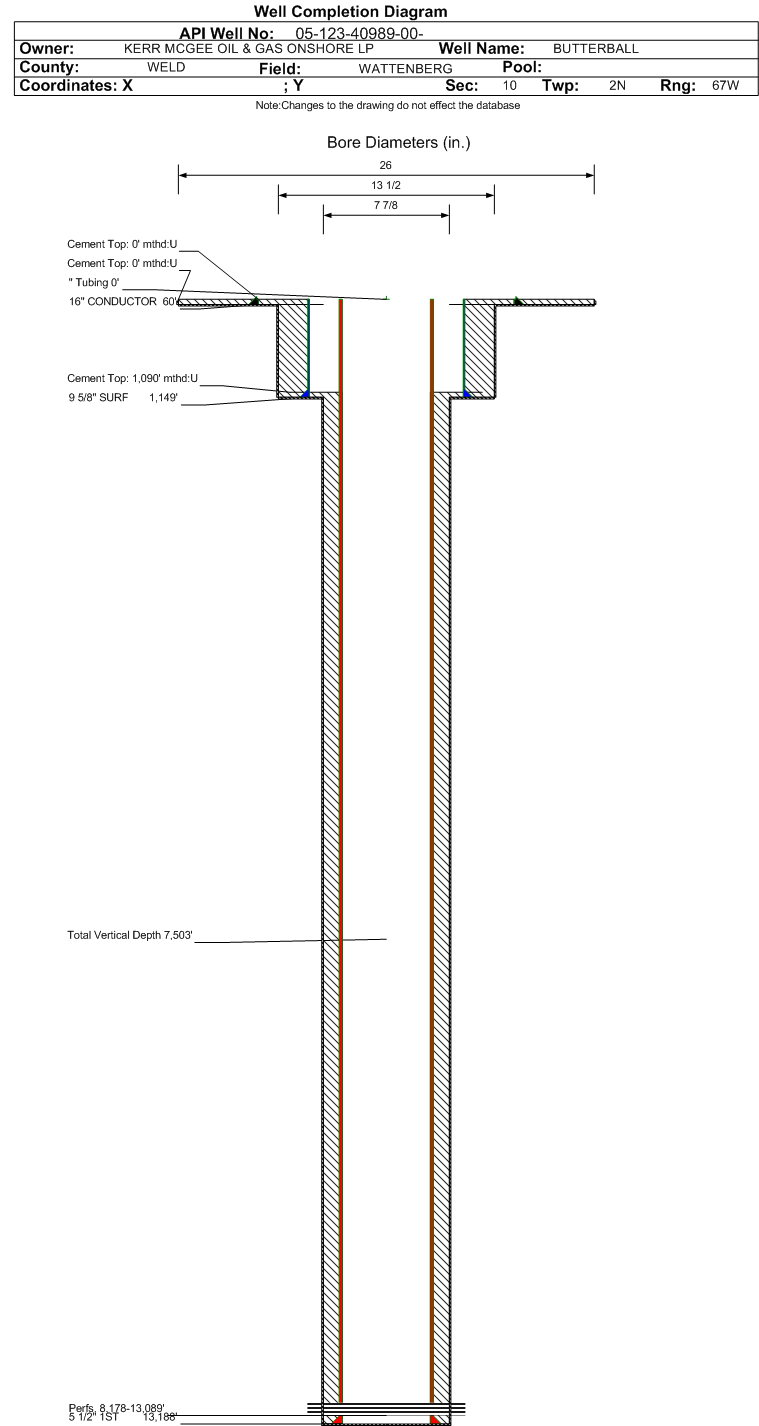

| Wellbore Completed | | Completion Date: | 4/6/2015 | | Spud Date: | 2/12/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 13193 ft. | Measured PB depth: | 13099 ft. | | True Vertical TD: | 7503 ft. | True Vertical PB depth: | 7504 ft. | | Top PZ Location: | Sec:10 Twp: 2N 67W | Footage: 153 FNL 745 FEL | | Bottom Hole Location: | Sec:10 Twp: 2N 67W | Footage: 111 FSL 780 FEL | | Log Types: | CBL, LWD, Mud, (IND in 123-10810, 123-20955, 123-33788, 123-33784) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 48, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1149 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 428, Top: 0 ft., Bottom: 1149 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13188 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1300, Top: 1090 ft., Bottom: 13188 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4551 ft. | | | | | SHANNON | 4914 ft. | | | | | SHARON SPRINGS | 7369 ft. | | | | | NIOBRARA | 7473 ft. | | | | | FORT HAYS | 7924 ft. | | | | | CODELL | 8051 ft. | | | | | CARLILE | 12453 ft. | | | |
Formation CLCDFH Formation Classification: OW Status: PR - 2/1/2018 Interval Top: 8178 ft. Interval Bottom: 13089 ft.| Completed Information for Formation CARLILE-CODELL-FORT HAYS | | 1st Production Date: | 9/5/2015 | Choke Size: | | | Formation Name: | CARLILE-CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/15/2015 | Treatment End Date: | 8/20/2015 | | Treatment Summary: | "PERF AND FRAC FROM 8178-13,089.
120 BBL ACID, 86,505 BBL SLICKWATER, 2,923 BBL WATER, - 89,548 BBL TOTAL FLUID
2,780,700# 40/70 OTTAWA/ST. PETERS, 2,780,700# TOTAL SAND.
ENTERED CODELL 8178-12,055; 12,104-12,453; 12,654-13,089
FT. HAYS 12,055-12,104
CARLILE 12,453-12,654
THIS IS A DESIGNATED SOURCE OF SUPPLY WELL;
(SEE ATTACHMENT)
| | Total fluid used in treatment (bbls): | 89548 | Max pressure during treatment (psi): | 7153 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | 120 | Min frac gradient (psi/ft): | 0.82 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1244 | | Fresh water used in treatment (bbls): | 89428 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2780700 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/15/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 144 | | BBLS_OIL | 187 | | BTU_GAS | 1406 | | CALC_BBLS_H2O | 144 | | CALC_BBLS_OIL | 187 | | CALC_GOR | 1658 | | CALC_MCF_GAS | 310 | | CASING_PRESS | 650 | | GRAVITY_OIL | 51 | | MCF_GAS | 310 |
| | Perforation Data: | | Interval Top: | 8178 ft. | # Of Holes: | 380 | | Interval Bottom: | 13089 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1876 |
| Total Gas Produced (MCF) | 43802 |
| GOR | 23348 |
| GOR Determination | MCFE |
| Average BOE per Day | 25.825 |
| Average MCFE per Day | 149.769 |
| Federal Financial Assurance | i | |
|
|
