Wellbore #00 Wellbore Classification: OW Status: PR - 12/25/2015 Measured TD: 12694 ft. Vertical TD: 7028 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/25/2015 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/8/2017 | | Proposed Top PZ Location: | Sec:28 Twp: 3N 65W | Footage: 51 FNL 1301 FEL | | Bottom Hole Location: | Sec:28 Twp: 3N 65W | Footage: 50 FSL 1399 FEL | | Proposed Depth/Form: | 12550 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1117 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 1117 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7365 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 780, Top: 0 ft., Bottom: 7365 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6367 ft., Depth: 12550 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

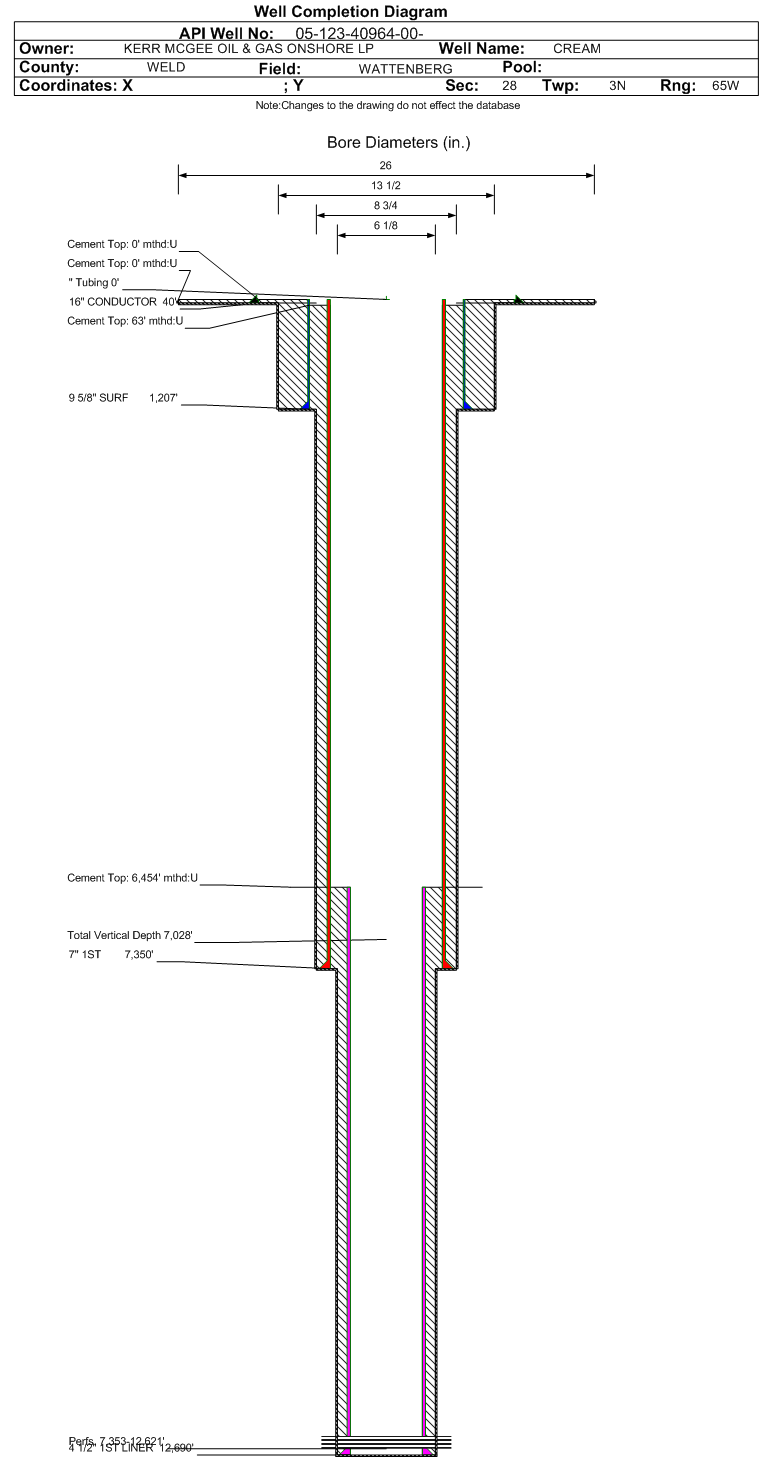

| Wellbore Completed | | Completion Date: | 4/26/2015 | | Spud Date: | 3/3/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 12694 ft. | Measured PB depth: | 12640 ft. | | True Vertical TD: | 7028 ft. | True Vertical PB depth: | 7028 ft. | | Top PZ Location: | Sec:21 Twp: 3N 65W | Footage: 104 FSL 1299 FEL | | Bottom Hole Location: | Sec:28 Twp: 3N 65W | Footage: 54 FSL 1397 FEL | | Log Types: | CBL, GR | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1207 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 466, Top: 0 ft., Bottom: 1207 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7350 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 670, Top: 63 ft., Bottom: 7350 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6454 ft., Depth: 12690 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 6454 ft., Bottom: 12690 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4292 ft. | | | | | SHARON SPRINGS | 7029 ft. | | | | | NIOBRARA | 7159 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 12/25/2015 Interval Top: 7353 ft. Interval Bottom: 12621 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/20/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/5/2015 | Treatment End Date: | 12/11/2015 | | Treatment Summary: | "PERF AND FRAC FROM 7353-12,621.
393 BBL ACID, 141,890 BBL SLICKWATER, 3,142 BBL WATER, - 145,425 BBL TOTAL FLUID
615,510# 100 MESH OTTAWA/ST. PETERS, 3,772,330# 40/70 OTTAWA/ST. PETERS, - 4,387,840# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 145425 | Max pressure during treatment (psi): | 7648 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 26 | | Total acid used in treatment (bbls): | 393 | Min frac gradient (psi/ft): | 1.00 | | Recycled water used in treatment (bbls): | 1180 | Total flowback volume recovered (bbls): | 753 | | Fresh water used in treatment (bbls): | 143852 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 4387840 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/25/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 227 | | BBLS_OIL | 54 | | BTU_GAS | 1349 | | CALC_BBLS_H2O | 227 | | CALC_BBLS_OIL | 54 | | CALC_GOR | 6074 | | CALC_MCF_GAS | 328 | | CASING_PRESS | 650 | | GRAVITY_OIL | 56 | | MCF_GAS | 328 |
| | Perforation Data: | | Interval Top: | 7353 ft. | # Of Holes: | 424 | | Interval Bottom: | 12621 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2254 |
| Total Gas Produced (MCF) | 45540 |
| GOR | 20204 |
| GOR Determination | MCFE |
| Average BOE per Day | 27.586 |
| Average MCFE per Day | 159.989 |
| Federal Financial Assurance | i | |
|
|
