Wellbore #00 Wellbore Classification: OW Status: PR - 11/1/2025 Measured TD: 12719 ft. Vertical TD: 7015 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/8/2017 | | Proposed Top PZ Location: | Sec:28 Twp: 3N 65W | Footage: 50 FNL 309 FEL | | Bottom Hole Location: | Sec:28 Twp: 3N 65W | Footage: 50 FSL 325 FEL | | Proposed Depth/Form: | 12558 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1114 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 1114 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7369 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 780, Top: 0 ft., Bottom: 7369 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6373 ft., Depth: 12558 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

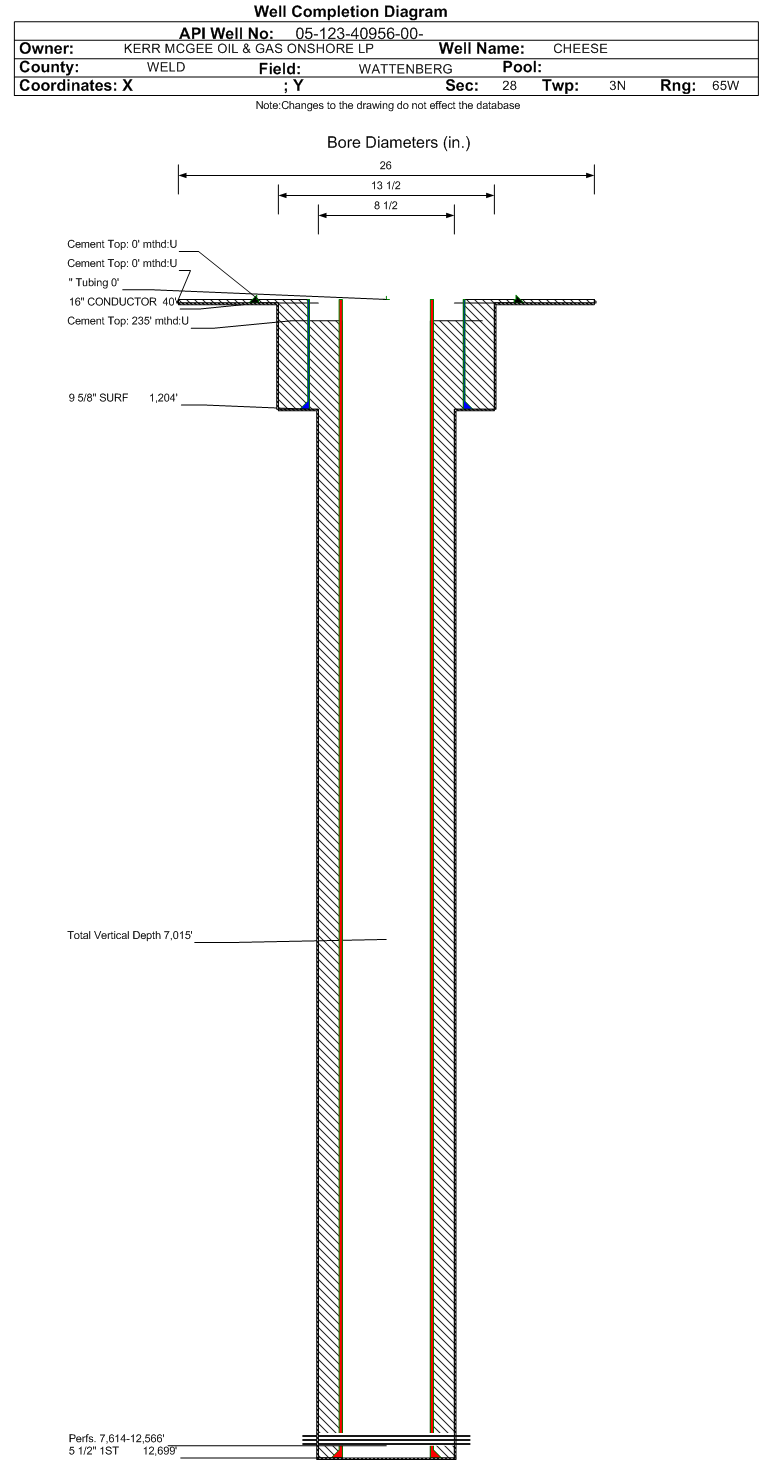

| Wellbore Completed | | Completion Date: | 5/31/2015 | | Spud Date: | 3/14/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 12719 ft. | Measured PB depth: | 12604 ft. | | True Vertical TD: | 7015 ft. | True Vertical PB depth: | 7018 ft. | | Top PZ Location: | Sec:28 Twp: 3N 65W | Footage: 128 FNL 314 FEL | | Bottom Hole Location: | Sec:28 Twp: 3N 65W | Footage: 48 FSL 316 FEL | | Log Types: | CBL, GR | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1204 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 493, Top: 0 ft., Bottom: 1204 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12699 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1780, Top: 235 ft., Bottom: 12699 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4254 ft. | | | | | SHARON SPRINGS | 6987 ft. | | | | | NIOBRARA | 7087 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 11/1/2025 Interval Top: 7614 ft. Interval Bottom: 12566 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/6/2016 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/21/2015 | Treatment End Date: | 12/29/2015 | | Treatment Summary: | "PERF AND FRAC FROM 7614-12,566.
381 BBL ACID, 114,149 BBL SLICKWATER, 4,569 BBL WATER, - 119,099 BBL TOTAL FLUID
480,650# 100 MESH OTTAWA/ST. PETERS, 2,907,850# 40/70 OTTAWA/ST. PETERS, - 3,388,500# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 119099 | Max pressure during treatment (psi): | 7798 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 24 | | Total acid used in treatment (bbls): | 381 | Min frac gradient (psi/ft): | 0.98 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1805 | | Fresh water used in treatment (bbls): | 118718 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3388500 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/14/2016 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 185 | | BBLS_OIL | 112 | | BTU_GAS | 1340 | | CALC_BBLS_H2O | 185 | | CALC_BBLS_OIL | 112 | | CALC_GOR | 5759 | | CALC_MCF_GAS | 645 | | CASING_PRESS | 2000 | | GRAVITY_OIL | 56 | | MCF_GAS | 645 |
| | Perforation Data: | | Interval Top: | 7614 ft. | # Of Holes: | 576 | | Interval Bottom: | 12566 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2411 |
| Total Gas Produced (MCF) | 10874 |
| GOR | 4510 |
| GOR Determination | BOE |
| Average BOE per Day | 11.717 |
| Average MCFE per Day | 67.974 |
| Federal Financial Assurance | i | |
|
|
