Wellbore #00 Wellbore Classification: OW Status: SI - 3/1/2024 Measured TD: 14710 ft. Vertical TD: 7395 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 3/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/25/2019 | | Proposed Top PZ Location: | Sec:26 Twp: 2N 68W | Footage: 689 FSL 2501 FEL | | Bottom Hole Location: | Sec:23 Twp: 2N 68W | Footage: 2173 FSL 2463 FEL | | Proposed Depth/Form: | 14780 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 480, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2104 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 891, Top: 0 ft., Bottom: 2104 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 14780 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2355, Top: 0 ft., Bottom: 14780 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 15048 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 404, Top: 7880 ft., Bottom: 15048 ft. |
| | |

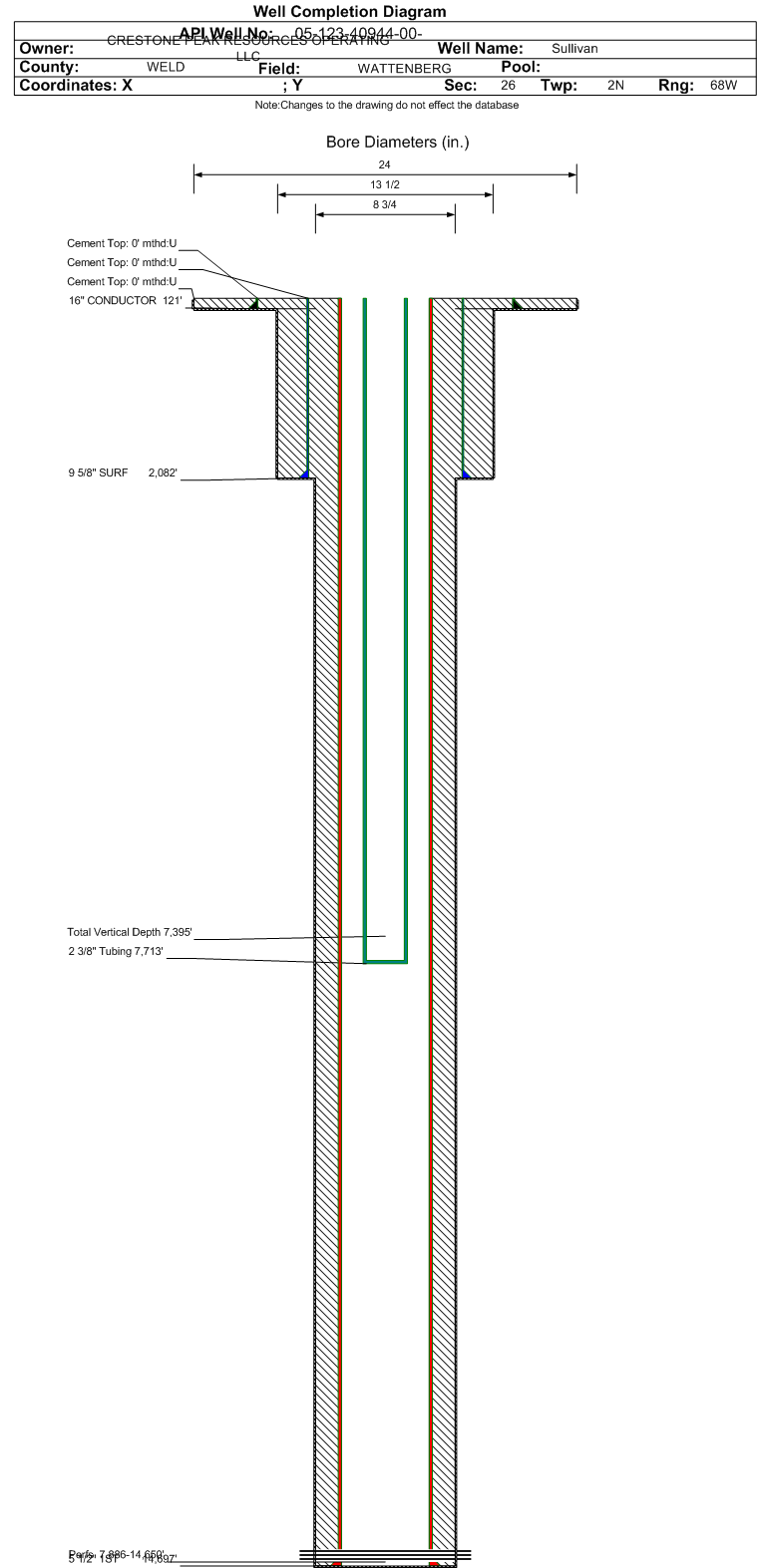

| Wellbore Completed | | Completion Date: | 1/29/2018 | | Spud Date: | 8/23/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 14710 ft. | Measured PB depth: | 14664 ft. | | True Vertical TD: | 7395 ft. | True Vertical PB depth: | 7395 ft. | | Top PZ Location: | Sec:26 Twp: 2N 68W | Footage: 689 FSL 2501 FEL | | Bottom Hole Location: | Sec:23 Twp: 2N 68W | Footage: 2173 FSL 2463 FEL | | Log Types: | Mud Log, MWD/LWD, CBL, (Pulsed Neutron in 123-40939) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 121 ft., Weight: 52.78 , Citings Type: ACTUAL | | Cement: | Sacks: 114, Top: 0 ft., Bottom: 121 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2082 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 785, Top: 0 ft., Bottom: 2082 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 14697 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2285, Top: 0 ft., Bottom: 14697 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4573 ft. | | | | | SHANNON | 5180 ft. | | | | | TEEPEE BUTTES | 6691 ft. | | | | | SHARON SPRINGS | 7708 ft. | | | | | NIOBRARA | 7875 ft. | | | |
Formation NBRR Formation Classification: OW Status: SI - 3/1/2024 Interval Top: 7886 ft. Interval Bottom: 14650 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 7/31/2018 | Choke Size: | 20.000 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/1/2018 | Treatment End Date: | 5/9/2018 | | Treatment Summary: | 255950 bbl water, 249 bbl additives (FRP-4CS, ACI-97 and ASF-67) and 49 bbl HCL in a 35 stage frac with 5,858,015 lbs of silica quartz proppant
| | Total fluid used in treatment (bbls): | 256248 | Max pressure during treatment (psi): | 8677 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 35 | | Total acid used in treatment (bbls): | 49 | Min frac gradient (psi/ft): | 0.84 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 2088 | | Fresh water used in treatment (bbls): | 256199 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5858015 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7713 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 249 | | BBLS_OIL | 941 | | BTU_GAS | 1346 | | CALC_BBLS_H2O | 249 | | CALC_BBLS_OIL | 941 | | CALC_GOR | 1193 | | CALC_MCF_GAS | 1123 | | CASING_PRESS | 2387 | | GRAVITY_OIL | 45 | | MCF_GAS | 1123 | | TUBING_PRESS | 2163 |
| | Perforation Data: | | Interval Top: | 7886 ft. | # Of Holes: | 805 | | Interval Bottom: | 14650 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
02/29/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
02/29/2024 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
