Wellbore #00 Wellbore Classification: OW Status: PR - 9/1/2025 Measured TD: 14771 ft. Vertical TD: 7607 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/25/2019 | | Proposed Top PZ Location: | Sec:26 Twp: 2N 68W | Footage: 679 FSL 185 FEL | | Bottom Hole Location: | Sec:23 Twp: 2N 68W | Footage: 2172 FSL 67 FEL | | Proposed Depth/Form: | 14824 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBFHC , Formation: NIOBRARA-FT HAYS-CODELL , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2061 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 875, Top: 0 ft., Bottom: 2061 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 14824 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2362, Top: 0 ft., Bottom: 14824 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 14847 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 404, Top: 7683 ft., Bottom: 14847 ft. |
| | |

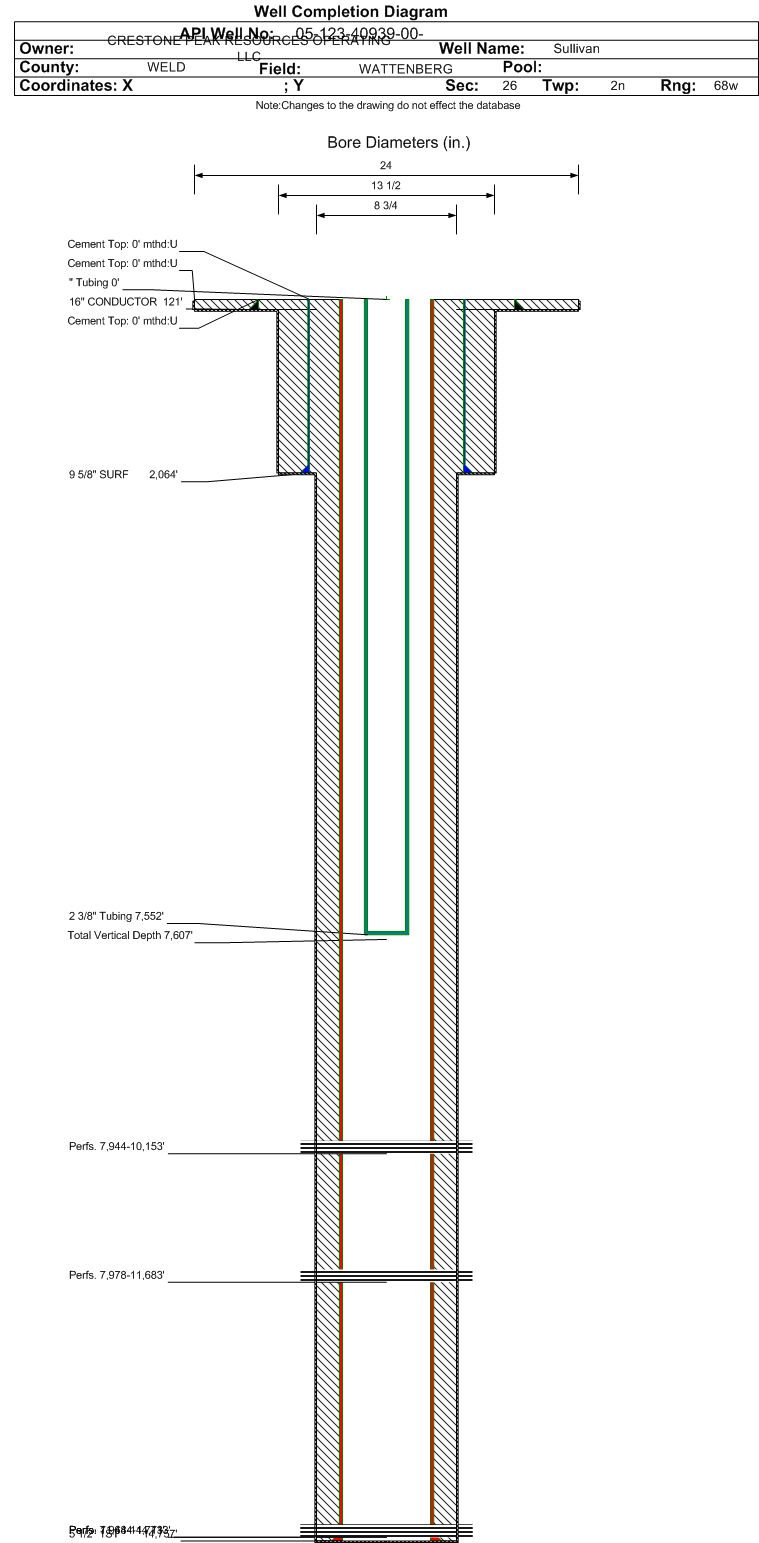

| Wellbore Completed | | Completion Date: | 12/9/2018 | | Spud Date: | 9/2/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 14771 ft. | Measured PB depth: | 14727 ft. | | True Vertical TD: | 7607 ft. | True Vertical PB depth: | 7607 ft. | | Top PZ Location: | Sec:26 Twp: 2N 68W | Footage: 679 FSL 185 FEL | | Bottom Hole Location: | Sec:23 Twp: 2N 68W | Footage: 2172 FSL 67 FEL | | Log Types: | Mud Log, MWD/LWD, CBL, Pulsed Neutron | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 121 ft., Weight: 52.78 , Citings Type: ACTUAL | | Cement: | Sacks: 114, Top: 0 ft., Bottom: 121 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2064 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 779, Top: 0 ft., Bottom: 2064 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 14757 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2276, Top: 0 ft., Bottom: 14757 ft., Determination Method: VISU | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4464 ft. | | | | | SHANNON | 5011 ft. | | | | | TEEPEE BUTTES | 6475 ft. | | | | | SHARON SPRINGS | 7306 ft. | | | | | NIOBRARA | 7411 ft. | | | | | FORT HAYS | 7978 ft. | | | | | CODELL | 11684 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 1/16/2019 Interval Top: 11684 ft. Interval Bottom: 14713 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 1/16/2019 | Treatment End Date: | N/A | | Treatment Summary: | 11684-14713 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 11684 ft. | # Of Holes: | 577 | | Interval Bottom: | 14713 ft. | Hole Size: | |
|
Formation FTHYS Formation Classification: OW Status: CM - 1/16/2019 Interval Top: 7978 ft. Interval Bottom: 11683 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 1/16/2019 | Treatment End Date: | N/A | | Treatment Summary: | 7978-9899, 10154-11683 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 7978 ft. | # Of Holes: | 577 | | Interval Bottom: | 11683 ft. | Hole Size: | |
|
Formation NBFHC Formation Classification: OW Status: PR - 9/1/2025 Interval Top: 7944 ft. Interval Bottom: 14713 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 7/31/2018 | Choke Size: | 18.000 in. | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/28/2018 | Treatment End Date: | 6/5/2018 | | Treatment Summary: | 151862 bbl water and 144 bbl additives (FRP-4CS) in a 26 stage frac with 3,968,240 lb of silica quartz proppant | | Total fluid used in treatment (bbls): | 152006 | Max pressure during treatment (psi): | 9040 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 26 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.89 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 2045 | | Fresh water used in treatment (bbls): | 152006 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3968240 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7552 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 442 | | BBLS_OIL | 897 | | BTU_GAS | 1333 | | CALC_BBLS_H2O | 442 | | CALC_BBLS_OIL | 897 | | CALC_GOR | 1657 | | CALC_MCF_GAS | 1486 | | CASING_PRESS | 2299 | | GRAVITY_OIL | 45 | | MCF_GAS | 1486 | | TUBING_PRESS | 1671 |
| | Perforation Data: | | Interval Top: | 7944 ft. | # Of Holes: | 577 | | Interval Bottom: | 14713 ft. | Hole Size: | 42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 1/16/2019 Interval Top: 7944 ft. Interval Bottom: 10153 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 1/16/2019 | Treatment End Date: | N/A | | Treatment Summary: | 7944-7977, 9948-10153 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7944 ft. | # Of Holes: | 577 | | Interval Bottom: | 10153 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2610 |
| Total Gas Produced (MCF) | 49155 |
| GOR | 18833 |
| GOR Determination | MCFE |
| Average BOE per Day | 30.210 |
| Average MCFE per Day | 175.200 |
| Federal Financial Assurance | i | |
|
|
