Wellbore #00 Wellbore Classification: OW Status: PR - 7/1/2018 Measured TD: 14808 ft. Vertical TD: 7605 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/1/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/25/2019 | | Proposed Top PZ Location: | Sec:26 Twp: 2N 68W | Footage: 480 FSL 1327 FEL | | Bottom Hole Location: | Sec:23 Twp: 2N 68W | Footage: 21744 FSL 1455 FEL | | Proposed Depth/Form: | 14886 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBFHC , Formation: NIOBRARA-FT HAYS-CODELL , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2065 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 877, Top: 0 ft., Bottom: 2065 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 14886 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2372, Top: 0 ft., Bottom: 14886 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 14685 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 405, Top: 7514 ft., Bottom: 14685 ft. |
| | |

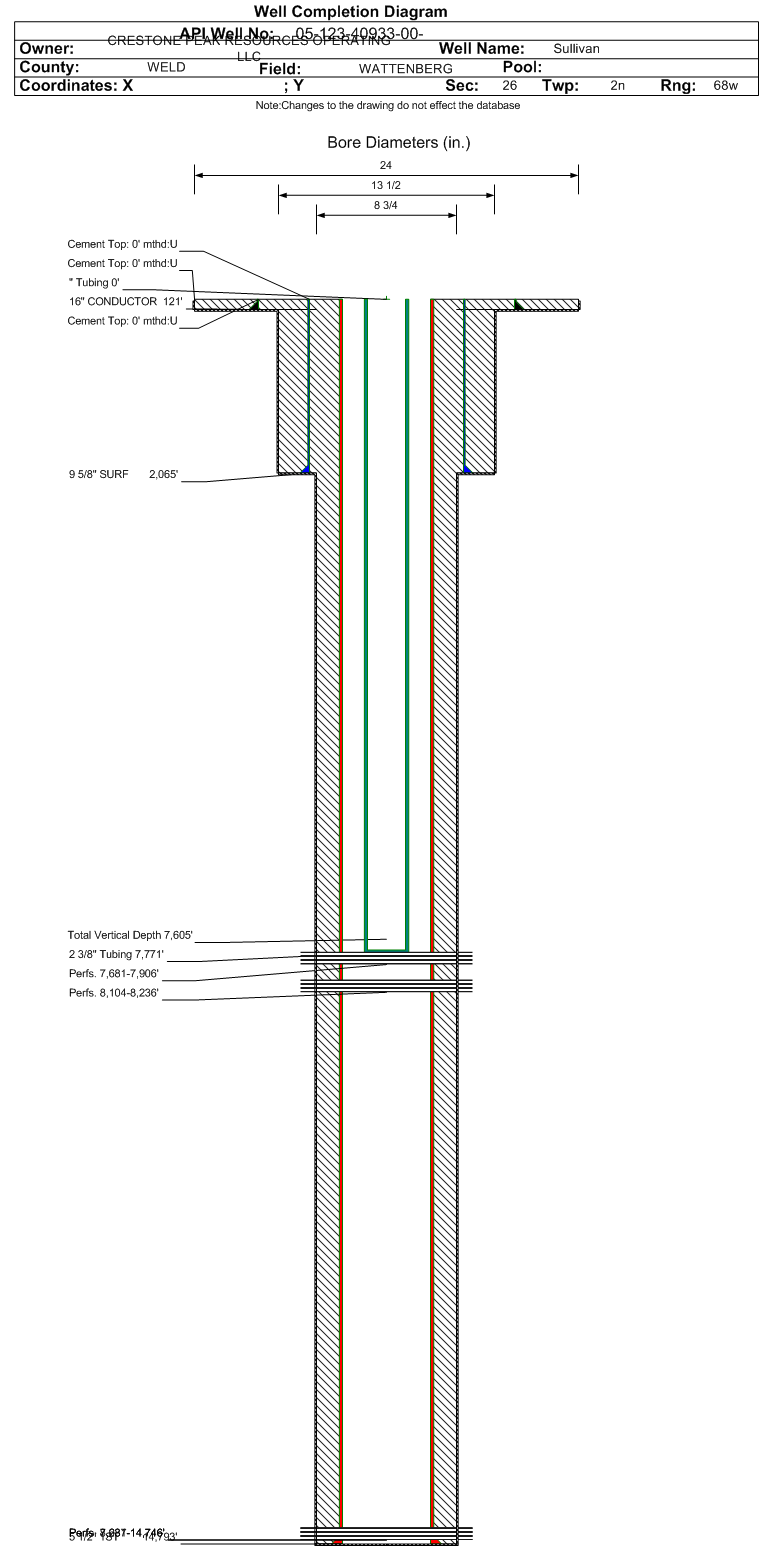

| Wellbore Completed | | Completion Date: | 1/5/2018 | | Spud Date: | 8/27/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 14808 ft. | Measured PB depth: | 14760 ft. | | True Vertical TD: | 7605 ft. | True Vertical PB depth: | 7605 ft. | | Top PZ Location: | Sec:26 Twp: 2N 68W | Footage: 480 FSL 1327 FEL | | Bottom Hole Location: | Sec:23 Twp: 2N 68W | Footage: 21744 FSL 1455 FEL | | Log Types: | Mud Log, MWD/LWD, CBL, (Pulsed Neutron in 123-40939) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 121 ft., Weight: 52.78 , Citings Type: ACTUAL | | Cement: | Sacks: 114, Top: 0 ft., Bottom: 121 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2065 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 0 ft., Bottom: 2065 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 14793 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2285, Top: 0 ft., Bottom: 14793 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4529 ft. | | | | | SHANNON | 5038 ft. | | | | | TEEPEE BUTTES | 6504 ft. | | | | | SHARON SPRINGS | 7371 ft. | | | | | NIOBRARA | 7503 ft. | | | | | FORT HAYS | 8079 ft. | | | | | CODELL | 8237 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 2/6/2019 Interval Top: 8237 ft. Interval Bottom: 14746 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/6/2019 | Treatment End Date: | N/A | | Treatment Summary: | 8237-14746 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8237 ft. | # Of Holes: | 565 | | Interval Bottom: | 14746 ft. | Hole Size: | |
|
Formation FTHYS Formation Classification: OW Status: CM - 2/6/2019 Interval Top: 8104 ft. Interval Bottom: 8236 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/6/2019 | Treatment End Date: | N/A | | Treatment Summary: | 8104-8236 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8104 ft. | # Of Holes: | 565 | | Interval Bottom: | 8236 ft. | Hole Size: | |
|
Formation NBFHC Formation Classification: OW Status: PR - 7/26/2018 Interval Top: 7681 ft. Interval Bottom: 14746 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 7/26/2018 | Choke Size: | 20.000 in. | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/1/2018 | Treatment End Date: | 5/9/2018 | | Treatment Summary: | 155163 bbls water, 150 bbls additives (FRP-4CS, ACI-97 and ASF-67) and 36 bbl HCL in a 25 stage frac with 4,030,130 lbs of silica quartz proppant
| | Total fluid used in treatment (bbls): | 155349 | Max pressure during treatment (psi): | 7999 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 25 | | Total acid used in treatment (bbls): | 36 | Min frac gradient (psi/ft): | 0.85 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 6155 | | Fresh water used in treatment (bbls): | 155313 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4030130 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7771 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/26/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 659 | | BBLS_OIL | 682 | | BTU_GAS | 1317 | | CALC_BBLS_H2O | 659 | | CALC_BBLS_OIL | 682 | | CALC_GOR | 1676 | | CALC_MCF_GAS | 1143 | | CASING_PRESS | 2361 | | GRAVITY_OIL | 45 | | MCF_GAS | 1143 | | TUBING_PRESS | 1760 |
| | Perforation Data: | | Interval Top: | 7681 ft. | # Of Holes: | 565 | | Interval Bottom: | 14746 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 2/6/2019 Interval Top: 7681 ft. Interval Bottom: 7906 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/6/2019 | Treatment End Date: | N/A | | Treatment Summary: | 7681-7906 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7681 ft. | # Of Holes: | 565 | | Interval Bottom: | 7906 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2910 |
| Total Gas Produced (MCF) | 93628 |
| GOR | 32174 |
| GOR Determination | MCFE |
| Average BOE per Day | 52.200 |
| Average MCFE per Day | 302.790 |
| Federal Financial Assurance | i | |
|
|
