Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2025 Measured TD: 11812 ft. Vertical TD: 7174 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/19/2016 | | Proposed Top PZ Location: | Sec:24 Twp: 1N 65W | Footage: 627 FSL 1656 FEL | | Bottom Hole Location: | Sec:24 Twp: 1N 65W | Footage: 453 FNL 1666 FEL | | Proposed Depth/Form: | 11717 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-1247 , Unit Acreage: 640, Drill Unit: Sec 24: All | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1300 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1150, Top: 0 ft., Bottom: 1300 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7435 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 7435 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11717 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 450, Top: 5000 ft., Bottom: 11717 ft. |
| | |

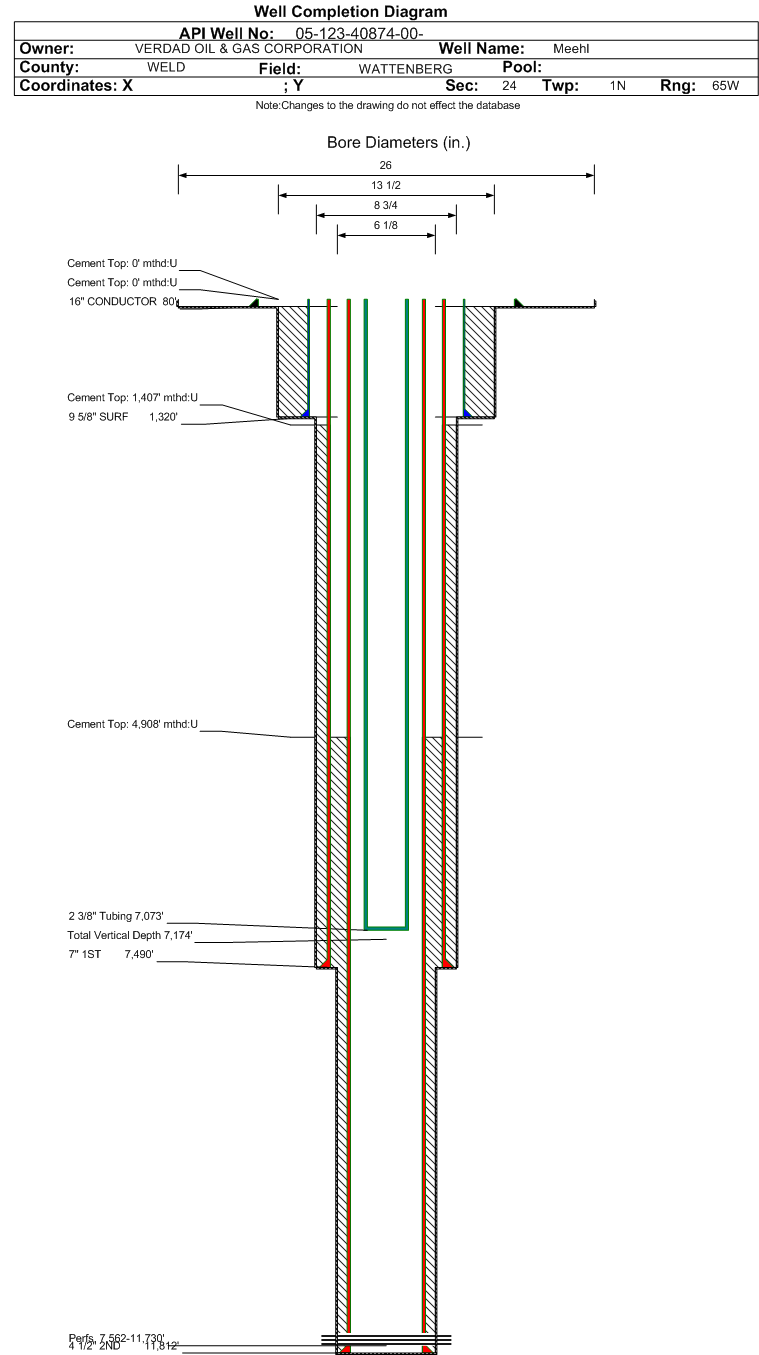

| Wellbore Completed | | Completion Date: | 6/1/2015 | | Spud Date: | 5/21/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 11812 ft. | Measured PB depth: | 11786 ft. | | True Vertical TD: | 7174 ft. | True Vertical PB depth: | 7174 ft. | | Top PZ Location: | Sec:24 Twp: 1N 65W | Footage: 627 FSL 1656 FEL | | Bottom Hole Location: | Sec:24 Twp: 1N 65W | Footage: 453 FNL 1666 FEL | | Log Types: | CBL/GR/CCL, Dual Induction/GR | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 64, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1320 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 369, Top: 0 ft., Bottom: 1320 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7490 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 740, Top: 1407 ft., Bottom: 7490 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11812 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: 418, Top: 4908 ft., Bottom: 11812 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | | 1180 ft. | N | N | | SUSSEX | 4548 ft. | | N | N | | SHARON SPRINGS | 6935 ft. | | N | N | | NIOBRARA | 6960 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 1/1/2025 Interval Top: 7562 ft. Interval Bottom: 11730 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/3/2015 | Choke Size: | 18.000 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/27/2015 | Treatment End Date: | 8/30/2015 | | Treatment Summary: | Niobrara frac'd with 6,550,337 lbs 30/50 sand, 690 bbl 15% HCl, and 126,668 bbl fresh water. | | Total fluid used in treatment (bbls): | 127358 | Max pressure during treatment (psi): | 8250 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.84 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | 690 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 14892 | | Fresh water used in treatment (bbls): | 126668 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6550337 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7073 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/16/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 500 | | BBLS_OIL | 390 | | BTU_GAS | 1500 | | CALC_BBLS_H2O | 500 | | CALC_BBLS_OIL | 390 | | CALC_GOR | 615 | | CALC_MCF_GAS | 240 | | CASING_PRESS | 500 | | GRAVITY_OIL | 39 | | MCF_GAS | 240 |
| | Perforation Data: | | Interval Top: | 7562 ft. | # Of Holes: | 1008 | | Interval Bottom: | 11730 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5231 |
| Total Gas Produced (MCF) | 2917 |
| GOR | 557 |
| GOR Determination | BOE |
| Average BOE per Day | 15.778 |
| Average MCFE per Day | 91.491 |
| Federal Financial Assurance | i | |
|
|
