Wellbore #00 Wellbore Classification: OW Status: PR - 7/1/2025 Measured TD: 11945 ft. Vertical TD: 6992 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/25/2016 | | Proposed Top PZ Location: | Sec:29 Twp: 6N 65W | Footage: 465 FSL 140 FWL | | Bottom Hole Location: | Sec:29 Twp: 6N 65W | Footage: 465 FNL 140 FWL | | Proposed Depth/Form: | 11803 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 11803 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1080, Top: 1500 ft., Bottom: 11803 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7432 ft., Depth: 11803 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

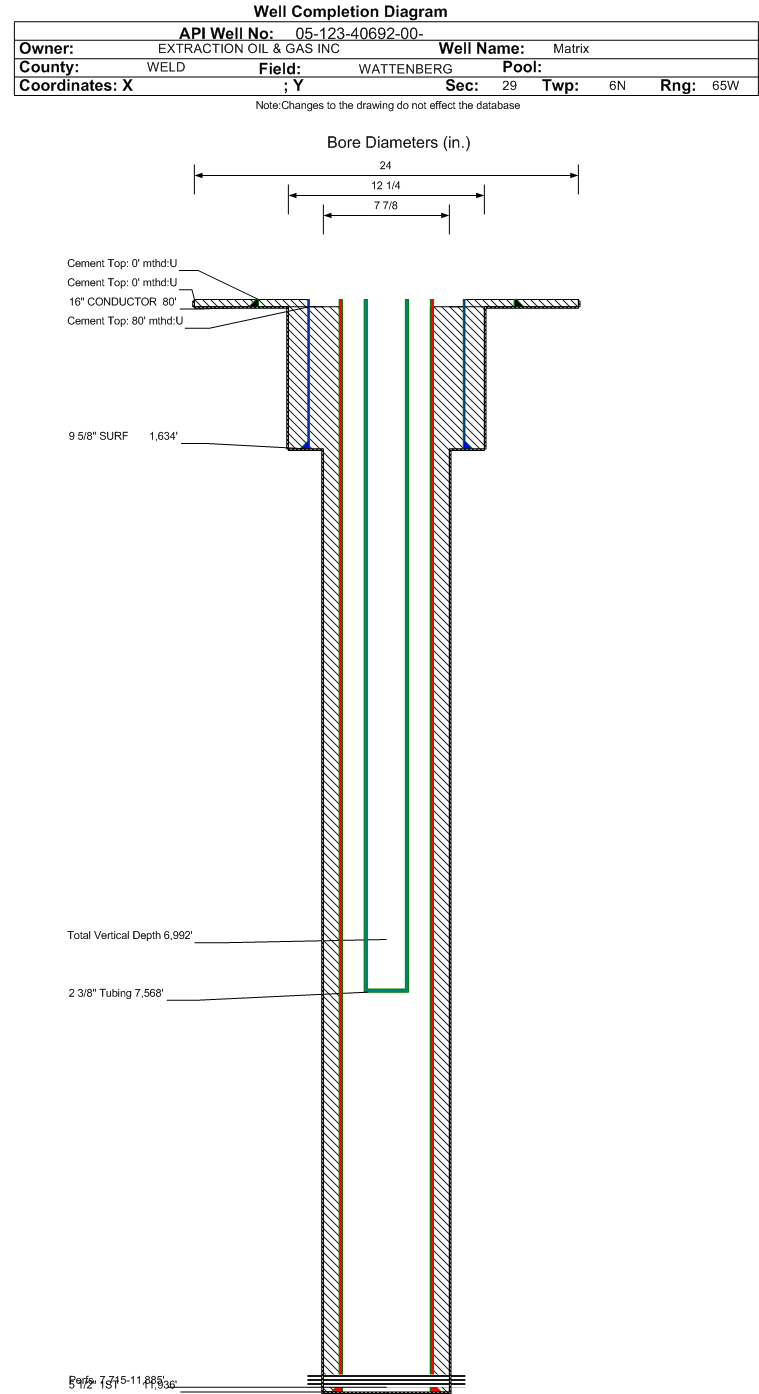

| Wellbore Completed | | Completion Date: | 1/16/2017 | | Spud Date: | 11/24/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 11945 ft. | Measured PB depth: | 11936 ft. | | True Vertical TD: | 6992 ft. | True Vertical PB depth: | 6992 ft. | | Top PZ Location: | Sec:29 Twp: 6N 65W | Footage: 527 FSL 140 FWL | | Bottom Hole Location: | Sec:29 Twp: 6N 65W | Footage: 535 FNL 123 FWL | | Log Types: | CBL, Mud, MWD, (Triple Combo on 123-32223) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1634 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 575, Top: 0 ft., Bottom: 1634 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 11936 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1550, Top: 80 ft., Bottom: 11936 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3805 ft. | | N | N | | SUSSEX | 4353 ft. | | N | N | | SHANNON | 5255 ft. | | N | N | | SHARON SPRINGS | 6795 ft. | | N | N | | NIOBRARA | 6824 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 7/1/2025 Interval Top: 7715 ft. Interval Bottom: 11885 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 4/26/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/29/2017 | Treatment End Date: | 4/3/2017 | | Treatment Summary: | 29 stage plug and perf;
71268 total bbls of fluid pumped: 71077 bbls fresh water and 191 bbls 15% HCL acid pumped;
5800734 lbs of 40/70 proppant pumped. | | Total fluid used in treatment (bbls): | 71268 | Max pressure during treatment (psi): | 8923 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 29 | | Total acid used in treatment (bbls): | 191 | Min frac gradient (psi/ft): | 1.00 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 845 | | Fresh water used in treatment (bbls): | 71077 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5800734 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7568 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/27/2017 | Test Method: | | | Hours Tested: | 4 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 173 | | BBLS_OIL | 16 | | BTU_GAS | 1307 | | CALC_BBLS_H2O | 1038 | | CALC_BBLS_OIL | 96 | | CALC_GOR | 6875 | | CALC_MCF_GAS | 660 | | CASING_PRESS | 2765 | | GRAVITY_OIL | 53 | | MCF_GAS | 110 | | TUBING_PRESS | 1893 |
| | Perforation Data: | | Interval Top: | 7715 ft. | # Of Holes: | 1009 | | Interval Bottom: | 11885 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2565 |
| Total Gas Produced (MCF) | 36236 |
| GOR | 14127 |
| GOR Determination | BOE |
| Average BOE per Day | 24.147 |
| Average MCFE per Day | 140.046 |
| Federal Financial Assurance | i | |
|
|
