Wellbore #00 Wellbore Classification: OW Status: PR - 9/1/2022 Measured TD: 13082 ft. Vertical TD: 7484 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/1/2022 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/5/2016 | | Proposed Top PZ Location: | Sec:11 Twp: 2N 67W | Footage: 50 FSL 1230 FWL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 50 FNL 1230 FWL | | Proposed Depth/Form: | 13120 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 470, Top: 0 ft., Bottom: 1129 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7940 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: 0 ft., Bottom: 7940 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7094 ft., Depth: 13120 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

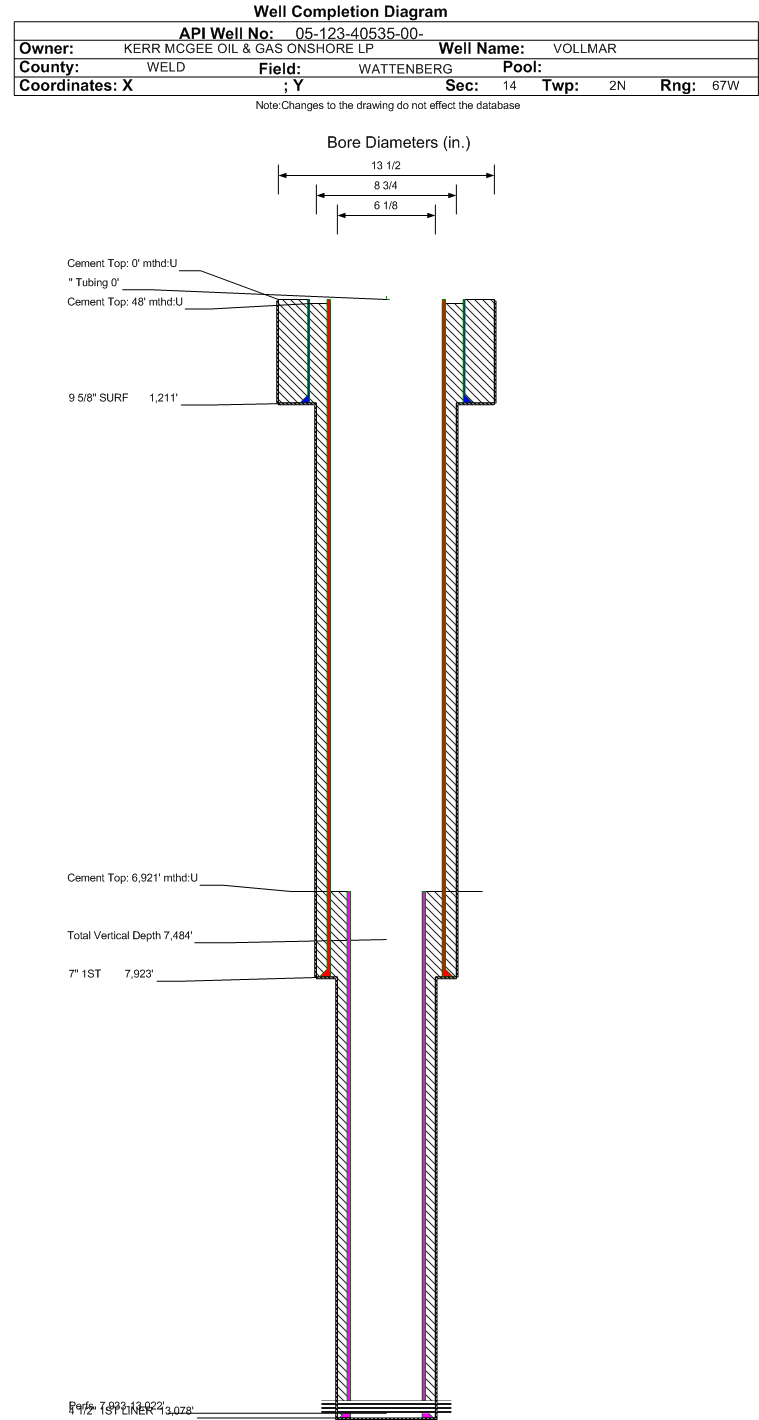

| Wellbore Completed | | Completion Date: | 3/1/2015 | | Spud Date: | 11/27/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13082 ft. | Measured PB depth: | 13030 ft. | | True Vertical TD: | 7484 ft. | True Vertical PB depth: | 7481 ft. | | Top PZ Location: | Sec:11 Twp: 2N 67W | Footage: 77 FSL 1084 FWL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 50 FNL 1234 FWL | | Log Types: | CBL, LWD, Mud, (IND in 123-09723, 123-23524, 123-22166, 123-10963) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1211 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 464, Top: 0 ft., Bottom: 1211 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7923 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 804, Top: 48 ft., Bottom: 7923 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6921 ft., Depth: 13078 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 6921 ft., Bottom: 13078 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4466 ft. | | | | | SHANNON | 4978 ft. | | | | | SHARON SPRINGS | 7303 ft. | | | | | NIOBRARA | 7412 ft. | | | | | FORT HAYS | 9272 ft. | | | | | CODELL | 10250 ft. | | | | | CARLILE | 10705 ft. | | | |
Formation NFCC Formation Classification: OW Status: PR - 9/1/2022 Interval Top: 7933 ft. Interval Bottom: 13022 ft.| Completed Information for Formation NIOBRARA-FORT HAYS-CODELL-CARLILE | | 1st Production Date: | 8/5/2015 | Choke Size: | | | Formation Name: | NIOBRARA-FORT HAYS-CODELL-CARLILE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/21/2015 | Treatment End Date: | 7/31/2015 | | Treatment Summary: | PERF AND FRAC FROM 7933-13022.
250 BBL ACID, 94258 BBL SLICKWATER, 2320 BBL TREATED WATER, 96828 BBL TOTAL FLUID.
2917650# 40/70 OTTAWA, 2917650# TOTAL SAND.
ENTERED NIOBRARA 7933-9283
FT HAYS 9283-10240
CODELL 10240-10704, 11289-12710
CARLILE 10704-11289, 12710-13022
THIS IS A DESIGNATED SOURCE OF SUPPLY WELL
SEE ATTACHMENT | | Total fluid used in treatment (bbls): | 96828 | Max pressure during treatment (psi): | 7731 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 18 | | Total acid used in treatment (bbls): | 250 | Min frac gradient (psi/ft): | 0.86 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 790 | | Fresh water used in treatment (bbls): | 96578 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2917650 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/12/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 213 | | BBLS_OIL | 183 | | BTU_GAS | 1369 | | CALC_BBLS_H2O | 213 | | CALC_BBLS_OIL | 183 | | CALC_GOR | 1880 | | CALC_MCF_GAS | 344 | | CASING_PRESS | 1150 | | GRAVITY_OIL | 51 | | MCF_GAS | 344 |
| | Perforation Data: | | Interval Top: | 7933 ft. | # Of Holes: | 432 | | Interval Bottom: | 13022 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1644 |
| Total Gas Produced (MCF) | 54406 |
| GOR | 33093 |
| GOR Determination | MCFE |
| Average BOE per Day | 30.186 |
| Average MCFE per Day | 175.083 |
| Federal Financial Assurance | i | |
|
|
