Wellbore #00 Wellbore Classification: OW Status: PR - 4/1/2024 Measured TD: 12881 ft. Vertical TD: 7307 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 4/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/5/2016 | | Proposed Top PZ Location: | Sec:11 Twp: 2N 67W | Footage: 150 FSL 2546 FWL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 50 FNL 2346 FWL | | Proposed Depth/Form: | 12874 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 470, Top: 0 ft., Bottom: 1129 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7800 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 7800 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6921 ft., Depth: 12874 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

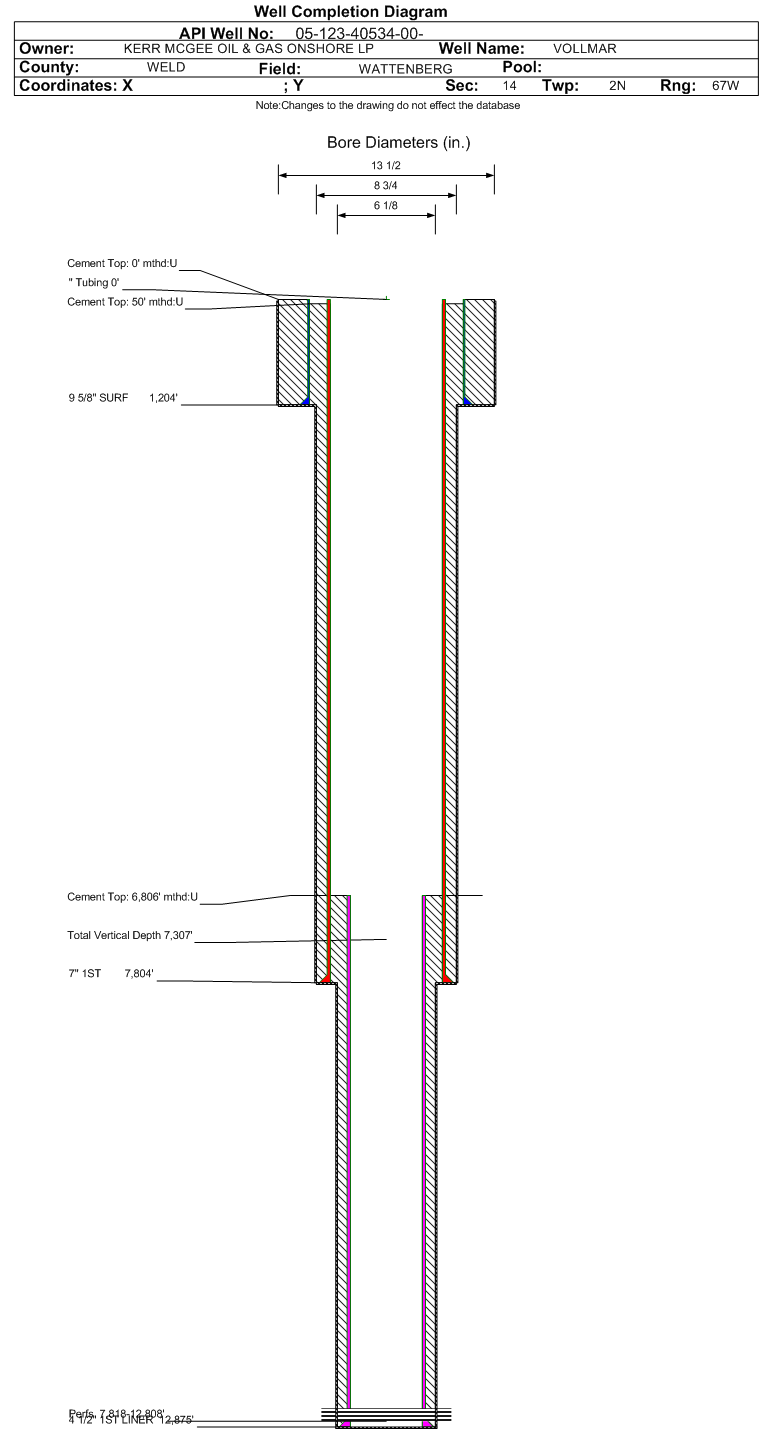

| Wellbore Completed | | Completion Date: | 2/13/2015 | | Spud Date: | 11/24/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12881 ft. | Measured PB depth: | 12831 ft. | | True Vertical TD: | 7307 ft. | True Vertical PB depth: | 7309 ft. | | Top PZ Location: | Sec:11 Twp: 2N 67W | Footage: 147 FSL 2459 FWL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 50 FNL 2318 FWL | | Log Types: | CBL, LWD, (IND in 123-09723, 123-23524, 123-22166, 123-10963) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1204 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 461, Top: 0 ft., Bottom: 1204 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7804 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 50 ft., Bottom: 7804 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6806 ft., Depth: 12875 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 6806 ft., Bottom: 12875 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4501 ft. | | | | | SHANNON | 4978 ft. | | | | | SHARON SPRINGS | 7245 ft. | | | | | NIOBRARA | 7381 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 4/1/2024 Interval Top: 7818 ft. Interval Bottom: 12808 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/5/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/17/2015 | Treatment End Date: | 7/31/2015 | | Treatment Summary: | PERF AND FRAC FROM 7818-12808.
607 BBL ACID, 272668 BBL SLICKWATER, 6692 BBL TREATED WATER, 279967 BBL TOTAL FLUID.
9020360# 40/70 OTTAWA, 9020360# TOTAL SAND. | | Total fluid used in treatment (bbls): | 279967 | Max pressure during treatment (psi): | 7811 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 50 | | Total acid used in treatment (bbls): | 607 | Min frac gradient (psi/ft): | 0.89 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1128 | | Fresh water used in treatment (bbls): | 279360 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9020360 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/12/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 227 | | BBLS_OIL | 179 | | BTU_GAS | 1369 | | CALC_BBLS_H2O | 227 | | CALC_BBLS_OIL | 179 | | CALC_GOR | 2235 | | CALC_MCF_GAS | 400 | | CASING_PRESS | 750 | | GRAVITY_OIL | 51 | | MCF_GAS | 400 |
| | Perforation Data: | | Interval Top: | 7818 ft. | # Of Holes: | 1200 | | Interval Bottom: | 12808 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3971 |
| Total Gas Produced (MCF) | 127466 |
| GOR | 32099 |
| GOR Determination | MCFE |
| Average BOE per Day | 71.093 |
| Average MCFE per Day | 412.352 |
| Federal Financial Assurance | i | |
|
|
