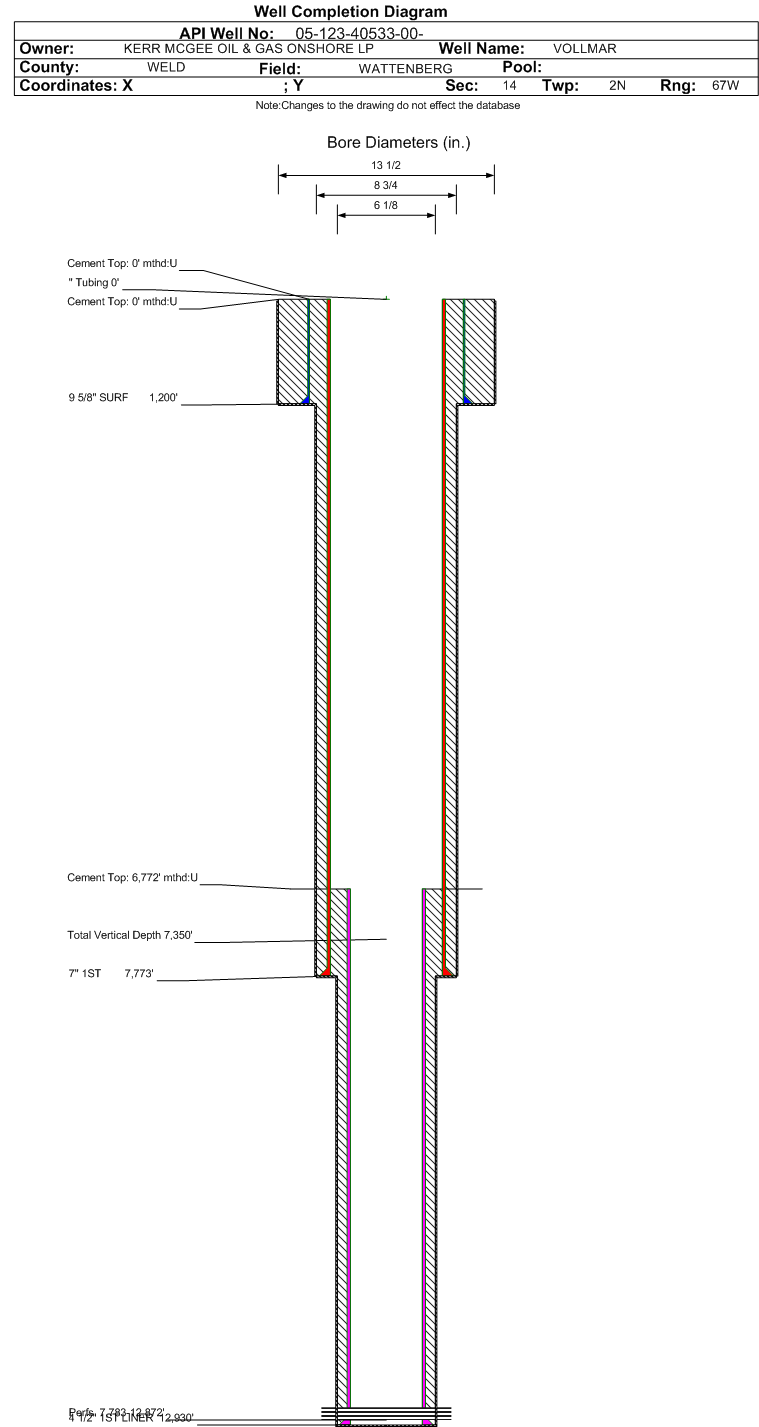

Wellbore #00 Wellbore Classification: OW Status: PR - 8/16/2015 Measured TD: 12934 ft. Vertical TD: 7350 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 8/16/2015 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/5/2016 | | Proposed Top PZ Location: | Sec:11 Twp: 2N 67W | Footage: 50 FSL 1712 FWL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 50 FNL 1712 FWL | | Proposed Depth/Form: | 12934 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 470, Top: 0 ft., Bottom: 1129 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7753 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 720, Top: 0 ft., Bottom: 7753 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6925 ft., Depth: 12934 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 2/20/2015 | | Spud Date: | 11/26/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12934 ft. | Measured PB depth: | 12880 ft. | | True Vertical TD: | 7350 ft. | True Vertical PB depth: | 7350 ft. | | Top PZ Location: | Sec:11 Twp: 2N 67W | Footage: 68 FSL 1549 FWL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 50 FNL 1579 FWL | | Log Types: | CBL, LWD, (IND in 123-09723, 123-23524, 123-22166, 123-10963) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1200 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 460, Top: 0 ft., Bottom: 1200 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7773 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 0 ft., Bottom: 7773 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6772 ft., Depth: 12930 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 6772 ft., Bottom: 12930 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4466 ft. | | | | | SHANNON | 4978 ft. | | | | | SHARON SPRINGS | 7307 ft. | | | | | NIOBRARA | 7512 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 8/16/2015 Interval Top: 7783 ft. Interval Bottom: 12872 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/5/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/23/2015 | Treatment End Date: | 7/31/2015 | | Treatment Summary: | PERF AND FRAC FROM 7783-12872.
274 BBL ACID, 262084 BBL SLICKWATER, 2141 BBL TREATED WATER, 264499 BBL TOTAL FLUID.
1556580# 100 MESH OTTAWA, 1556580# TOTAL SAND. | | Total fluid used in treatment (bbls): | 264499 | Max pressure during treatment (psi): | 7446 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 17 | | Total acid used in treatment (bbls): | 274 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 971 | | Fresh water used in treatment (bbls): | 264225 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 1556580 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/16/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 204 | | BTU_GAS | 1369 | | CALC_BBLS_OIL | 204 | | CALC_GOR | 2044 | | CALC_MCF_GAS | 417 | | CASING_PRESS | 1400 | | GRAVITY_OIL | 51 | | MCF_GAS | 417 |
| | Perforation Data: | | Interval Top: | 7783 ft. | # Of Holes: | 408 | | Interval Bottom: | 12872 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3929 |
| Total Gas Produced (MCF) | 59980 |
| GOR | 15265 |
| GOR Determination | MCFE |
| Average BOE per Day | 39.114 |
| Average MCFE per Day | 226.848 |
| Federal Financial Assurance | i | |
|
|
