Wellbore #00 Wellbore Classification: OW Status: PA - 8/20/2021 Measured TD: 11877 ft. Vertical TD: 7254 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 8/20/2021 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/2/2016 | | Proposed Top PZ Location: | Sec:30 Twp: 1N 65W | Footage: 460 FSL 2303 FWL | | Bottom Hole Location: | Sec:30 Twp: 1N 65W | Footage: 460 FNL 2313 FWL | | Proposed Depth/Form: | 11862 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11891 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2000, Top: 0 ft., Bottom: 11891 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7400 ft., Depth: 11862 ft., Weight: 13.5# , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

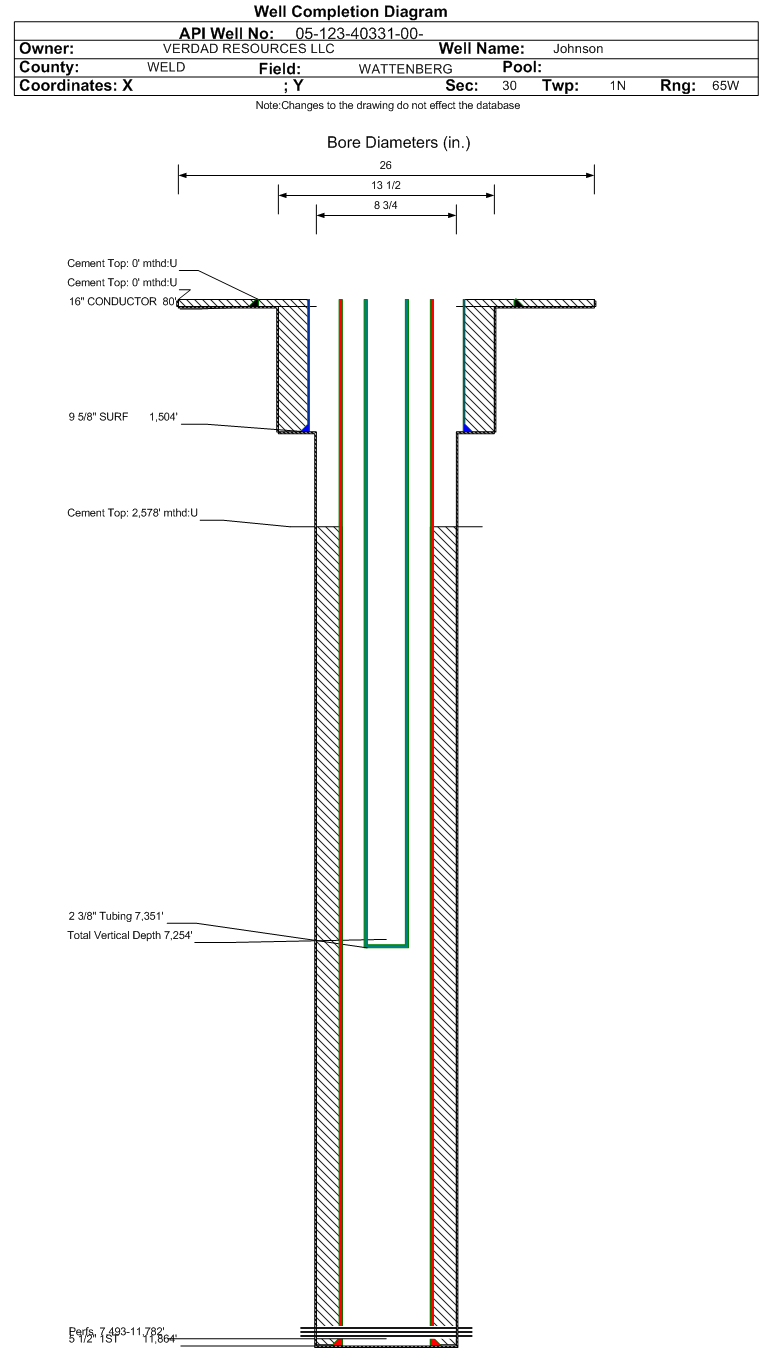

| Wellbore Completed | | Completion Date: | 7/10/2016 | | Spud Date: | 6/29/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 11877 ft. | Measured PB depth: | 11849 ft. | | True Vertical TD: | 7254 ft. | True Vertical PB depth: | 7254 ft. | | Top PZ Location: | Sec:30 Twp: 1N 65W | Footage: 460 FSL 2241 FWL | | Bottom Hole Location: | Sec:30 Twp: 1N 65W | Footage: 460 FNL 2313 FWL | | Log Types: | CBL, Mud, MWD, (Induction in API: 123-21798) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1504 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 463, Top: 0 ft., Bottom: 1522 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 11864 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2069, Top: 0 ft., Bottom: 11877 ft., Determination Method: VISU | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS BASE | | 1180 ft. | N | N | | SUSSEX | 4645 ft. | | N | N | | SHARON SPRINGS | 7018 ft. | | | | | NIOBRARA | 7068 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: AB - 8/26/2021 Interval Top: 7493 ft. Interval Bottom: 11782 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 2/28/2017 | Choke Size: | 14.000 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/16/2016 | Treatment End Date: | 10/20/2016 | | Treatment Summary: | Frac 29 stages with 1,320 bbls HCL, 113,159 bbls fresh water and 434,000# 100 Mesh sand, 176,000# 20/40 white sand, 5,532,900# 30/50 white sand | | Total fluid used in treatment (bbls): | 114479 | Max pressure during treatment (psi): | 7718 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 29 | | Total acid used in treatment (bbls): | 1320 | Min frac gradient (psi/ft): | 0.93 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 8541 | | Fresh water used in treatment (bbls): | 113159 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6142900 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7351 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/30/2016 | Test Method: | Flowing | | Hours Tested: | 1 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 31 | | BBLS_OIL | 2 | | BTU_GAS | 1300 | | CALC_BBLS_H2O | 744 | | CALC_BBLS_OIL | 48 | | CALC_GOR | 3000 | | CALC_MCF_GAS | 144 | | CASING_PRESS | 2000 | | GRAVITY_OIL | 40 | | MCF_GAS | 6 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 7493 ft. | # Of Holes: | 609 | | Interval Bottom: | 11782 ft. | Hole Size: | 0.39 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/26/2021 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
