Wellbore #00 Wellbore Classification: OW Status: SI - 6/1/2025 Measured TD: 11249 ft. Vertical TD: 6761 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 6/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/12/2016 | | Proposed Top PZ Location: | Sec:5 Twp: 3N 64W | Footage: 820 FNL 1874 FEL | | Bottom Hole Location: | Sec:5 Twp: 3N 64W | Footage: 500 FSL 1854 FEL | | Proposed Depth/Form: | 11232 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 875 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 875 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7244 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 650, Top: 500 ft., Bottom: 7244 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6038 ft., Depth: 11232 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

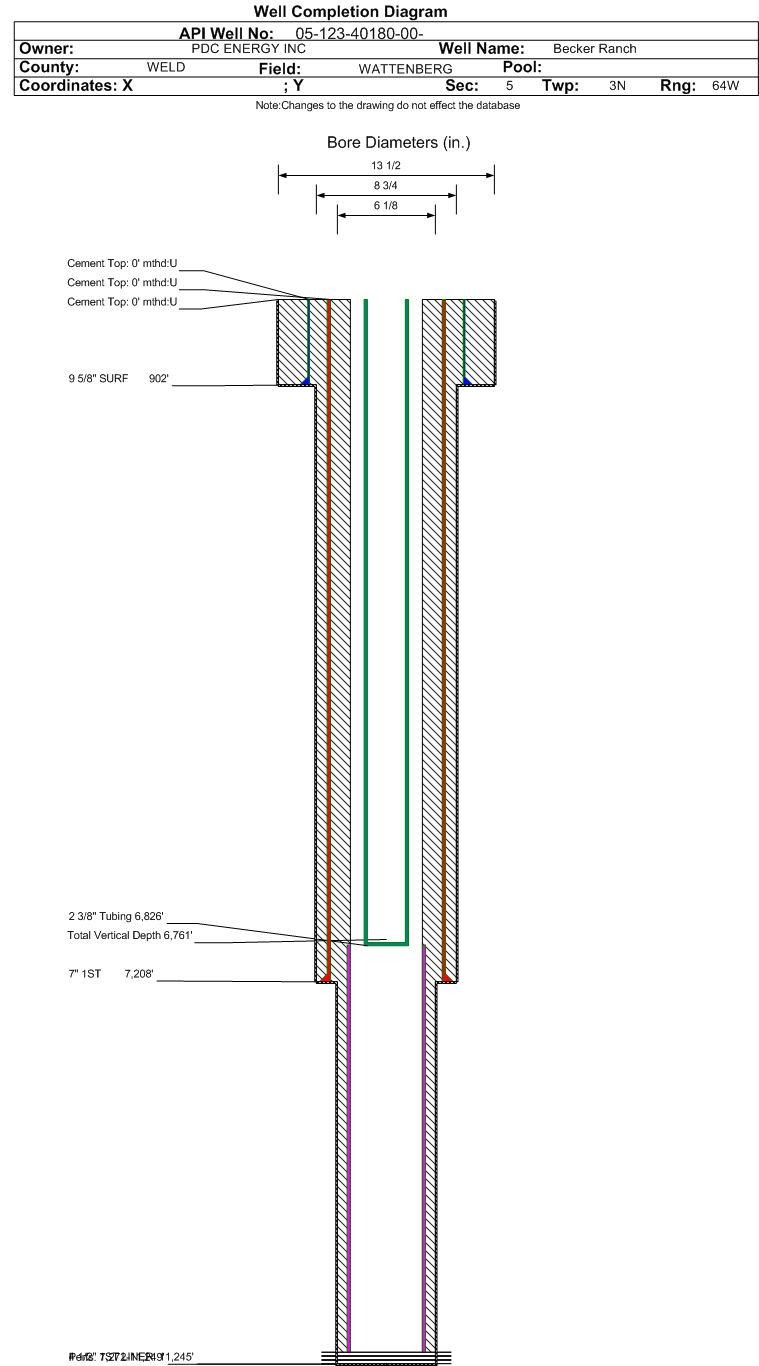

| Wellbore Completed | | Completion Date: | 4/15/2015 | | Spud Date: | 4/7/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 11249 ft. | Measured PB depth: | 11242 ft. | | True Vertical TD: | 6761 ft. | True Vertical PB depth: | 6761 ft. | | Top PZ Location: | Sec:5 Twp: 3N 64W | Footage: 891 FNL 1874 FEL | | Bottom Hole Location: | Sec:5 Twp: 3N 64W | Footage: 501 FSL 1847 FEL | | Log Types: | CBL, MWD (DIL in 123-16974) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 902 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 902 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7208 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 0 ft., Bottom: 7208 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6818 ft., Depth: 11245 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3720 ft. | | | | | SUSSEX | 4321 ft. | | | | | SHARON SPRINGS | 6592 ft. | | | | | NIOBRARA | 6717 ft. | | | |
Formation NBRR Formation Classification: OW Status: SI - 6/1/2025 Interval Top: 7272 ft. Interval Bottom: 11249 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/4/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/23/2015 | Treatment End Date: | 10/24/2015 | | Treatment Summary: | 20 Stage Sliding Sleeve, Swell Packer set @ 7,272'
Total Fluid: 79,872 bbls
Gel Fluid: 58,167 bbls
Slickwater Fluid: 21,705 bbls
Total Proppant: 4,394,400 lbs
Silica Proppant: 4,394,400 lbs
Method for determining flowback: measuring flowback tank volumes. | | Total fluid used in treatment (bbls): | 79872 | Max pressure during treatment (psi): | 4092 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 20 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.98 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 7473 | | Fresh water used in treatment (bbls): | 79872 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4394400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6826 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/18/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 195 | | BBLS_OIL | 221 | | BTU_GAS | 1283 | | CALC_BBLS_H2O | 195 | | CALC_BBLS_OIL | 221 | | CALC_GOR | 3719 | | CALC_MCF_GAS | 822 | | CASING_PRESS | 1512 | | GRAVITY_OIL | 52 | | MCF_GAS | 822 | | TUBING_PRESS | 1541 |
| | Perforation Data: | | Interval Top: | 7272 ft. | # Of Holes: | | | Interval Bottom: | 11249 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 1432 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.683 |
| Average MCFE per Day | 3.957 |
| Federal Financial Assurance | i | |
|
|
