Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2017 Measured TD: 11204 ft. Vertical TD: 5773 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/30/2018 | | Proposed Top PZ Location: | Sec:24 Twp: 10N 58W | Footage: 104 FSL 2664 FWL | | Bottom Hole Location: | Sec:24 Twp: 10N 58W | Footage: 100 FNL 2640 FEL | | Proposed Depth/Form: | 11199 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-646 , Unit Acreage: 1280, Drill Unit: All S25, All S24 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: 92 , Citings Type: PLANNED | | Cement: | Sacks: 179, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 632, Top: 0 ft., Bottom: 2000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11199 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1779, Top: 0 ft., Bottom: 11199 ft. |
| | |
| Wellbore Completed | | Completion Date: | 3/1/2017 | | Spud Date: | 2/25/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 11204 ft. | Measured PB depth: | 11164 ft. | | True Vertical TD: | 5773 ft. | True Vertical PB depth: | 5773 ft. | | Top PZ Location: | Sec:24 Twp: 10N 58W | Footage: 133 FNL 2590 FWL | | Bottom Hole Location: | Sec:24 Twp: 10N 58W | Footage: 100 FNL 2633 FEL | | Log Types: | Mud Log, MWD/LWD, CBL (DEN, IND, GR, Triple Combo in API 123-39119) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 101 ft., Weight: 75 , Citings Type: ACTUAL | | Cement: | Sacks: 153, Top: 0 ft., Bottom: 101 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2071 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 615, Top: 0 ft., Bottom: 2071 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11195 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1860, Top: 550 ft., Bottom: 11204 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1448 ft. | | N | N | | HYGIENE | 3270 ft. | | N | N | | SUSSEX | 3778 ft. | | N | N | | SHARON SPRINGS | 5533 ft. | | N | N | | NIOBRARA | 5537 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 10/14/2017 Interval Top: 6138 ft. Interval Bottom: 11124 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/9/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/31/2017 | Treatment End Date: | 9/4/2017 | | Treatment Summary: | 35 Stage Plug & Perf, 700000# 100 Mesh , 2817500# 40/70 Prem White sand, 65 bbls 15% HCl, 136757 bbls slickwater | | Total fluid used in treatment (bbls): | 136822 | Max pressure during treatment (psi): | 8116 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 35 | | Total acid used in treatment (bbls): | 65 | Min frac gradient (psi/ft): | 0.90 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 7119 | | Fresh water used in treatment (bbls): | 136757 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3517500 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |

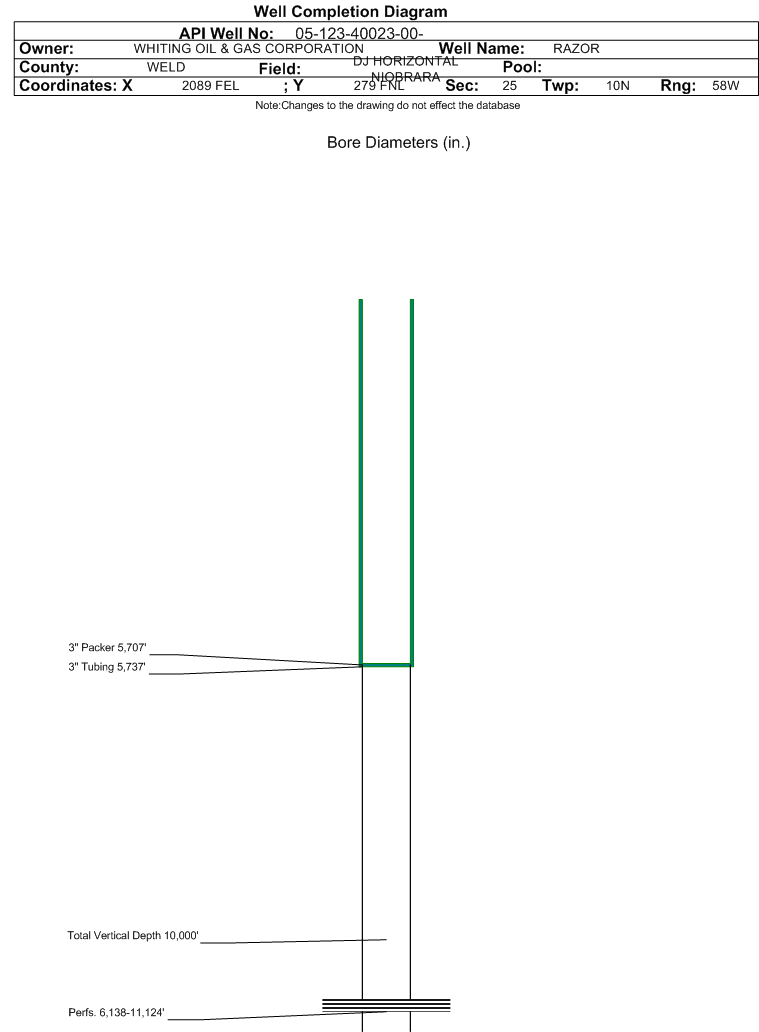

| | Tubing Size: | 3 in. | Tubing Setting Depth: | 5737 ft. | | Tubing Packer Depth: | 5727 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/14/2017 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 365 | | BBLS_OIL | 397 | | BTU_GAS | 1400 | | CALC_BBLS_H2O | 365 | | CALC_BBLS_OIL | 397 | | CALC_GOR | 247 | | CALC_MCF_GAS | 98 | | GRAVITY_OIL | 36 | | MCF_GAS | 98 | | TUBING_PRESS | 975 |
| | Perforation Data: | | Interval Top: | 6138 ft. | # Of Holes: | 1399 | | Interval Bottom: | 11124 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2858 |
| Total Gas Produced (MCF) | 5177 |
| GOR | 1811 |
| GOR Determination | BOE |
| Average BOE per Day | 9.789 |
| Average MCFE per Day | 56.788 |
| Federal Financial Assurance | i | |
|
|
