Wellbore #00 Wellbore Classification: OW Status: PR - 9/1/2025 Measured TD: 11157 ft. Vertical TD: 6502 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/20/2016 | | Proposed Top PZ Location: | Sec:34 Twp: 5N 63W | Footage: 728 FSL 718 FWL | | Bottom Hole Location: | Sec:34 Twp: 5N 63W | Footage: 482 FNL 712 FWL | | Proposed Depth/Form: | 11105 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 410 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 410 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6882 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: 2500 ft., Bottom: 6882 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6782 ft., Depth: 11105 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

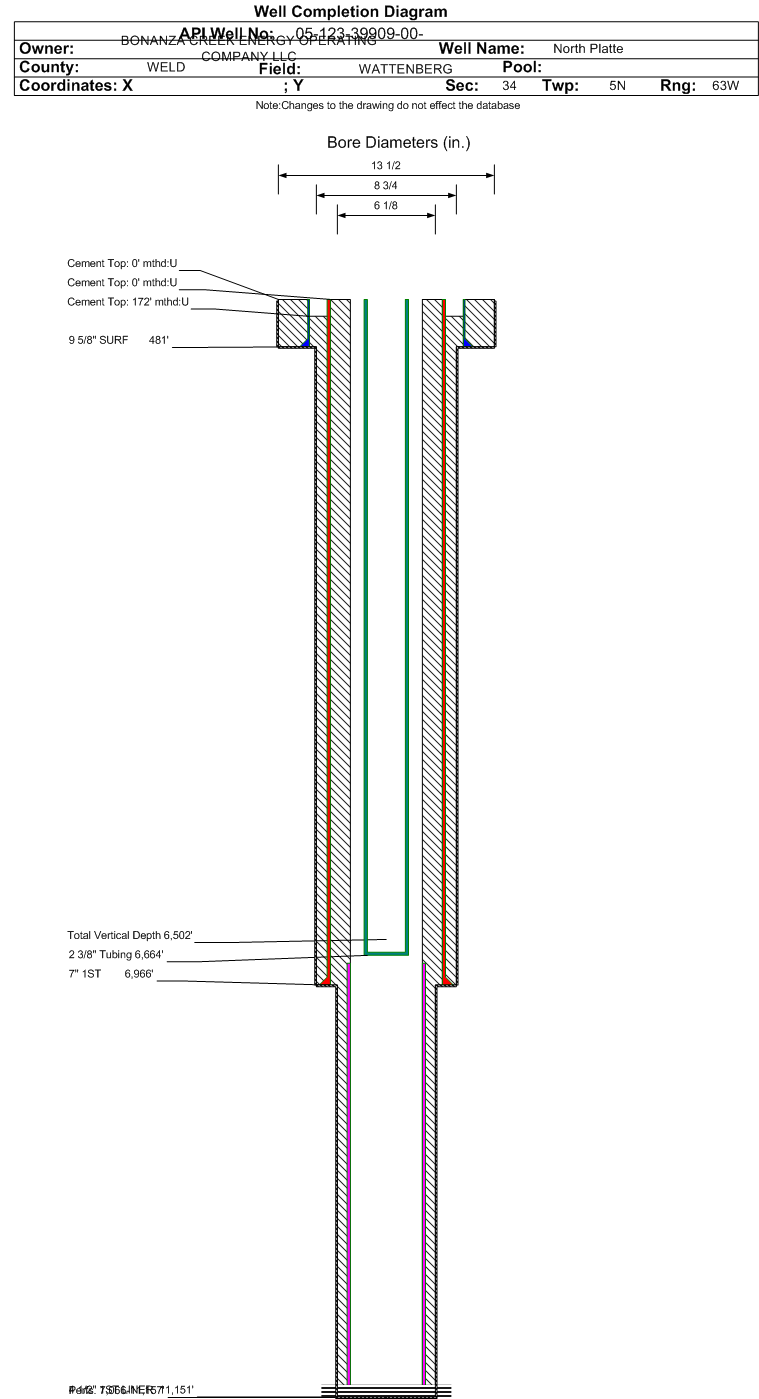

| Wellbore Completed | | Completion Date: | 2/7/2015 | | Spud Date: | 2/1/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 11157 ft. | Measured PB depth: | 11106 ft. | | True Vertical TD: | 6502 ft. | True Vertical PB depth: | 6500 ft. | | Top PZ Location: | Sec:34 Twp: 5N 63W | Footage: 728 FSL 718 FWL | | Bottom Hole Location: | Sec:34 Twp: 5N 63W | Footage: 482 FNL 712 FWL | | Log Types: | CBL, Mud, CNL, MWD w/ GR | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 481 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 481 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6966 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 807, Top: 172 ft., Bottom: 6966 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6745 ft., Depth: 11151 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3355 ft. | | | | | SHARON SPRINGS | 6202 ft. | | N | N | | NIOBRARA | 6351 ft. | | N | N | | FORT HAYS | 6755 ft. | | | | | CODELL | 6932 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 9/1/2025 Interval Top: 7066 ft. Interval Bottom: 11157 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 5/1/2015 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/12/2015 | Treatment End Date: | 3/13/2015 | | Treatment Summary: | 28 Stage Codel pumped a total of 60,207 bbls of fluid (Phazer) and 3,750,000 # of sand (40/70 Ottawa, 20/40 Ottawa);
ATP 4,439 psi, ATR 49.00 bpm, Final ISDP 3,636 psi; completed with sliding sleeves and casing packers. | | Total fluid used in treatment (bbls): | 60207 | Max pressure during treatment (psi): | 6636 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.99 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 14370 | | Fresh water used in treatment (bbls): | 60207 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3750000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6664 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 263 | | BBLS_OIL | 335 | | BTU_GAS | 1326 | | CALC_BBLS_H2O | 263 | | CALC_BBLS_OIL | 335 | | CALC_GOR | 1050 | | CALC_MCF_GAS | 352 | | CASING_PRESS | 992 | | GRAVITY_OIL | 45 | | MCF_GAS | 352 | | TUBING_PRESS | 610 |
| | Perforation Data: | | Interval Top: | 7066 ft. | # Of Holes: | 280 | | Interval Bottom: | 11157 ft. | Hole Size: | 1.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 279 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | BOE |
| Average BOE per Day | 0.759 |
| Average MCFE per Day | 4.401 |
