Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2021 Measured TD: 17043 ft. Vertical TD: 7081 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2021 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/5/2016 | | Proposed Top PZ Location: | Sec:28 Twp: 7N 64W | Footage: 465 FNL 173 FEL | | Bottom Hole Location: | Sec:33 Twp: 7N 64W | Footage: 470 FSL 173 FEL | | Proposed Depth/Form: | 11857 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 333, Top: 0 ft., Bottom: 750 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7518 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 640, Top: 400 ft., Bottom: 7518 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7218 ft., Depth: 17171 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

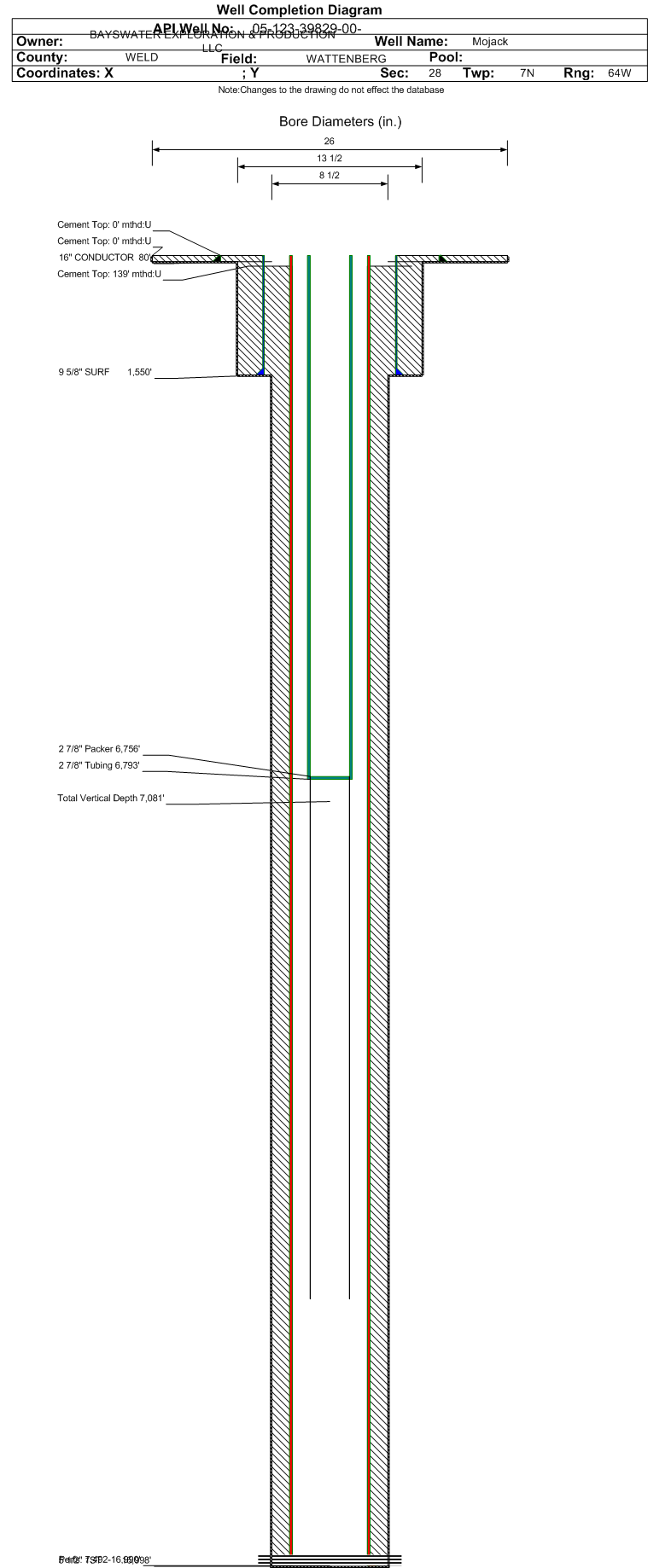

| Wellbore Completed | | Completion Date: | 4/17/2016 | | Spud Date: | 3/12/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 17043 ft. | Measured PB depth: | 16995 ft. | | True Vertical TD: | 7081 ft. | True Vertical PB depth: | 7081 ft. | | Top PZ Location: | Sec:28 Twp: 7N 64W | Footage: 487 FNL 179 FEL | | Bottom Hole Location: | Sec:33 Twp: 7N 64W | Footage: 471 FSL 175 FEL | | Log Types: | MWD, Mud, CBL, O.H. Logging Exception for API#05-123-39835 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 43 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 702, Top: 0 ft., Bottom: 1550 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 16998 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 3150, Top: 139 ft., Bottom: 16998 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3936 ft. | | N | N | | SUSSEX | 4127 ft. | 4324 ft. | N | N | | SHARON SPRINGS | 7004 ft. | | N | N | | NIOBRARA | 7073 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2021 Interval Top: 7492 ft. Interval Bottom: 16990 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/19/2017 | Treatment End Date: | 3/17/2017 | | Treatment Summary: | The well was frac'd in 56 stages, there were 5 clusters per stage. Clusters 1 & 2 were 0.29" END, Cluster 3 was 0.35", Cluster 4 & 5 were 0.42". | | Total fluid used in treatment (bbls): | 298985 | Max pressure during treatment (psi): | 8300 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 56 | | Total acid used in treatment (bbls): | 1440 | Min frac gradient (psi/ft): | 0.89 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 297545 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 12029291 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6793 ft. | | Tubing Packer Depth: | 6776 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7492 ft. | # Of Holes: | 1680 | | Interval Bottom: | 16990 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4695 |
| Total Gas Produced (MCF) | 40082 |
| GOR | 8537 |
| GOR Determination | BOE |
| Average BOE per Day | 32.003 |
| Average MCFE per Day | 185.625 |
| Federal Financial Assurance | i | |
|
|
