Wellbore #00 Wellbore Classification: OW Status: PR - 5/1/2025 Measured TD: 11483 ft. Vertical TD: 6963 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 5/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/1/2016 | | Proposed Top PZ Location: | Sec:32 Twp: 2N 64W | Footage: 610 FNL 195 FWL | | Bottom Hole Location: | Sec:32 Twp: 2N 64W | Footage: 460 FSL 250 FWL | | Proposed Depth/Form: | 11708 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 198, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7464 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 912, Top: 500 ft., Bottom: 7464 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11708 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 375, Top: 7164 ft., Bottom: 11708 ft. |
| | |

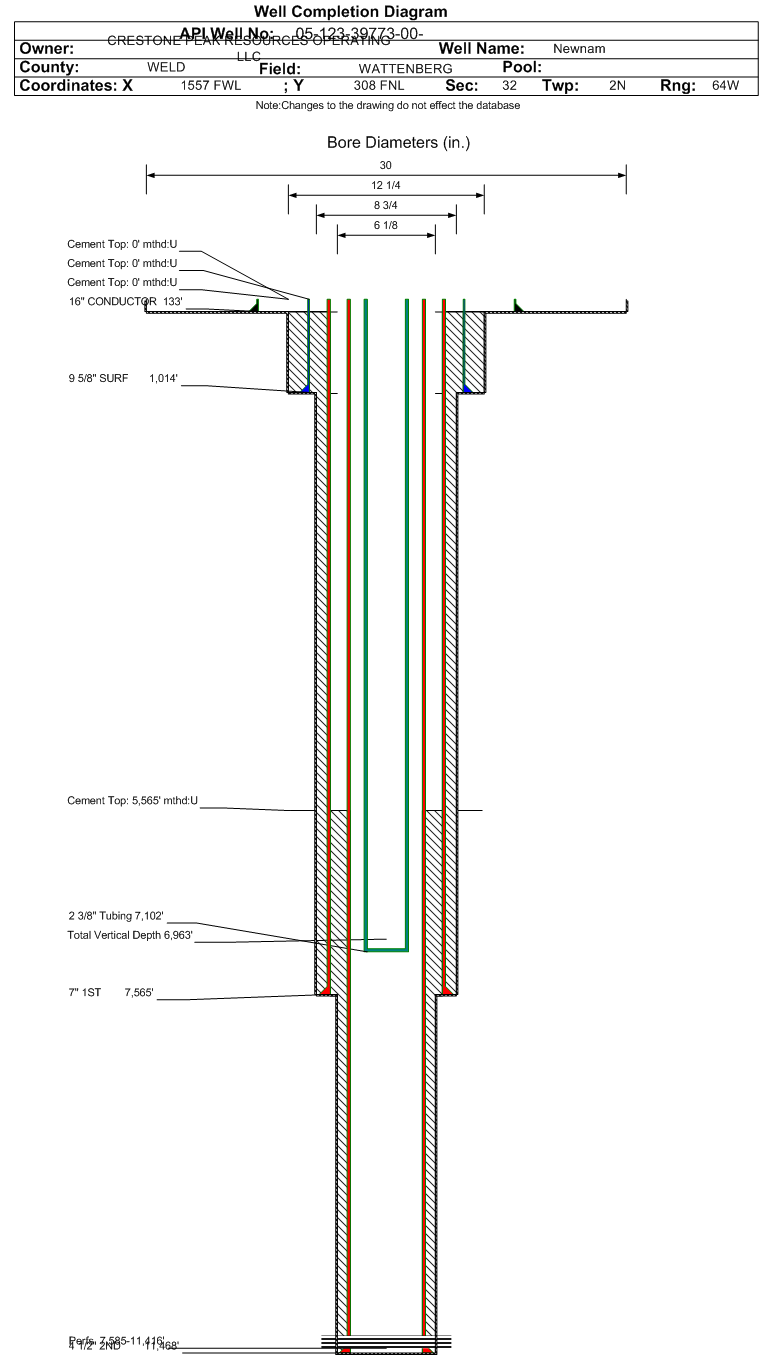

| Wellbore Completed | | Completion Date: | 11/5/2014 | | Spud Date: | 10/28/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 11483 ft. | Measured PB depth: | 11464 ft. | | True Vertical TD: | 6963 ft. | True Vertical PB depth: | 6963 ft. | | Top PZ Location: | Sec:32 Twp: 2N 64W | Footage: 822 FNL 180 FWL | | Bottom Hole Location: | Sec:32 Twp: 2N 64W | Footage: 580 FSL 250 FWL | | Log Types: | CBL/MWD/(NEU, DENS run in API: 123-21516) | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 133 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 145, Top: 0 ft., Bottom: 137 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1014 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 418, Top: 0 ft., Bottom: 1025 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7565 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 660, Top: 0 ft., Bottom: 7582 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11468 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: 407, Top: 5565 ft., Bottom: 11483 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7128 ft. | | | | | NIOBRARA | 7199 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 5/1/2025 Interval Top: 7585 ft. Interval Bottom: 11416 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/27/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/21/2015 | Treatment End Date: | 3/24/2015 | | Treatment Summary: | Stages 1 - 26 treated with 53,123 bbls of fresh water, 1,050 bbls of recycled water, 380 bbls of slickwater, 631 bbls of acid 15%, and 4,956,515 lbs of 40/70 Sand Proppant | | Total fluid used in treatment (bbls): | 55184 | Max pressure during treatment (psi): | 8950 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 26 | | Total acid used in treatment (bbls): | 631 | Min frac gradient (psi/ft): | 0.97 | | Recycled water used in treatment (bbls): | 1050 | Total flowback volume recovered (bbls): | 800 | | Fresh water used in treatment (bbls): | 53503 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4956515 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7102 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/4/2015 | Test Method: | flows from well | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 256 | | BBLS_OIL | 113 | | BTU_GAS | 1298 | | CALC_BBLS_H2O | 256 | | CALC_BBLS_OIL | 113 | | CALC_GOR | 938 | | CALC_MCF_GAS | 106 | | CASING_PRESS | 1597 | | GRAVITY_OIL | 50 | | MCF_GAS | 106 | | TUBING_PRESS | 1001 |
| | Perforation Data: | | Interval Top: | 7585 ft. | # Of Holes: | 700 | | Interval Bottom: | 11416 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1844 |
| Total Gas Produced (MCF) | 16510 |
| GOR | 8953 |
| GOR Determination | BOE |
| Average BOE per Day | 12.881 |
| Average MCFE per Day | 74.719 |
| Federal Financial Assurance | i | |
|
|
