Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2017 Measured TD: 13458 ft. Vertical TD: 7319 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/20/2016 | | Proposed Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 360 FNL 1375 FEL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 1 FNL 1375 FEL | | Proposed Depth/Form: | 13557 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 925 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 925 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7929 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 840, Top: 0 ft., Bottom: 7929 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6931 ft., Depth: 13557 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

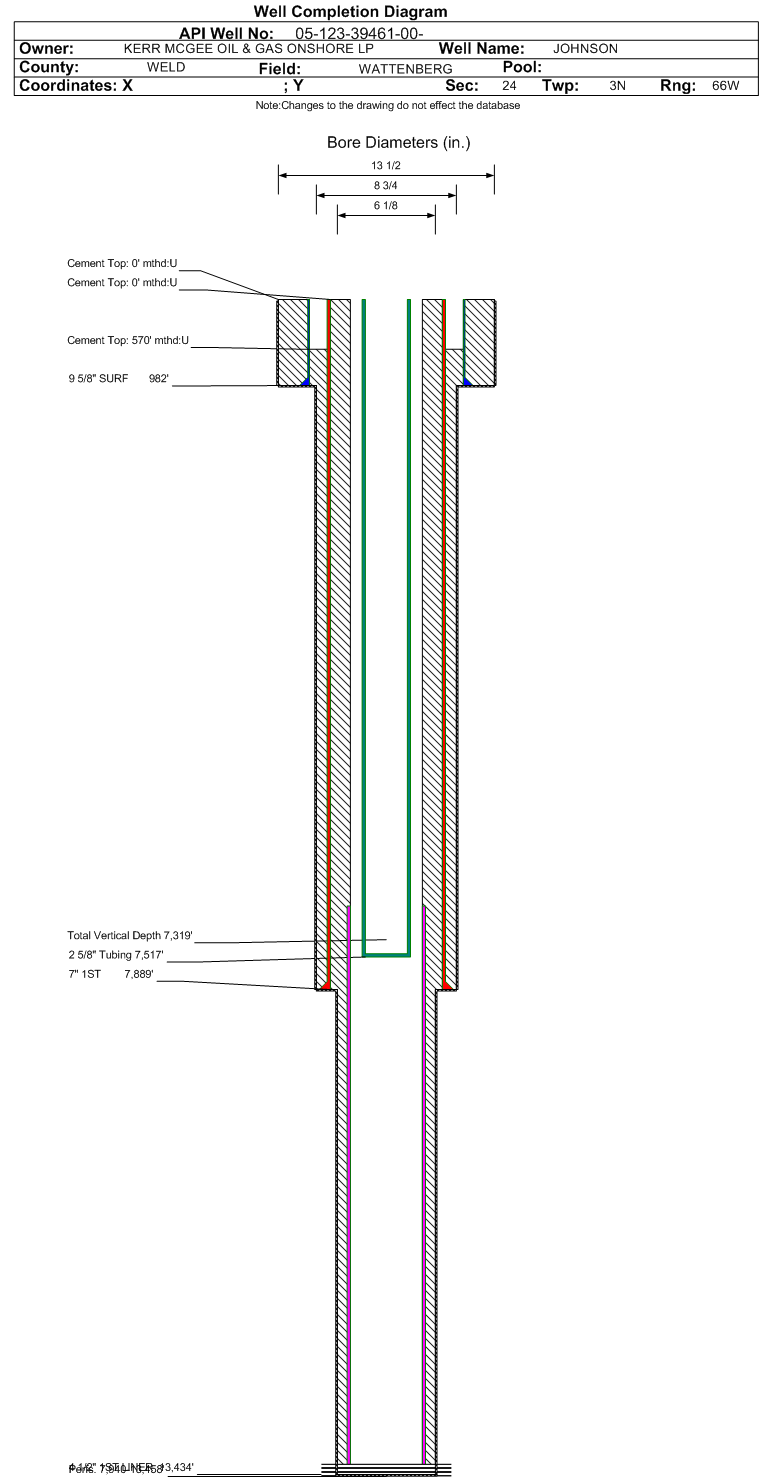

| Wellbore Completed | | Completion Date: | 10/9/2014 | | Spud Date: | 6/30/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13458 ft. | Measured PB depth: | 13422 ft. | | True Vertical TD: | 7319 ft. | True Vertical PB depth: | 7318 ft. | | Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 291 FNL 1561 FEL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 8 FNL 1580 FEL | | Log Types: | CBL, GR, MUD, (IND in API# 05-123-14662) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 982 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 365, Top: 0 ft., Bottom: 982 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7889 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 796, Top: 570 ft., Bottom: 7889 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6934 ft., Depth: 13434 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4724 ft. | | | | | SHARON SPRINGS | 7400 ft. | | | | | NIOBRARA | 7489 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2017 Interval Top: 7940 ft. Interval Bottom: 13458 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/25/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/13/2015 | Treatment End Date: | 3/16/2015 | | Treatment Summary: | "COMPLETED THROUGH AN OPEN HOLE LINER FROM 7940-13,458.
119 BBL ACID, 7,844 BBL CROSSLINK GEL, 10,095 BBL LINEAR GEL, 129,731 BBL SLICKWATER, - 147,789 BBL TOTAL FLUID
21,070# 100 MESH OTTAWA/ST. PETERS, 2,555,830# 30/50 OTTAWA/ST. PETERS, 1,692,130# 40/70 OTTAWA/ST. PETERS, - 4,269,030# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 147789 | Max pressure during treatment (psi): | 7773 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 119 | Min frac gradient (psi/ft): | 0.99 | | Recycled water used in treatment (bbls): | 3000 | Total flowback volume recovered (bbls): | 3996 | | Fresh water used in treatment (bbls): | 144670 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 4269030 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.625 in. | Tubing Setting Depth: | 7517 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/3/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 746 | | BBLS_OIL | 91 | | BTU_GAS | 1207 | | CALC_BBLS_H2O | 746 | | CALC_BBLS_OIL | 91 | | CALC_GOR | 9714 | | CALC_MCF_GAS | 884 | | CASING_PRESS | 2300 | | GRAVITY_OIL | 56 | | MCF_GAS | 884 | | TUBING_PRESS | 1900 |
| | Perforation Data: | | Interval Top: | 7940 ft. | # Of Holes: | 0 | | Interval Bottom: | 13458 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3351 |
| Total Gas Produced (MCF) | 75852 |
| GOR | 22635 |
| GOR Determination | MCFE |
| Average BOE per Day | 44.930 |
| Average MCFE per Day | 260.593 |
| Federal Financial Assurance | i | |
|
|
