Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2017 Measured TD: 13524 ft. Vertical TD: 7305 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/20/2016 | | Proposed Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 360 FNL 2425 FEL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 1 FNL 2425 FEL | | Proposed Depth/Form: | 13448 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 925 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 925 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7818 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 7818 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6819 ft., Depth: 13448 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

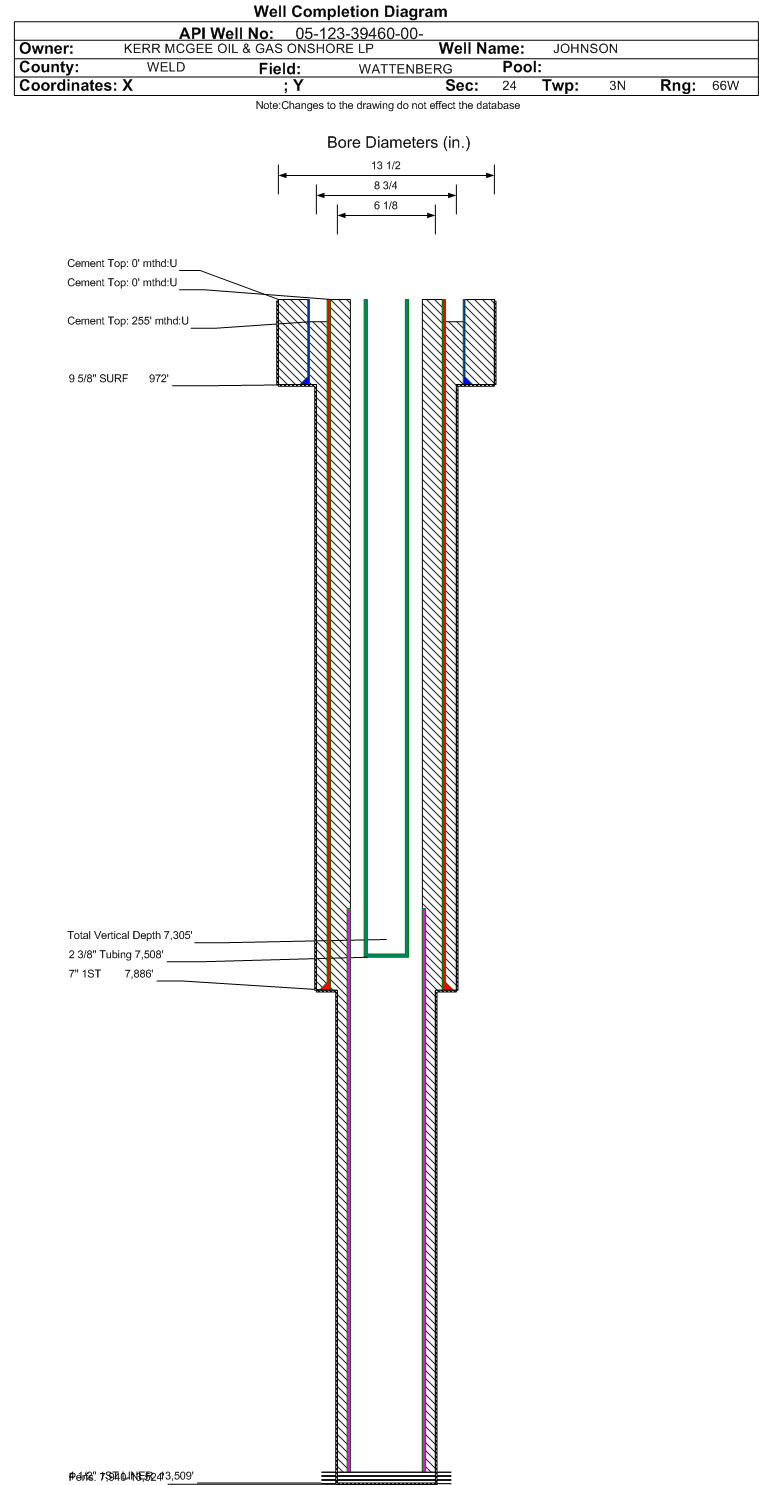

| Wellbore Completed | | Completion Date: | 10/27/2014 | | Spud Date: | 6/28/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13524 ft. | Measured PB depth: | 13497 ft. | | True Vertical TD: | 7305 ft. | True Vertical PB depth: | 7306 ft. | | Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 349 FNL 2271 FEL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 2 FNL 2459 FEL | | Log Types: | GR, CBL, (IND in API# 05-123-14662) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 972 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 383, Top: 0 ft., Bottom: 972 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7886 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 255 ft., Bottom: 7886 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6953 ft., Depth: 13509 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4710 ft. | | | | | SHARON SPRINGS | 7373 ft. | | | | | NIOBRARA | 7452 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2017 Interval Top: 7940 ft. Interval Bottom: 13524 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/26/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/9/2015 | Treatment End Date: | 3/12/2015 | | Treatment Summary: | "COMPLETED THROUGH AN OPEN HOLE LINER FROM 7940-13,524.
48 BBL ACID, 7,361 BBL CROSSLINK GEL, 8,977 BBL LINEAR GEL, 136,935 BBL SLICKWATER, - 153,321 BBL TOTAL FLUID
2,575,500# 30/50 OTTAWA/ST. PETERS, 1,899,820# 40/70 OTTAWA/ST. PETERS, - 4,475,320# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 153321 | Max pressure during treatment (psi): | 7758 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 48 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 8621 | | Fresh water used in treatment (bbls): | 153273 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4475320 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7508 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/6/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 297 | | BBLS_OIL | 184 | | BTU_GAS | 1207 | | CALC_BBLS_H2O | 297 | | CALC_BBLS_OIL | 184 | | CALC_GOR | 6380 | | CALC_MCF_GAS | 1174 | | CASING_PRESS | 3050 | | GRAVITY_OIL | 56 | | MCF_GAS | 1174 | | TUBING_PRESS | 2288 |
| | Perforation Data: | | Interval Top: | 7940 ft. | # Of Holes: | 0 | | Interval Bottom: | 13524 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3595 |
| Total Gas Produced (MCF) | 85461 |
| GOR | 23772 |
| GOR Determination | MCFE |
| Average BOE per Day | 50.130 |
| Average MCFE per Day | 290.748 |
| Federal Financial Assurance | i | |
|
|
