Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2020 Measured TD: 12891 ft. Vertical TD: 7868 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/14/2016 | | Proposed Top PZ Location: | Sec:6 Twp: 1S 67W | Footage: 116 FNL 1170 FEL | | Bottom Hole Location: | Sec:6 Twp: 1S 67W | Footage: 485 FSL 1026 FEL | | Proposed Depth/Form: | 13349 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 360, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1265 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 1265 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8369 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 880, Top: 0 ft., Bottom: 8369 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7371 ft., Depth: 13349 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

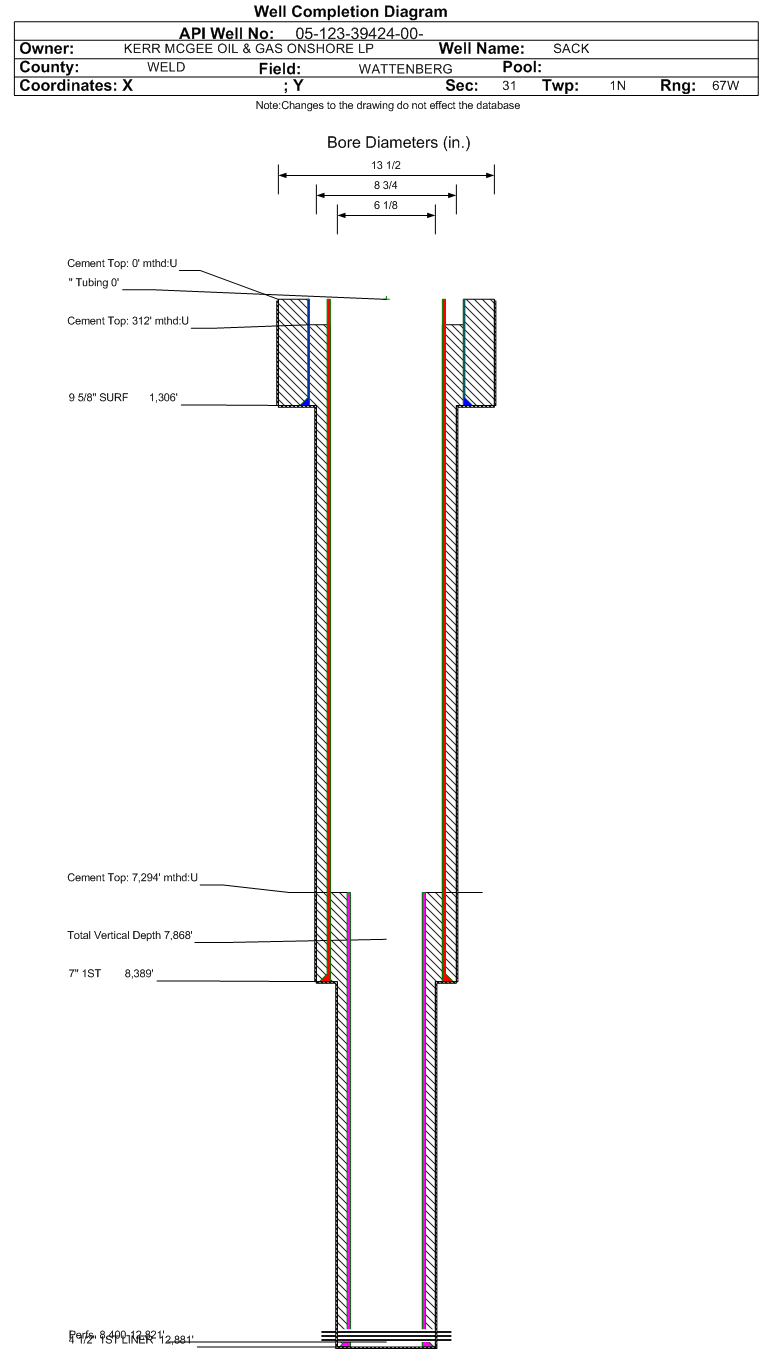

| Wellbore Completed | | Completion Date: | 10/24/2014 | | Spud Date: | 7/25/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12891 ft. | Measured PB depth: | 12833 ft. | | True Vertical TD: | 7868 ft. | True Vertical PB depth: | 7869 ft. | | Top PZ Location: | Sec:6 Twp: 1S 67W | Footage: 116 FNL 1170 FEL | | Bottom Hole Location: | Sec:6 Twp: 1S 67W | Footage: 485 FSL 1026 FEL | | Log Types: | CBL, GR, MUD, (RES in API# 05-123-39427) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1306 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 548, Top: 0 ft., Bottom: 1306 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8389 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 753, Top: 312 ft., Bottom: 8389 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7294 ft., Depth: 12881 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 370, Top: 7294 ft., Bottom: 12881 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 5197 ft. | | | | | SHARON SPRINGS | 7526 ft. | | | | | NIOBRARA | 7560 ft. | | | | | FORT HAYS | 8140 ft. | | | | | CODELL | 8217 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 3/1/2020 Interval Top: 8400 ft. Interval Bottom: 12821 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/23/2015 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/28/2015 | Treatment End Date: | 4/3/2015 | | Treatment Summary: | "PERF AND FRAC FROM 8400-12,821.
174,489 BBL SLICKWATER, - 2,344 BBL WATER, - 176,833 BBL TOTAL FLUID
4,575,589# 100 MESH OTTAWA/ST. PETERS, - 4,575,589# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 176833 | Max pressure during treatment (psi): | 7463 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 15 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1091 | | Fresh water used in treatment (bbls): | 176833 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4575589 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/2/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 198 | | BBLS_OIL | 163 | | BTU_GAS | 1344 | | CALC_BBLS_H2O | 198 | | CALC_BBLS_OIL | 163 | | CALC_GOR | 1834 | | CALC_MCF_GAS | 299 | | CASING_PRESS | 1200 | | GRAVITY_OIL | 50 | | MCF_GAS | 299 |
| | Perforation Data: | | Interval Top: | 8400 ft. | # Of Holes: | 384 | | Interval Bottom: | 12821 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 902 |
| Total Gas Produced (MCF) | 16961 |
| GOR | 18803 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.502 |
| Average MCFE per Day | 60.901 |
| Federal Financial Assurance | i | |
|
|
