Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2025 Measured TD: 12801 ft. Vertical TD: 7857 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/14/2016 | | Proposed Top PZ Location: | Sec:31 Twp: 1N 67W | Footage: 260 FSL 1710 FEL | | Bottom Hole Location: | Sec:6 Twp: 1S 67W | Footage: 460 FSL 2170 FEL | | Proposed Depth/Form: | 13098 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 240, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1265 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 1265 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8200 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 870, Top: 0 ft., Bottom: 8200 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7203 ft., Depth: 13098 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

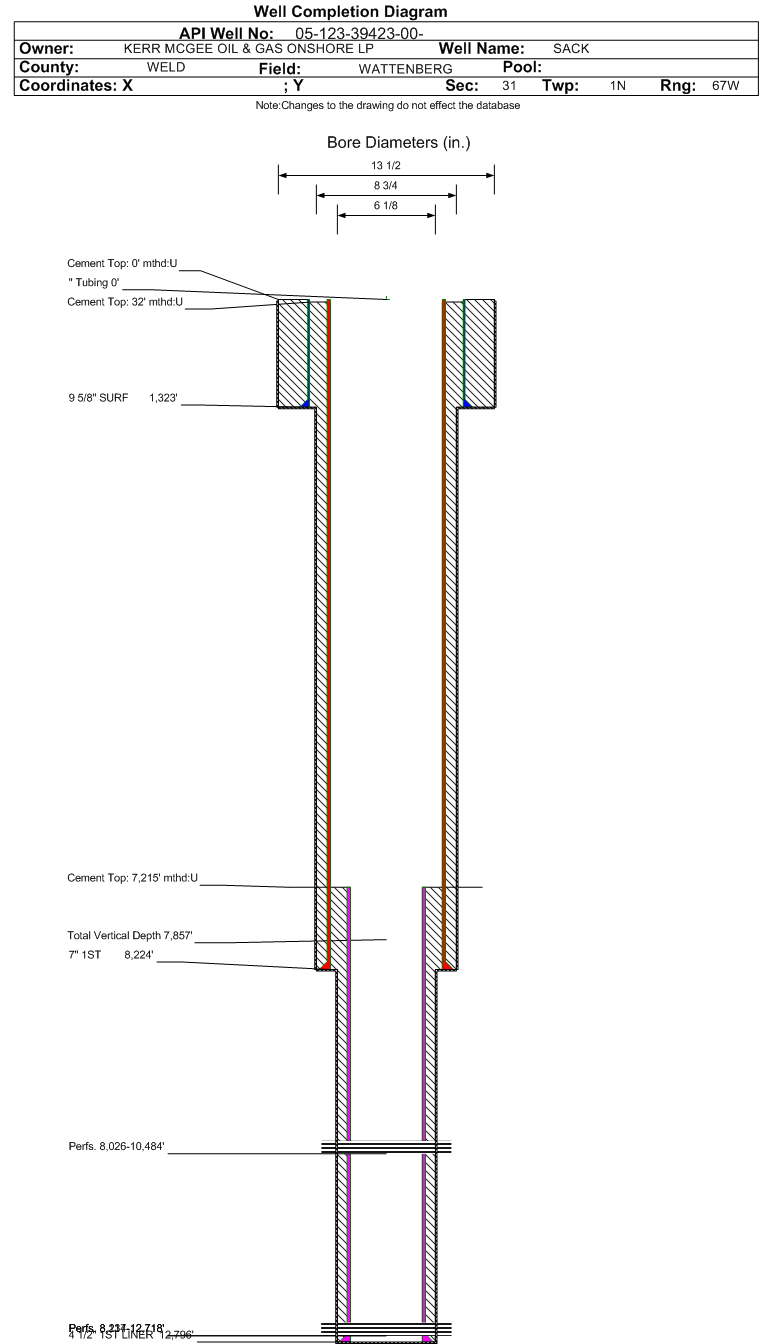

| Wellbore Completed | | Completion Date: | 12/5/2014 | | Spud Date: | 8/3/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12801 ft. | Measured PB depth: | 12750 ft. | | True Vertical TD: | 7857 ft. | True Vertical PB depth: | 7857 ft. | | Top PZ Location: | Sec:6 Twp: 1S 67W | Footage: 36 FNL 1655 FEL | | Bottom Hole Location: | Sec:6 Twp: 1S 67W | Footage: 486 FSL 2107 FEL | | Log Types: | CBL, MWD with GR, MUD, (MWD with RES in API# 05-123-39427) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1323 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 555, Top: 0 ft., Bottom: 1323 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8224 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 810, Top: 32 ft., Bottom: 8224 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7215 ft., Depth: 12796 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: 7215 ft., Bottom: 12796 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 5076 ft. | | | | | SHARON SPRINGS | 7408 ft. | | | | | NIOBRARA | 7439 ft. | | | | | FORT HAYS | 8029 ft. | | | | | CODELL | 8118 ft. | | | |
Formation CD-FH Formation Classification: OW Status: PR - 3/1/2025 Interval Top: 8234 ft. Interval Bottom: 12718 ft.| Completed Information for Formation CODELL-FORT HAYS | | 1st Production Date: | 4/23/2015 | Choke Size: | | | Formation Name: | CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/25/2015 | Treatment End Date: | 3/28/2015 | | Treatment Summary: | "PERF AND FRAC FROM 8234-12,718.
78,587 BBL SLICKWATER, 2,233 BBL WATER, - 80,820 BBL TOTAL FLUID
2,363,052# 40/70 GENOA/SAND HILLS, - 2,363,052# TOTAL SAND.
ENTERED FT. HAYS: 8026-8116; 9732-10,484
CODELL: 8117-9731; 10,485-12,718"
THIS IS A DESIGNATED SOURCE OF SUPPLY WELL;
(SEE ATTACHMENT)
| | Total fluid used in treatment (bbls): | 80820 | Max pressure during treatment (psi): | 7668 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 15 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 8434 | | Fresh water used in treatment (bbls): | 80820 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2363052 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/3/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 160 | | BBLS_OIL | 155 | | BTU_GAS | 1344 | | CALC_BBLS_H2O | 160 | | CALC_BBLS_OIL | 155 | | CALC_GOR | 1935 | | CALC_MCF_GAS | 300 | | CASING_PRESS | 1750 | | GRAVITY_OIL | 46 | | MCF_GAS | 300 |
| | Perforation Data: | | Interval Top: | 8234 ft. | # Of Holes: | 536 | | Interval Bottom: | 12718 ft. | Hole Size: | 0.37 in. |
|
Formation CODL Formation Classification: OW Status: CM - 2/15/2017 Interval Top: 8117 ft. Interval Bottom: 12718 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/15/2017 | Treatment End Date: | N/A | | Treatment Summary: | CODELL: 8117-9731; 10,485-12,718" | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8117 ft. | # Of Holes: | 536 | | Interval Bottom: | 12718 ft. | Hole Size: | 0.37 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 2/15/2017 Interval Top: 8026 ft. Interval Bottom: 10484 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/15/2017 | Treatment End Date: | N/A | | Treatment Summary: | ENTERED FT. HAYS: 8026-8116; 9732-10,484
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8026 ft. | # Of Holes: | 536 | | Interval Bottom: | 10484 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 330 |
| Total Gas Produced (MCF) | 8565 |
| GOR | 25954 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.929 |
| Average MCFE per Day | 28.596 |
| Federal Financial Assurance | i | |
|
|
