Wellbore #00 Wellbore Classification: OW Status: AB - 4/4/2025 Measured TD: 13340 ft. Vertical TD: 7303 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 4/4/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/26/2016 | | Proposed Top PZ Location: | Sec:23 Twp: 3N 68W | Footage: 922 FSL 360 FWL | | Bottom Hole Location: | Sec:24 Twp: 3N 68W | Footage: 922 FSL 50 FWL | | Proposed Depth/Form: | 13359 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1161 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 1161 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7775 ft., Weight: 25 , Citings Type: PLANNED | | Cement: | Sacks: 820, Top: 1335 ft., Bottom: 7775 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6646 ft., Depth: 13359 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

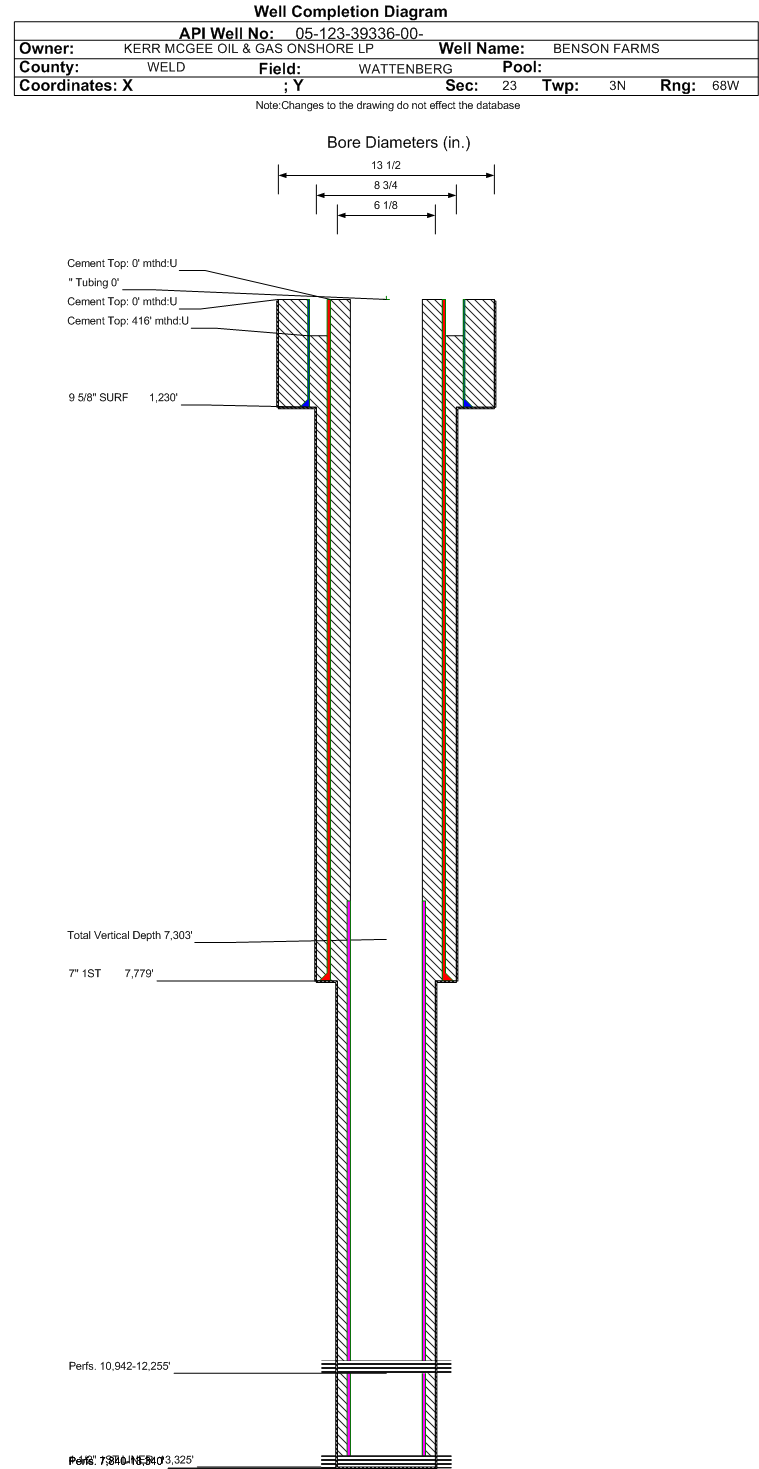

| Wellbore Completed | | Completion Date: | 8/22/2014 | | Spud Date: | 6/13/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13340 ft. | Measured PB depth: | 13323 ft. | | True Vertical TD: | 7303 ft. | True Vertical PB depth: | 7303 ft. | | Top PZ Location: | Sec:24 Twp: 3N 68W | Footage: 914 FSL 361 FWL | | Bottom Hole Location: | Sec:23 Twp: 3N 68W | Footage: 947 FSL 77 FWL | | Log Types: | CBL, GR, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1230 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 461, Top: 0 ft., Bottom: 1230 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7779 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 790, Top: 410 ft., Bottom: 7779 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6865 ft., Depth: 13325 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4189 ft. | | N | | | SHARON SPRINGS | 7092 ft. | | N | | | NIOBRARA | 7173 ft. | | N | | | FORT HAYS | 7523 ft. | | N | | | CODELL | 7580 ft. | | N | |
Formation CARL Formation Classification: OW Status: CM - 8/30/2016 Interval Top: 10942 ft. Interval Bottom: 12255 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 10942 ft. | # Of Holes: | 0 | | Interval Bottom: | 12255 ft. | Hole Size: | |
|
Formation CD-CRL Formation Classification: OW Status: AB - 4/4/2025 Interval Top: 7840 ft. Interval Bottom: 13340 ft.| Completed Information for Formation CODELL-CARLILE | | 1st Production Date: | 1/30/2014 | Choke Size: | | | Formation Name: | CODELL-CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/1/2014 | Treatment End Date: | 12/23/2014 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7840-13340.
99564 BBL SLICKWATER,99564 BBL TOTAL FLUID.
3225297# 40/70 GENOA/SAND HILLS, 3225297# TOTAL SAND.
FLOWS FROM CODELL 7840-10942; 11669-11826; 12255-13340;
CARLILE 10942-11669; 11826-12255' | | Total fluid used in treatment (bbls): | 99564 | Max pressure during treatment (psi): | 7251 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.82 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 9 | | Fresh water used in treatment (bbls): | 99564 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3225297 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/19/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 127 | | BBLS_OIL | 83 | | BTU_GAS | 1245 | | CALC_BBLS_H2O | 127 | | CALC_BBLS_OIL | 83 | | CALC_GOR | 2638 | | CALC_MCF_GAS | 219 | | CASING_PRESS | 1150 | | GRAVITY_OIL | 50 | | MCF_GAS | 219 |
| | Perforation Data: | | Interval Top: | 7840 ft. | # Of Holes: | 0 | | Interval Bottom: | 13340 ft. | Hole Size: | 0 in. |
|
Formation CODL Formation Classification: OW Status: CM - 8/30/2016 Interval Top: 7840 ft. Interval Bottom: 13340 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7840 ft. | # Of Holes: | 0 | | Interval Bottom: | 13340 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/04/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
