Wellbore #00 Wellbore Classification: OW Status: PR - 7/1/2022 Measured TD: 12717 ft. Vertical TD: 7700 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/1/2022 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/19/2016 | | Proposed Top PZ Location: | Sec:33 Twp: 2N 67W | Footage: 172 FSL 1310 FWL | | Bottom Hole Location: | Sec:33 Twp: 2N 67W | Footage: 460 FNL 1310 FWL | | Proposed Depth/Form: | 12744 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1104 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 1104 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8095 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 860, Top: 0 ft., Bottom: 8095 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7092 ft., Depth: 12744 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

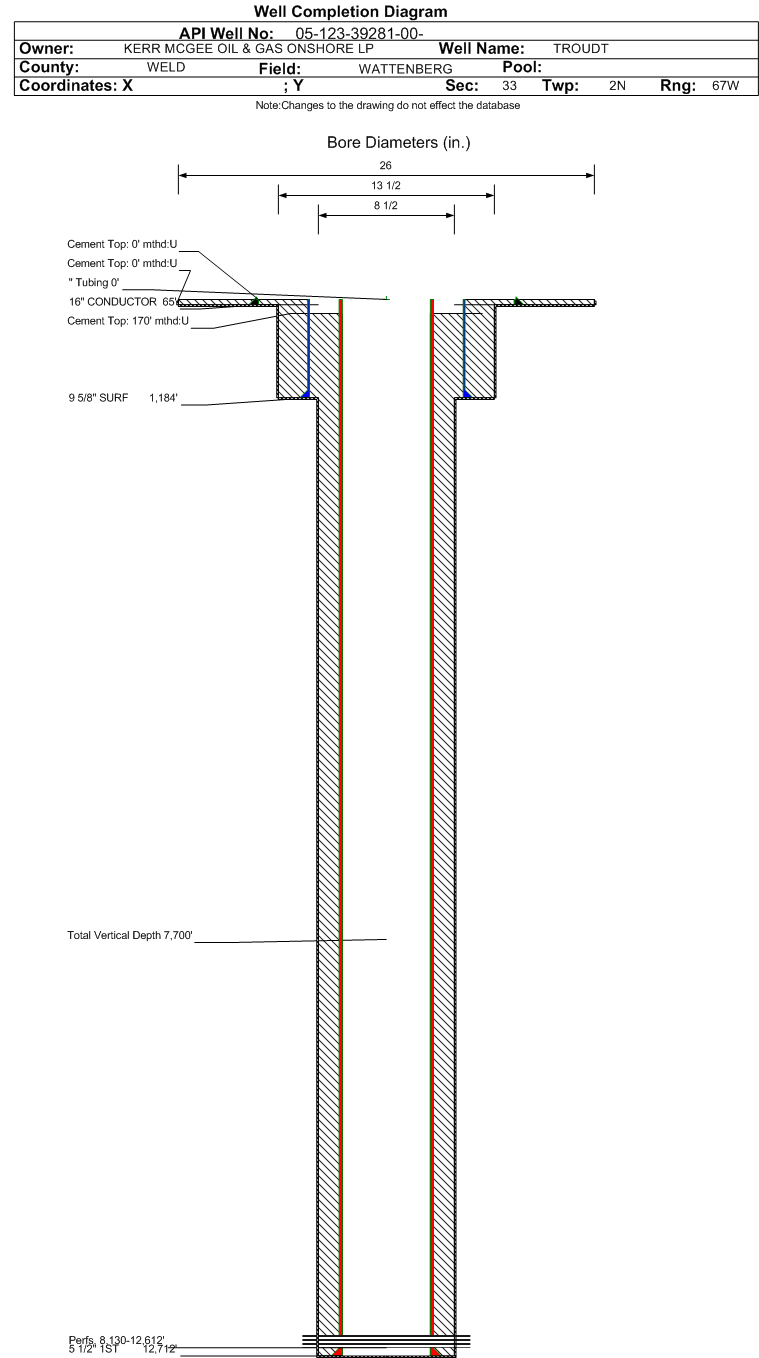

| Wellbore Completed | | Completion Date: | 4/30/2015 | | Spud Date: | 3/21/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 12717 ft. | Measured PB depth: | 12620 ft. | | True Vertical TD: | 7700 ft. | True Vertical PB depth: | 7699 ft. | | Top PZ Location: | Sec:33 Twp: 2N 67W | Footage: 279 FSL 1315 FWL | | Bottom Hole Location: | Sec:33 Twp: 2N 67W | Footage: 460 FNL 1293 FWL | | Log Types: | CBL, LWD, (IND in 123-08962, 123-07846) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 65 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1184 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 457, Top: 0 ft., Bottom: 1184 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12712 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1650, Top: 170 ft., Bottom: 12712 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4749 ft. | | | | | SHARON SPRINGS | 7409 ft. | | | | | NIOBRARA | 7496 ft. | | | | | FORT HAYS | 7982 ft. | | | | | CODELL | 8125 ft. | | | |
Formation CD-FH Formation Classification: OW Status: PR - 7/1/2022 Interval Top: 8130 ft. Interval Bottom: 12612 ft.| Completed Information for Formation CODELL-FORT HAYS | | 1st Production Date: | 10/23/2015 | Choke Size: | | | Formation Name: | CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/24/2015 | Treatment End Date: | 10/16/2015 | | Treatment Summary: | "PERF AND FRAC FROM 8130-12,612.
595 BBL ACID, 222,228 BBL SLICKWATER, 4,444 BBL WATER, - 227,267 BBL TOTAL FLUID
1,789,550# GENOA/SAND HILLS, 11,204,968# OTTAWA/ST. PETERS, 12,994,518# TOTAL SAND.
ENTERED CODELL 8130-9330; 9583-12,612
FT. HAYS 9330-9583
THIS IS A DESIGNATED SOURCE OF SUPPLY WELL;
(SEE ATTACHMENT)
| | Total fluid used in treatment (bbls): | 227267 | Max pressure during treatment (psi): | 7553 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 25 | | Total acid used in treatment (bbls): | 595 | Min frac gradient (psi/ft): | 0.86 | | Recycled water used in treatment (bbls): | 1420 | Total flowback volume recovered (bbls): | 4275 | | Fresh water used in treatment (bbls): | 225252 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 12994518 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/30/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 574 | | BBLS_OIL | 105 | | BTU_GAS | 1349 | | CALC_BBLS_H2O | 574 | | CALC_BBLS_OIL | 105 | | CALC_GOR | 1143 | | CALC_MCF_GAS | 120 | | CASING_PRESS | 1090 | | GRAVITY_OIL | 50 | | MCF_GAS | 120 |
| | Perforation Data: | | Interval Top: | 8130 ft. | # Of Holes: | 712 | | Interval Bottom: | 12612 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2275 |
| Total Gas Produced (MCF) | 67520 |
| GOR | 29679 |
| GOR Determination | MCFE |
| Average BOE per Day | 38.131 |
| Average MCFE per Day | 221.150 |
| Federal Financial Assurance | i | |
|
|
