Wellbore #00 Wellbore Classification: OW Status: PR - 2/19/2015 Measured TD: 13047 ft. Vertical TD: 7285 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 2/19/2015 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/30/2016 | | Proposed Top PZ Location: | Sec:12 Twp: 2N 66W | Footage: 355 FNL 1663 FWL | | Bottom Hole Location: | Sec:1 Twp: 2N 66W | Footage: 484 FNL 1728 FWL | | Proposed Depth/Form: | 11971 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1228 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 470, Top: 0 ft., Bottom: 1228 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7891 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 7891 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6841 ft., Depth: 13215 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

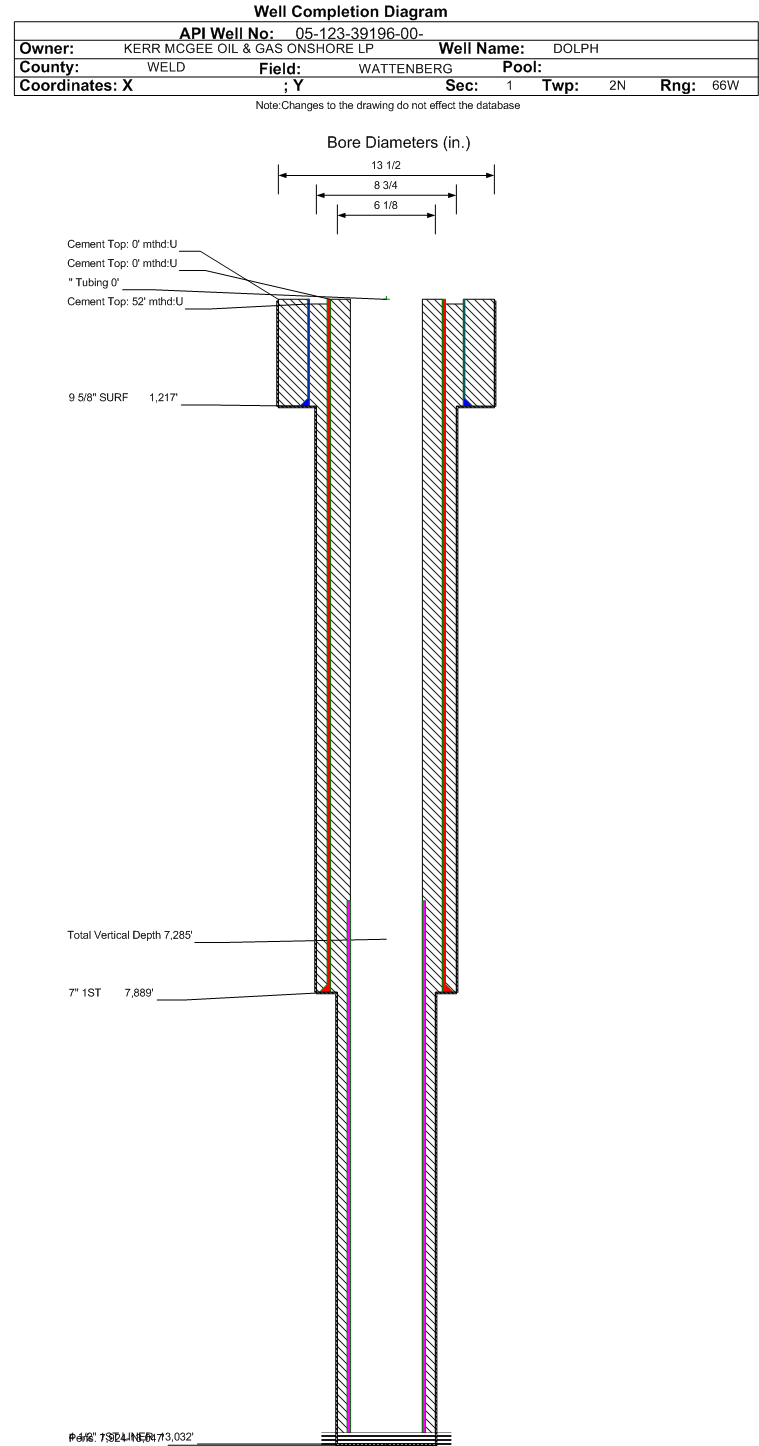

| Wellbore Completed | | Completion Date: | 10/7/2014 | | Spud Date: | 7/10/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13047 ft. | Measured PB depth: | 13023 ft. | | True Vertical TD: | 7285 ft. | True Vertical PB depth: | 7285 ft. | | Top PZ Location: | Sec:12 Twp: 2N 66W | Footage: 355 FNL 1663 FWL | | Bottom Hole Location: | Sec:1 Twp: 2N 66W | Footage: 484 FNL 1728 FWL | | Log Types: | CBL, GR, (DIL in API# 05-123-22073) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1217 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 495, Top: 0 ft., Bottom: 1217 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7889 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 712, Top: 52 ft., Bottom: 7889 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6848 ft., Depth: 13032 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4618 ft. | | | | | SHARON SPRINGS | 7337 ft. | | | | | NIOBRARA | 7439 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 2/19/2015 Interval Top: 7924 ft. Interval Bottom: 13047 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 2/10/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/31/2015 | Treatment End Date: | 2/4/2015 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7924-13047.
12 BBL ACID, 7604 BBL CROSSLINK GEL, 9201 BBL LINEAR GEL, 130632 BBL SLICKWATER, 147450 BBL TOTAL FLUID.
221290# 30/50 OTTAWA/ST. PETERS, 3875553# 40/70 GENOA 40/70, 4096843# TOTAL SAND. | | Total fluid used in treatment (bbls): | 147450 | Max pressure during treatment (psi): | 7494 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.92 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 740 | | Fresh water used in treatment (bbls): | 147438 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4096843 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/19/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 112 | | BBLS_OIL | 101 | | BTU_GAS | 1244 | | CALC_BBLS_H2O | 112 | | CALC_BBLS_OIL | 101 | | CALC_GOR | 3129 | | CALC_MCF_GAS | 316 | | CASING_PRESS | 2150 | | GRAVITY_OIL | 54 | | MCF_GAS | 316 |
| | Perforation Data: | | Interval Top: | 7924 ft. | # Of Holes: | 0 | | Interval Bottom: | 13047 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 6867 |
| Total Gas Produced (MCF) | 55461 |
| GOR | 8076 |
| GOR Determination | BOE |
| Average BOE per Day | 45.097 |
| Average MCFE per Day | 261.544 |
| Federal Financial Assurance | i | |
|
|
