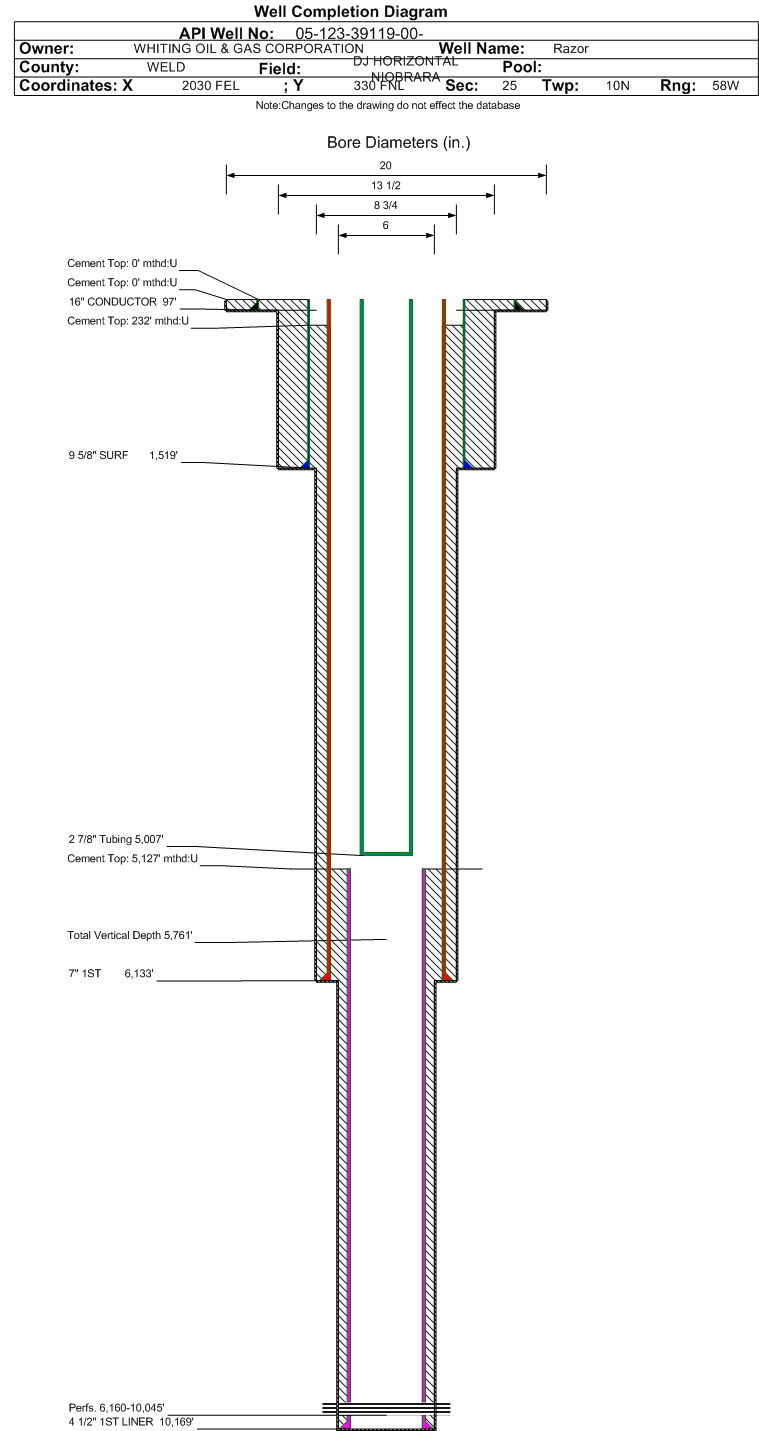

Wellbore #00 Wellbore Classification: OW Status: PR - 10/10/2014 Measured TD: 10183 ft. Vertical TD: 5761 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/10/2014 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/13/2016 | | Proposed Top PZ Location: | Sec:25 Twp: 10N 58W | Footage: 1104 FNL 2401 FEL | | Bottom Hole Location: | Sec:25 Twp: 10N 58W | Footage: 600 FSL 2640 FEL | | Proposed Depth/Form: | 9693 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-368 , Unit Acreage: 640, Drill Unit: S. 25:All | | Casing: | String Type: CONDUCTOR, Hole Size: 16.167 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 667, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6137 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 412, Top: 0 ft., Bottom: 6137 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5319 ft., Depth: 10204 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 337, Top: 5319 ft., Bottom: 10204 ft. |
| | |
| Wellbore Completed | | Completion Date: | 7/31/2014 | | Spud Date: | 7/21/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 10183 ft. | Measured PB depth: | 10121 ft. | | True Vertical TD: | 5761 ft. | True Vertical PB depth: | 5761 ft. | | Top PZ Location: | Sec:25 Twp: 10N 58W | Footage: 634 FNL 2503 FEL | | Bottom Hole Location: | Sec:25 Twp: 10N 58W | Footage: 635 FSL 2646 FEL | | Log Types: | Mud, MWD, Induction, Density-Neutron, Triple Combo, Spectral GR, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 75 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 97 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1519 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 667, Top: 0 ft., Bottom: 1519 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6133 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 232 ft., Bottom: 6133 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5127 ft., Depth: 10169 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 401, Top: 5127 ft., Bottom: 10169 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1462 ft. | | N | N | | HYGIENE | 3284 ft. | | N | N | | SHARON SPRINGS | 5723 ft. | | N | N | | NIOBRARA | 5729 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 10/10/2014 Interval Top: 6160 ft. Interval Bottom: 10045 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/10/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/22/2014 | Treatment End Date: | 9/1/2014 | | Treatment Summary: | 30-stage QuadraFrac: 117900# 40/70 Wh snd, 4808700# 20/40 Wh snd, 292 bbls 28% HCl, 67464 bbls Crosslink Gel, 9584 bbls X-linked Fluid, 22029 bbls Slickwater. | | Total fluid used in treatment (bbls): | 99369 | Max pressure during treatment (psi): | 7438 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 30 | | Total acid used in treatment (bbls): | 292 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 16036 | | Fresh water used in treatment (bbls): | 99077 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4926600 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 5007 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/10/2014 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 668 | | BBLS_OIL | 967 | | BTU_GAS | 1471 | | CALC_BBLS_H2O | 668 | | CALC_BBLS_OIL | 967 | | CALC_GOR | 554 | | CALC_MCF_GAS | 536 | | CASING_PRESS | 110 | | GRAVITY_OIL | 36 | | MCF_GAS | 536 | | TUBING_PRESS | 200 |
| | Perforation Data: | | Interval Top: | 6160 ft. | # Of Holes: | 1080 | | Interval Bottom: | 10045 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 643 |
| Total Gas Produced (MCF) | 2734 |
| GOR | 4251 |
| GOR Determination | BOE |
| Average BOE per Day | 2.822 |
| Average MCFE per Day | 16.365 |
| Federal Financial Assurance | i | |
|
|
