Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2022 Measured TD: 17339 ft. Vertical TD: 7458 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2022 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/7/2016 | | Proposed Top PZ Location: | Sec:14 Twp: 2N 67W | Footage: 1572 FSL 2399 FEL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 463 FNL 2423 FEL | | Proposed Depth/Form: | 17529 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1042 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 310, Top: 0 ft., Bottom: 1042 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7901 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 7901 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6898 ft., Depth: 17529 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

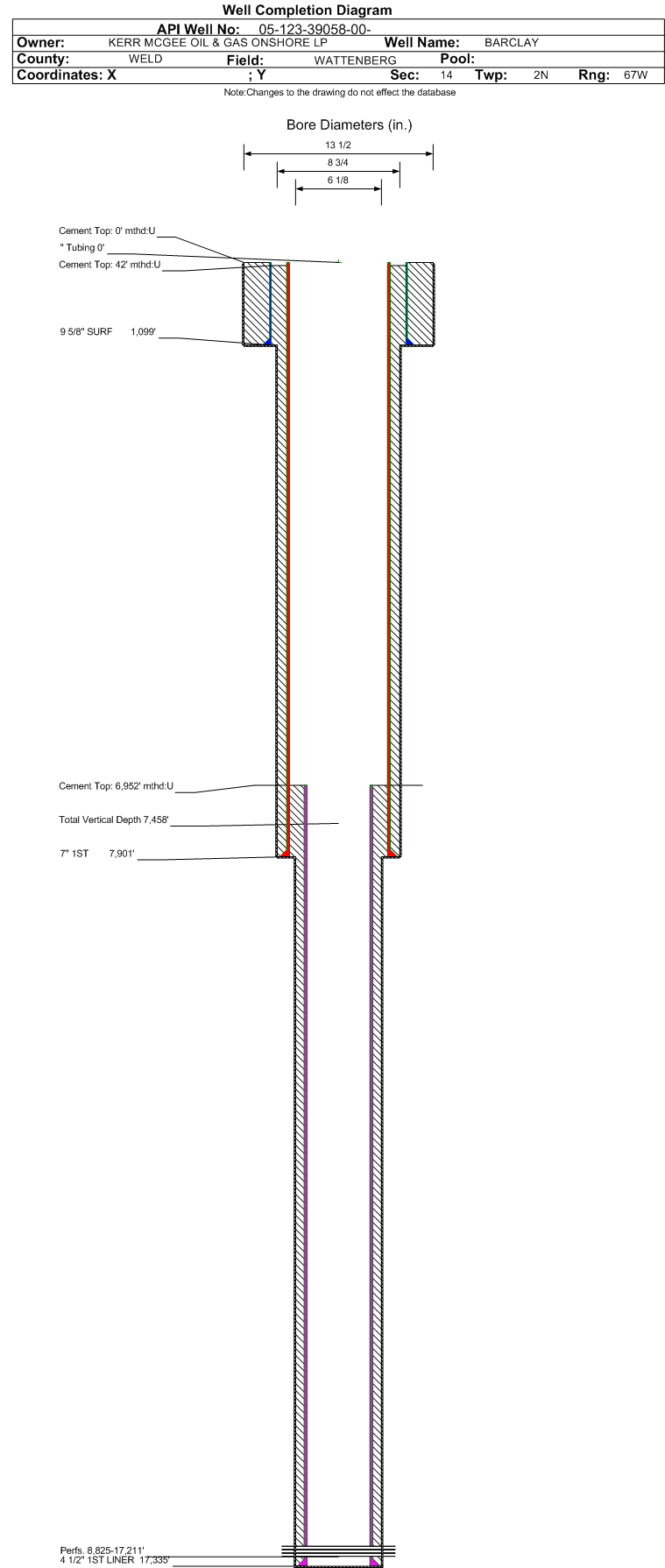

| Wellbore Completed | | Completion Date: | 4/7/2015 | | Spud Date: | 11/30/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 17339 ft. | Measured PB depth: | 17287 ft. | | True Vertical TD: | 7458 ft. | True Vertical PB depth: | 7459 ft. | | Top PZ Location: | Sec:14 Twp: 2N 67W | Footage: 1572 FSL 2399 FEL | | Bottom Hole Location: | Sec:11 Twp: 2N 67W | Footage: 463 FNL 2423 FEL | | Log Types: | CBL, LWD, (DIL in 123-23496) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1099 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 421, Top: 0 ft., Bottom: 1099 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7901 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 690, Top: 42 ft., Bottom: 7901 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6952 ft., Depth: 17335 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 6952 ft., Bottom: 17335 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4502 ft. | | | | | SHARON SPRINGS | 7221 ft. | | | | | NIOBRARA | 7303 ft. | | | | | FORT HAYS | 7728 ft. | | | | | CODELL | 7845 ft. | | | |
Formation NBFHC Formation Classification: OW Status: PR - 12/1/2022 Interval Top: 8825 ft. Interval Bottom: 17211 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 9/22/2015 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/8/2015 | Treatment End Date: | 9/17/2015 | | Treatment Summary: | "PERF AND FRAC FROM 8825-17,211.
36 BBL ACID, 163,132 BBL SLICKWATER, 8,413 BBL WATER, - 171,581 BBL TOTAL FLUID
5,102,296# 40/70 GENOA/SAND HILLS, - 5,102,296# TOTAL SAND.
ENTERED CODELL 8825 -12,793; 14,922 - 17,211
FT. HAYS 12,793 - 13002; 13,235 - 13,246; 13,263 - 14,922
NIOBRARA 13,002 - 13,235; 13,246- 13,263;"
THIS IS A DESIGNATED SOURCE OF SUPPLY WELL;
(SEE ATTACHMENT)
| | Total fluid used in treatment (bbls): | 171581 | Max pressure during treatment (psi): | 7205 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 31 | | Total acid used in treatment (bbls): | 36 | Min frac gradient (psi/ft): | 0.76 | | Recycled water used in treatment (bbls): | 450 | Total flowback volume recovered (bbls): | 1295 | | Fresh water used in treatment (bbls): | 171095 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 5102296 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/25/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 184 | | BBLS_OIL | 101 | | BTU_GAS | 1385 | | CALC_BBLS_H2O | 184 | | CALC_BBLS_OIL | 101 | | CALC_GOR | 1772 | | CALC_MCF_GAS | 179 | | CASING_PRESS | 650 | | GRAVITY_OIL | 50 | | MCF_GAS | 179 |
| | Perforation Data: | | Interval Top: | 8825 ft. | # Of Holes: | 664 | | Interval Bottom: | 17211 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4082 |
| Total Gas Produced (MCF) | 96202 |
| GOR | 23567 |
| GOR Determination | MCFE |
| Average BOE per Day | 56.657 |
| Average MCFE per Day | 328.625 |
| Federal Financial Assurance | i | |
|
|
