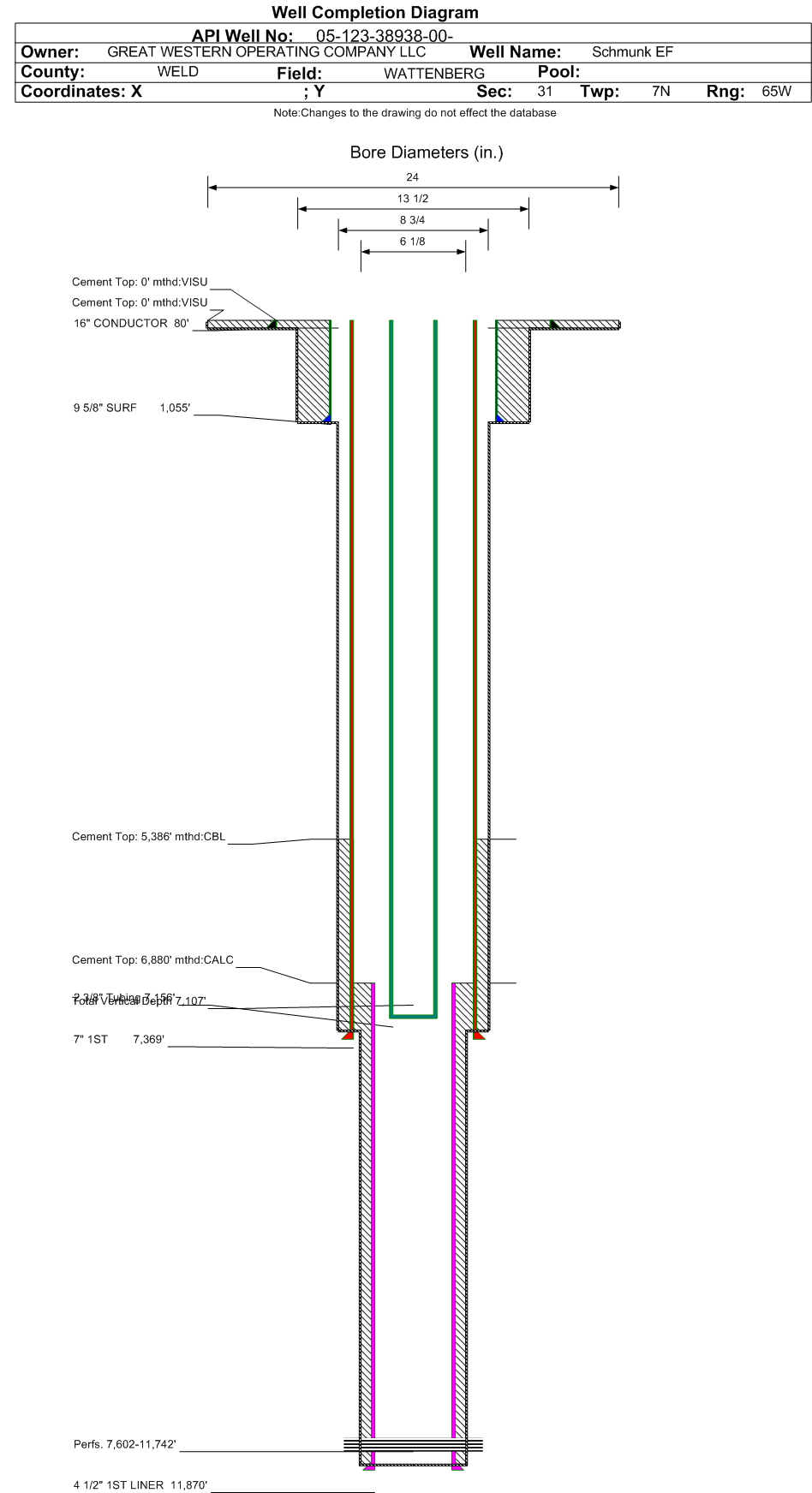

Wellbore #00 Wellbore Classification: OW Status: SI - 1/1/2024 Measured TD: 11875 ft. Vertical TD: 7107 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 1/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/12/2016 | | Proposed Top PZ Location: | Sec:31 Twp: 7N 65W | Footage: 460 FNL 1097 FEL | | Bottom Hole Location: | Sec:31 Twp: 7N 65W | Footage: 470 FSL 1092 FEL | | Proposed Depth/Form: | 11950 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 61, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1025 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 426, Top: 0 ft., Bottom: 1025 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7596 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 693, Top: 725 ft., Bottom: 7596 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6765 ft., Depth: 11950 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 12/22/2014 | | Spud Date: | 9/3/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 11875 ft. | Measured PB depth: | 11823 ft. | | True Vertical TD: | 7107 ft. | True Vertical PB depth: | 7107 ft. | | Top PZ Location: | Sec:31 Twp: 7N 65W | Footage: 529 FNL 1092 FEL | | Bottom Hole Location: | Sec:31 Twp: 7N 65W | Footage: 485 FSL 1124 FEL | | Log Types: | MWD/LWD, Mud Log, CBL, Triple Combo | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 152, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1055 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 1055 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7369 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 695, Top: 5386 ft., Bottom: 7369 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6880 ft., Depth: 11870 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 342, Top: 6880 ft., Bottom: 11870 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3831 ft. | 4187 ft. | N | N | | SUSSEX | 4363 ft. | 4703 ft. | N | N | | SHANNON | 5042 ft. | 5189 ft. | N | N | | SHARON SPRINGS | 7150 ft. | | N | N | | NIOBRARA | 7325 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: SI - 1/1/2024 Interval Top: 7602 ft. Interval Bottom: 11742 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/8/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/5/2015 | Treatment End Date: | 2/13/2015 | | Treatment Summary: | 690 bbls 15% HCL Acid; 280,000# 40/70 Sand; 3,640,000# 20/40 Sand; 270,480 # CRC 20/40; 78,990 bbls Gelled Fluid; Flowback determined from well test separator. | | Total fluid used in treatment (bbls): | 79680 | Max pressure during treatment (psi): | 4722 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | 690 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 14005 | | Fresh water used in treatment (bbls): | 78990 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4190480 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7156 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/10/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 189 | | BBLS_OIL | 251 | | BTU_GAS | 1282 | | CALC_BBLS_H2O | 189 | | CALC_BBLS_OIL | 251 | | CALC_GOR | 752 | | CALC_MCF_GAS | 448 | | CASING_PRESS | 1336 | | GRAVITY_OIL | 42 | | MCF_GAS | 448 | | TUBING_PRESS | 863 |
| | Perforation Data: | | Interval Top: | 7602 ft. | # Of Holes: | 840 | | Interval Bottom: | 11742 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
04/29/2025 |
| Defined Inactive (SI) | Y | Last Production
12/31/2023 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
