Wellbore #00 Wellbore Classification: OW Status: SI - 10/1/2023 Measured TD: 12094 ft. Vertical TD: 7177 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 10/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/12/2016 | | Proposed Top PZ Location: | Sec:31 Twp: 7N 65W | Footage: 460 FNL 470 FEL | | Bottom Hole Location: | Sec:31 Twp: 7N 65W | Footage: 470 FSL 470 FEL | | Proposed Depth/Form: | 12095 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 61, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1025 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 426, Top: 0 ft., Bottom: 1025 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7740 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 707, Top: 725 ft., Bottom: 7740 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6963 ft., Depth: 12096 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

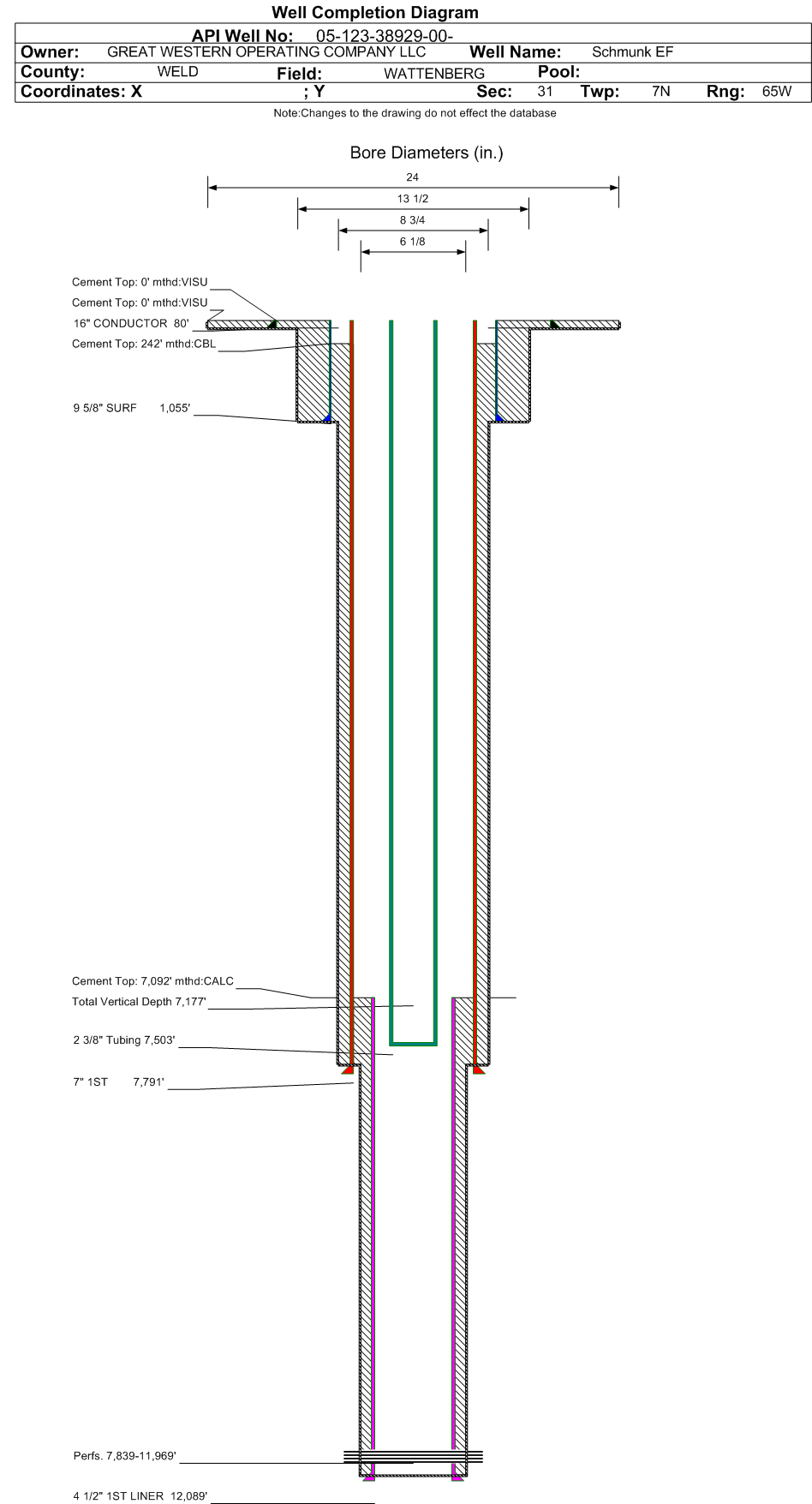

| Wellbore Completed | | Completion Date: | 12/3/2014 | | Spud Date: | 8/31/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12094 ft. | Measured PB depth: | 12042 ft. | | True Vertical TD: | 7177 ft. | True Vertical PB depth: | 7176 ft. | | Top PZ Location: | Sec:31 Twp: 7N 65W | Footage: 554 FNL 485 FEL | | Bottom Hole Location: | Sec:31 Twp: 7N 65W | Footage: 480 FSL 478 FEL | | Log Types: | MWD/LWD, Mud Log, CBL (Triple Combo 123-38938) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 152, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1055 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 1055 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7791 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 723, Top: 242 ft., Bottom: 7791 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7092 ft., Depth: 12089 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 340, Top: 7092 ft., Bottom: 12089 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3831 ft. | 4187 ft. | N | N | | SUSSEX | 4363 ft. | 4703 ft. | N | N | | SHANNON | 5042 ft. | 5189 ft. | N | N | | SHARON SPRINGS | 7260 ft. | | N | N | | NIOBRARA | 7350 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: SI - 10/1/2023 Interval Top: 7839 ft. Interval Bottom: 11969 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/4/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/4/2015 | Treatment End Date: | 2/13/2015 | | Treatment Summary: | 666 bbls 15% HCL Acid; 279,840 # 40/70 Sand; 3,640,080 # 20/40 Sand; 280,000 # CRC 20/40; 80,465 bbls Gelled Fluid; Flowback determined from well test separator. | | Total fluid used in treatment (bbls): | 81131 | Max pressure during treatment (psi): | 4876 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | 666 | Min frac gradient (psi/ft): | 0.11 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 12935 | | Fresh water used in treatment (bbls): | 80465 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4199920 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7503 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/8/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 504 | | BBLS_OIL | 481 | | BTU_GAS | 1282 | | CALC_BBLS_H2O | 504 | | CALC_BBLS_OIL | 481 | | CALC_GOR | 609 | | CALC_MCF_GAS | 293 | | CASING_PRESS | 1225 | | GRAVITY_OIL | 42 | | MCF_GAS | 293 | | TUBING_PRESS | 686 |
| | Perforation Data: | | Interval Top: | 7839 ft. | # Of Holes: | 840 | | Interval Bottom: | 11969 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
01/29/2025 |
| Defined Inactive (SI) | Y | Last Production
09/30/2023 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
