Wellbore #00 Wellbore Classification: OW Status: PR - 8/1/2020 Measured TD: 11604 ft. Vertical TD: 6892 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 8/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/20/2016 | | Proposed Top PZ Location: | Sec:23 Twp: 6N 65W | Footage: 783 FNL 75 FWL | | Bottom Hole Location: | Sec:23 Twp: 6N 65W | Footage: 225 FSL 75 FWL | | Proposed Depth/Form: | 11648 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 18.5 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 0 , Citings Type: PLANNED | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 590 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 590 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7323 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: , Bottom: 7323 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7173 ft., Depth: 11648 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

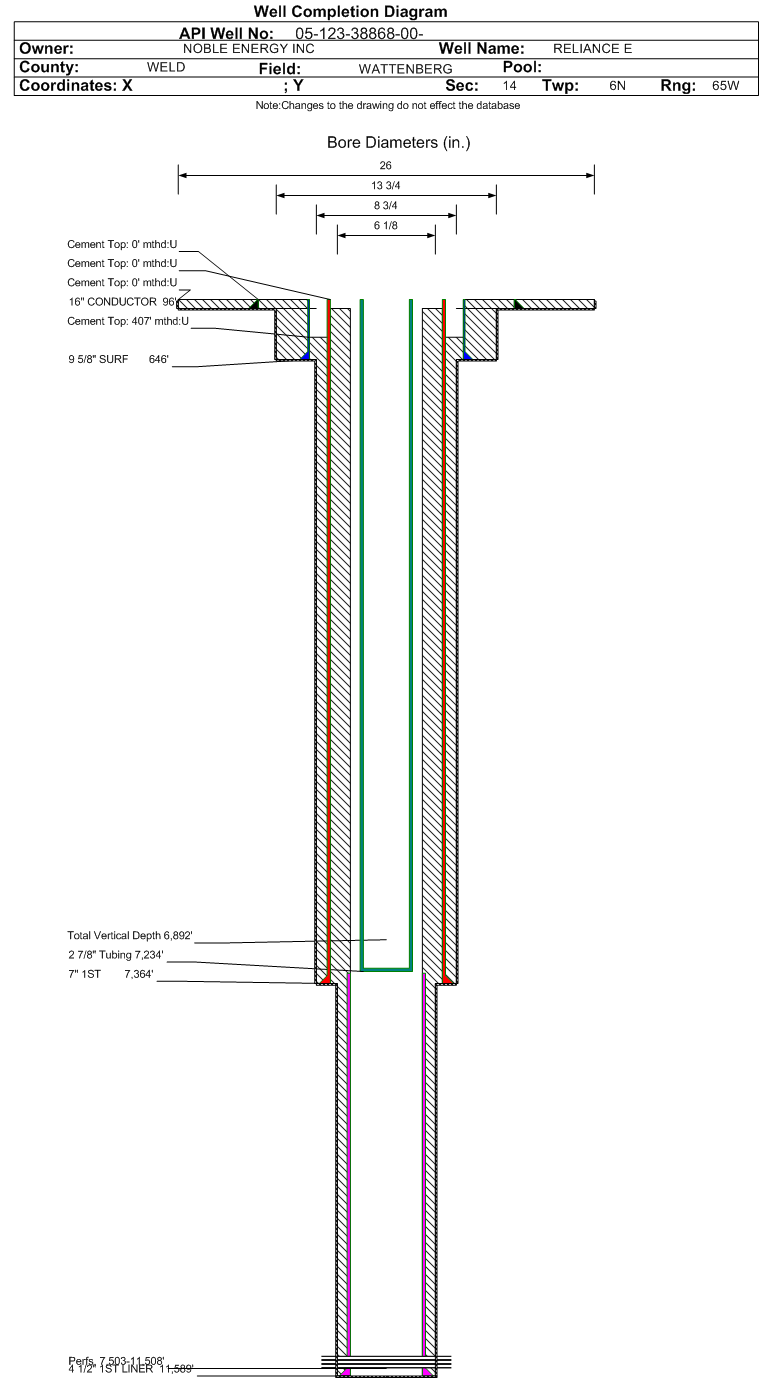

| Wellbore Completed | | Completion Date: | 5/25/2014 | | Spud Date: | 5/19/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 11604 ft. | Measured PB depth: | 11587 ft. | | True Vertical TD: | 6892 ft. | True Vertical PB depth: | 6892 ft. | | Top PZ Location: | Sec:23 Twp: 6N 65W | Footage: 987 FNL 115 FWL | | Bottom Hole Location: | Sec:23 Twp: 6N 65W | Footage: 226 FSL 79 FWL | | Log Types: | CBL/Mud/Gamma. Ref well, Reliance E 23-68-01HN | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 96 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 48, Top: 0 ft., Bottom: 96 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 646 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 646 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7364 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 601, Top: 407 ft., Bottom: 7364 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7254 ft., Depth: 11589 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1003 ft. | | | | | PARKMAN | 3658 ft. | | | | | SUSSEX | 4213 ft. | | | | | SHANNON | 5005 ft. | | | | | NIOBRARA | 6918 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 8/1/2020 Interval Top: 7503 ft. Interval Bottom: 11508 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/21/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/31/2014 | Treatment End Date: | 9/2/2014 | | Treatment Summary: | Frac'd the Niobrara w/ 3565949 gals of Silverstim and Slick Water with 4693340#'s of Ottawa sand. | | Total fluid used in treatment (bbls): | 84903 | Max pressure during treatment (psi): | 5641 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 22 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.93 | | Recycled water used in treatment (bbls): | 4775 | Total flowback volume recovered (bbls): | 613 | | Fresh water used in treatment (bbls): | 80127 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 4693340 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 7234 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/29/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 693 | | BBLS_OIL | 559 | | BTU_GAS | 1352 | | CALC_BBLS_H2O | 693 | | CALC_BBLS_OIL | 559 | | CALC_GOR | 1568 | | CALC_MCF_GAS | 877 | | CASING_PRESS | 2423 | | GRAVITY_OIL | 50 | | MCF_GAS | 877 | | TUBING_PRESS | 1596 |
| | Perforation Data: | | Interval Top: | 7503 ft. | # Of Holes: | | | Interval Bottom: | 11508 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2239 |
| Total Gas Produced (MCF) | 32384 |
| GOR | 14463 |
| GOR Determination | BOE |
| Average BOE per Day | 21.380 |
| Average MCFE per Day | 124.027 |
| Federal Financial Assurance | i | |
|
|
