Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2025 Measured TD: 10287 ft. Vertical TD: 6019 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/19/2016 | | Proposed Top PZ Location: | Sec:28 Twp: 9N 59W | Footage: 902 FSL 1980 FEL | | Bottom Hole Location: | Sec:28 Twp: 9N 59W | Footage: 675 FNL 1980 FEL | | Proposed Depth/Form: | 10119 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-376 , Unit Acreage: 1920, Drill Unit: S.20,28,&29:All | | Casing: | String Type: CONDUCTOR, Hole Size: 18.5 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 0 , Citings Type: PLANNED | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 550 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 550 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6339 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 430, Top: , Bottom: 6339 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6189 ft., Depth: 10119 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

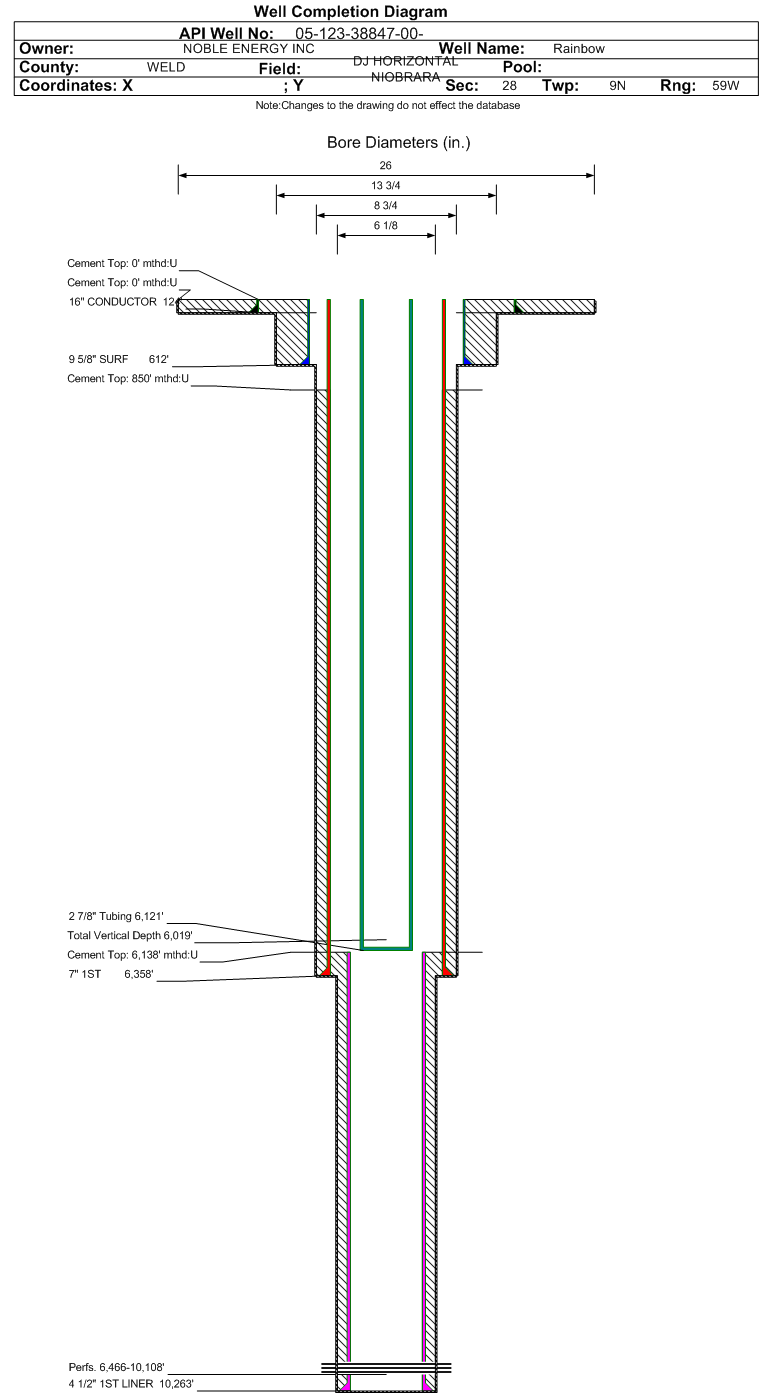

| Wellbore Completed | | Completion Date: | 7/27/2014 | | Spud Date: | 7/22/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 10287 ft. | Measured PB depth: | 10218 ft. | | True Vertical TD: | 6019 ft. | True Vertical PB depth: | 6019 ft. | | Top PZ Location: | Sec:28 Twp: 9N 59W | Footage: 867 FSL 2087 FEL | | Bottom Hole Location: | Sec:28 Twp: 9N 59W | Footage: 675 FNL 1980 FEL | | Log Types: | CBL/Mud/Gamma | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 124 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 124 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 612 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 612 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6358 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 471, Top: 850 ft., Bottom: 6358 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6138 ft., Depth: 10263 ft., Weight: 11.60 , Citings Type: ACTUAL | | Cement: | Sacks: 310, Top: 6138 ft., Bottom: 10263 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 2475 ft. | | | | | SUSSEX | 4063 ft. | | | | | NIOBRARA | 6161 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 3/1/2025 Interval Top: 6466 ft. Interval Bottom: 10108 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/4/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/16/2014 | Treatment End Date: | 10/22/2014 | | Treatment Summary: | Frac'd the Niobrara w/ 2643386 gals of Silverstim and Slick Water 15% HCI, 7.5% HCI with 3389320#'s of Ottawa sand.
Perf 6466-10108 | | Total fluid used in treatment (bbls): | 62937 | Max pressure during treatment (psi): | 8226 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 19 | | Total acid used in treatment (bbls): | 36 | Min frac gradient (psi/ft): | 0.92 | | Recycled water used in treatment (bbls): | 3516 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 59420 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 3389320 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6121 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/8/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 410 | | BBLS_OIL | 313 | | BTU_GAS | 1291 | | CALC_BBLS_H2O | 410 | | CALC_BBLS_OIL | 313 | | CALC_GOR | 361 | | CALC_MCF_GAS | 113 | | CASING_PRESS | 947 | | GRAVITY_OIL | 41 | | MCF_GAS | 113 | | TUBING_PRESS | 413 |
| | Perforation Data: | | Interval Top: | 6466 ft. | # Of Holes: | 456 | | Interval Bottom: | 10108 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1776 |
| Total Gas Produced (MCF) | 32477 |
| GOR | 18286 |
| GOR Determination | MCFE |
| Average BOE per Day | 20.161 |
| Average MCFE per Day | 116.959 |
| Federal Financial Assurance | i | |
|
|
