Wellbore #00 Wellbore Classification: OW Status: SI - 6/1/2023 Measured TD: 10474 ft. Vertical TD: 6120 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 6/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/19/2016 | | Proposed Top PZ Location: | Sec:28 Twp: 9N 59W | Footage: 903 FSL 1818 FEL | | Bottom Hole Location: | Sec:28 Twp: 9N 59W | Footage: 675 FNL 1815 FEL | | Proposed Depth/Form: | 10269 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-376 , Unit Acreage: 1920, Drill Unit: S.20,28,&29:All | | Casing: | String Type: CONDUCTOR, Hole Size: 18.5 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 0 , Citings Type: PLANNED | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 550 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 550 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6493 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 440, Top: , Bottom: 6493 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6343 ft., Depth: 10269 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

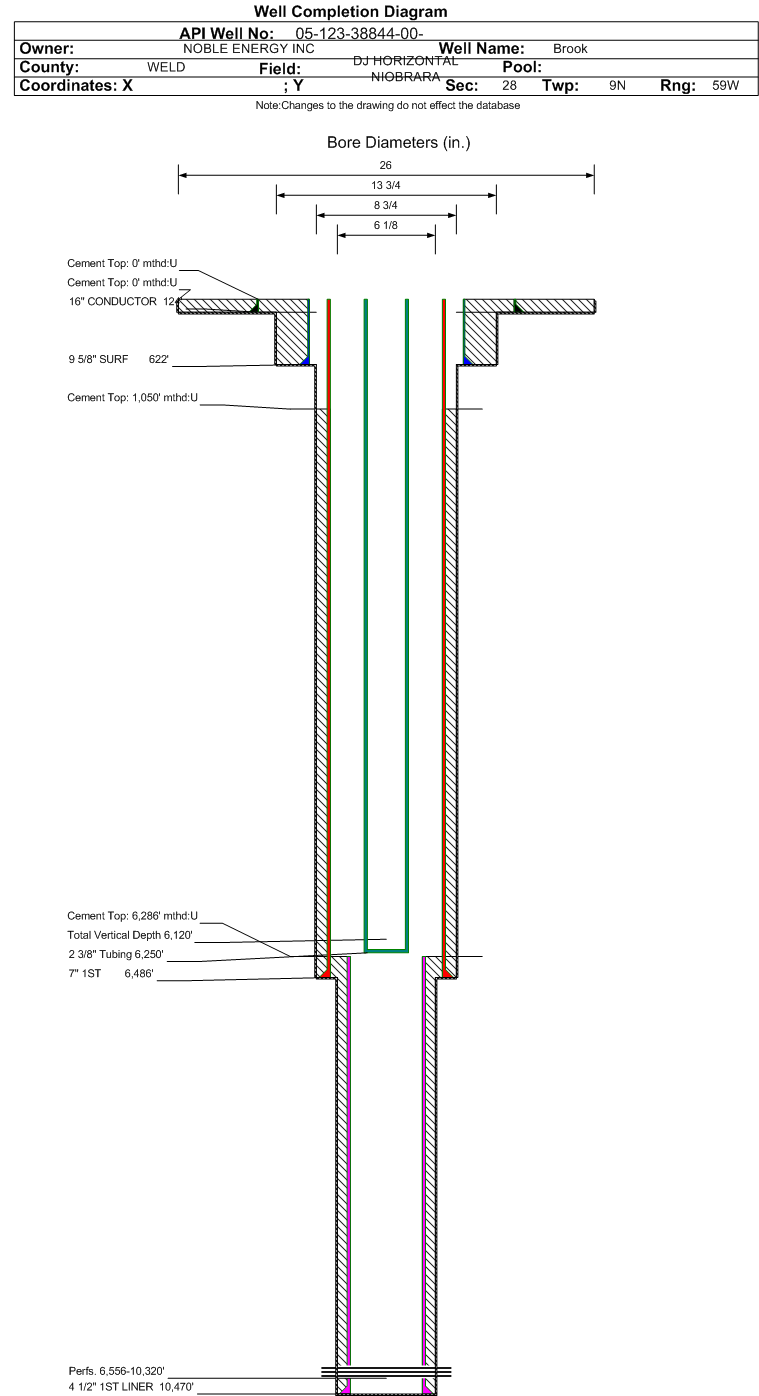

| Wellbore Completed | | Completion Date: | 8/3/2014 | | Spud Date: | 7/28/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 10474 ft. | Measured PB depth: | 6286 ft. | | True Vertical TD: | 6120 ft. | True Vertical PB depth: | 6118 ft. | | Top PZ Location: | Sec:28 Twp: 9N 59W | Footage: 753 FSL 1847 FEL | | Bottom Hole Location: | Sec:28 Twp: 9N 59W | Footage: 684 FNL 1831 FEL | | Log Types: | USIT, MUD, GR/RESISTIVITY | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 124 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 124 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 622 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 378, Top: 0 ft., Bottom: 622 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6486 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 484, Top: 1050 ft., Bottom: 6486 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6286 ft., Depth: 10470 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 313, Top: 6286 ft., Bottom: 10470 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 2480 ft. | | | | | PARKMAN | 3381 ft. | | | | | SUSSEX | 4061 ft. | | | | | SHANNON | 4429 ft. | | | | | TEEPEE BUTTES | 5250 ft. | | | | | NIOBRARA | 5998 ft. | | | |
Formation NBRR Formation Classification: OW Status: SI - 6/1/2023 Interval Top: 6556 ft. Interval Bottom: 10320 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/29/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/16/2014 | Treatment End Date: | 10/23/2014 | | Treatment Summary: | 28 Stages . PERF'D 6562'-10320'; FRAC'D W/2660507 GALS SILVERSTIM AND SLICK WATER, 581 GAL 15% HCL, 486 GAL 7.5% HCL AND 3133743# OTTAWA SAND | | Total fluid used in treatment (bbls): | 63370 | Max pressure during treatment (psi): | 6367 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | 25 | Min frac gradient (psi/ft): | 0.83 | | Recycled water used in treatment (bbls): | 3410 | Total flowback volume recovered (bbls): | 1572 | | Fresh water used in treatment (bbls): | 59935 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 3133743 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6250 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/3/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 813 | | BBLS_OIL | 407 | | BTU_GAS | 1302 | | CALC_BBLS_H2O | 813 | | CALC_BBLS_OIL | 407 | | CALC_GOR | 358 | | CALC_MCF_GAS | 146 | | CASING_PRESS | 1000 | | GRAVITY_OIL | 41 | | MCF_GAS | 146 | | TUBING_PRESS | 517 |
| | Perforation Data: | | Interval Top: | 6556 ft. | # Of Holes: | 680 | | Interval Bottom: | 10320 ft. | Hole Size: | 0.74 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
03/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
09/30/2024 |
| Defined Inactive (SI ) | Y | Defined Inactive
05/31/2023 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
