Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2020 Measured TD: 14645 ft. Vertical TD: 7381 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/17/2016 | | Proposed Top PZ Location: | Sec:5 Twp: 2N 67W | Footage: 2343 FNL 655 FEL | | Bottom Hole Location: | Sec:32 Twp: 3N 67W | Footage: 460 FNL 655 FEL | | Proposed Depth/Form: | 14953 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 240, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 950 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 950 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7786 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 820, Top: 0 ft., Bottom: 7786 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6782 ft., Depth: 14953 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

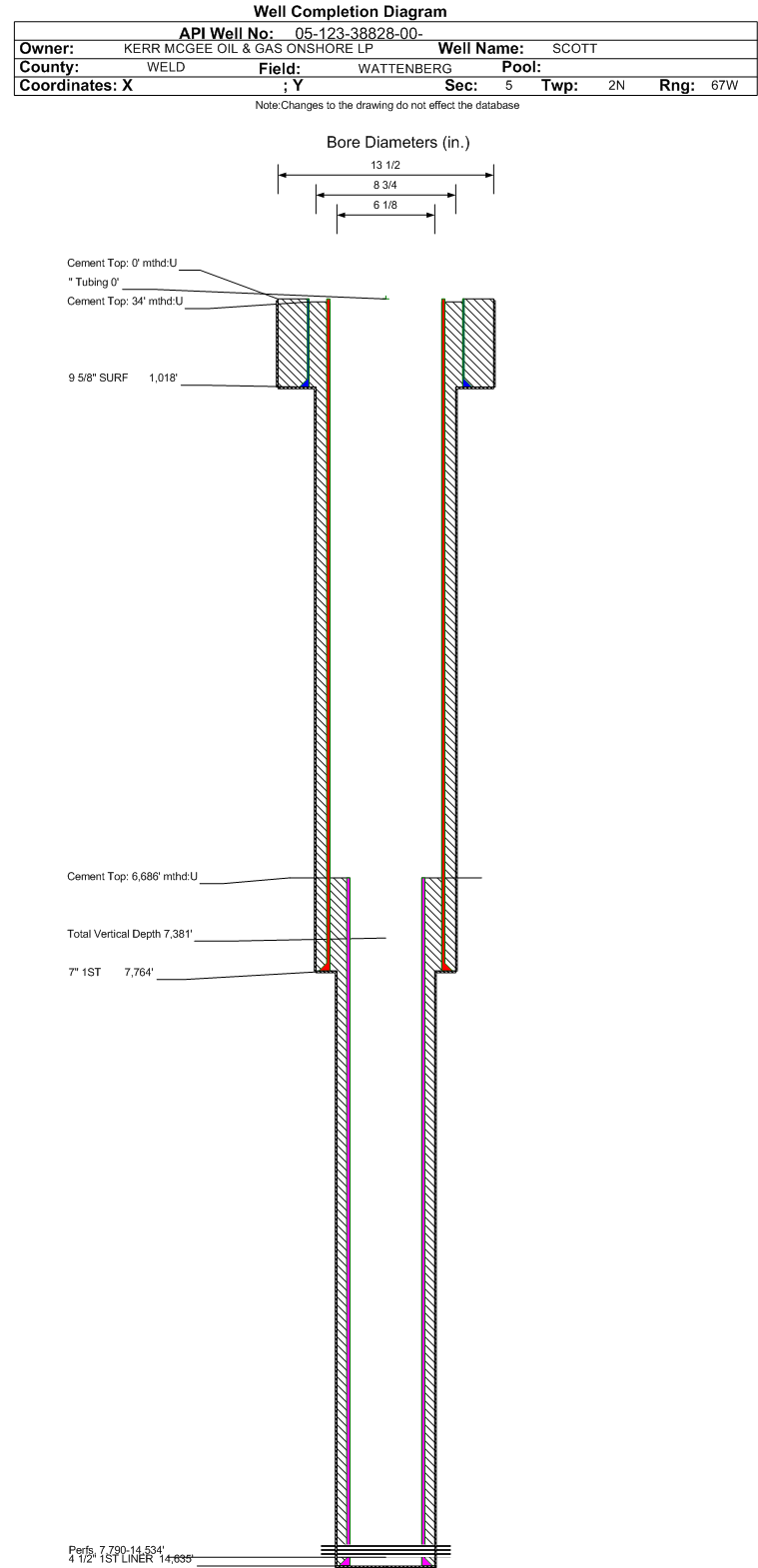

| Wellbore Completed | | Completion Date: | 5/10/2014 | | Spud Date: | 2/17/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 14645 ft. | Measured PB depth: | 14587 ft. | | True Vertical TD: | 7381 ft. | True Vertical PB depth: | 7383 ft. | | Top PZ Location: | Sec:5 Twp: 2N 67W | Footage: 2103 FNL 648 FEL | | Bottom Hole Location: | Sec:32 Twp: 3N 67W | Footage: 512 FNL 639 FEL | | Log Types: | CBL, GR, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1018 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 383, Top: 0 ft., Bottom: 1018 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7764 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 786, Top: 34 ft., Bottom: 7764 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6686 ft., Depth: 14635 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 430, Top: 6686 ft., Bottom: 14635 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7121 ft. | | | | | NIOBRARA | 7188 ft. | | | | | FORT HAYS | 7694 ft. | | | | | CODELL | 7843 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 1/1/2020 Interval Top: 7790 ft. Interval Bottom: 14534 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 8/16/2014 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/19/2014 | Treatment End Date: | 7/31/2014 | | Treatment Summary: | PERF AND FRAC FROM 7790-14534.
274 BBL ACID,136130 BBL SLICKWATER,4618 BBL WATER,141022 BBL TOTAL FLUID.
3750368# 40/70 OTTAWA/ST. PETERS,3750368# TOTAL SAND. | | Total fluid used in treatment (bbls): | 141022 | Max pressure during treatment (psi): | 6876 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 34 | | Total acid used in treatment (bbls): | 274 | Min frac gradient (psi/ft): | 0.78 | | Recycled water used in treatment (bbls): | 7800 | Total flowback volume recovered (bbls): | 82 | | Fresh water used in treatment (bbls): | 132948 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 3750368 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/9/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 46 | | BBLS_OIL | 118 | | BTU_GAS | 1470 | | CALC_BBLS_H2O | 46 | | CALC_BBLS_OIL | 118 | | CALC_GOR | 2907 | | CALC_MCF_GAS | 343 | | CASING_PRESS | 1080 | | GRAVITY_OIL | 49 | | MCF_GAS | 343 |
| | Perforation Data: | | Interval Top: | 7790 ft. | # Of Holes: | 828 | | Interval Bottom: | 14534 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 949 |
| Total Gas Produced (MCF) | 17693 |
| GOR | 18643 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.879 |
| Average MCFE per Day | 63.110 |
| Federal Financial Assurance | i | |
|
|
