Wellbore #00 Wellbore Classification: OW Status: PR - 9/1/2023 Measured TD: 14554 ft. Vertical TD: 7201 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/17/2016 | | Proposed Top PZ Location: | Sec:5 Twp: 2N 67W | Footage: 2343 FNL 1230 FEL | | Bottom Hole Location: | Sec:32 Twp: 3N 67W | Footage: 460 FNL 1230 FEL | | Proposed Depth/Form: | 14723 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 950 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 950 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7559 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 800, Top: 0 ft., Bottom: 7559 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6555 ft., Depth: 14723 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

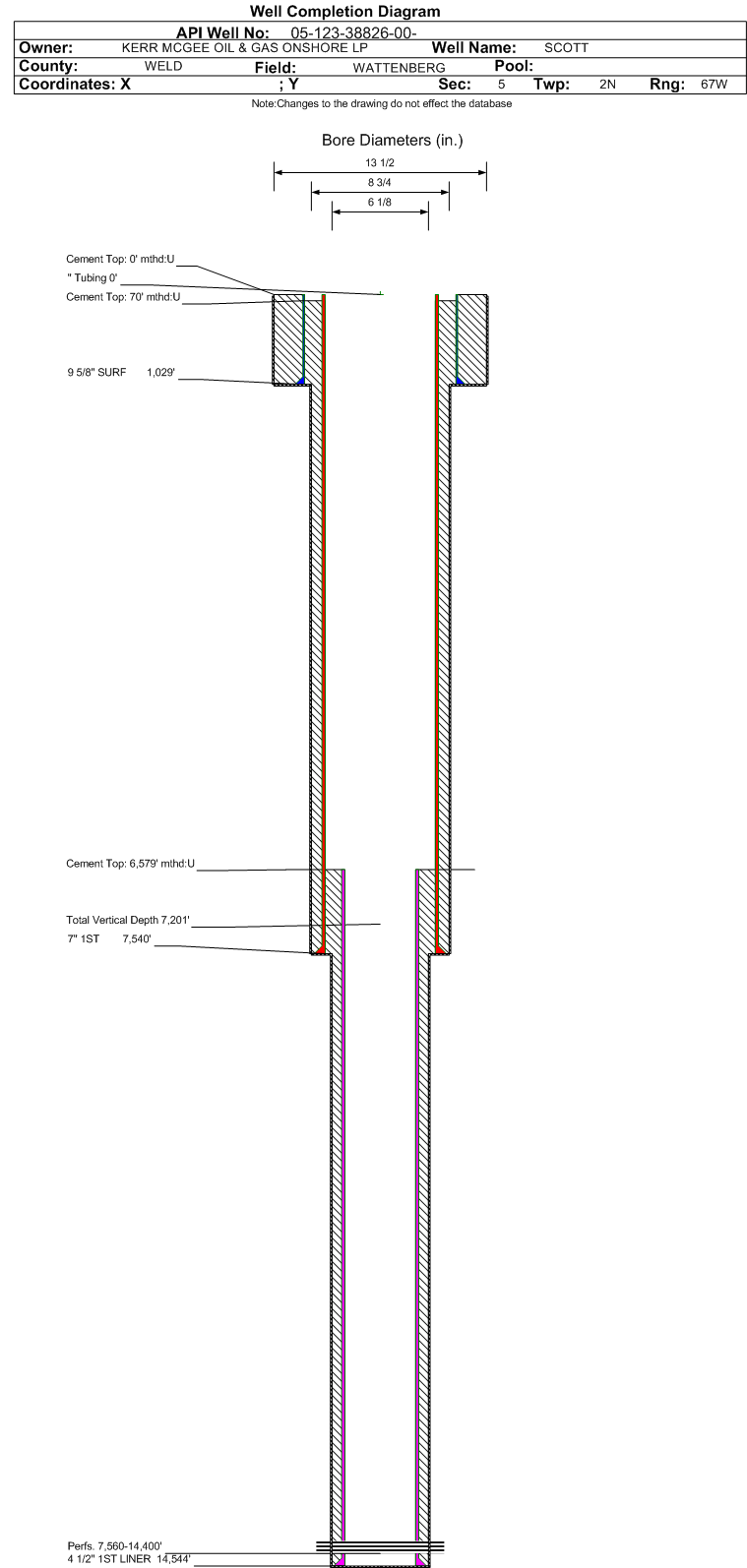

| Wellbore Completed | | Completion Date: | 4/25/2014 | | Spud Date: | 2/16/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 14554 ft. | Measured PB depth: | 14496 ft. | | True Vertical TD: | 7201 ft. | True Vertical PB depth: | 7201 ft. | | Top PZ Location: | Sec:5 Twp: 2N 67W | Footage: 2237 FSL 1055 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 67W | Footage: 521 FNL 1167 FEL | | Log Types: | CBL, GR, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1029 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 386, Top: 0 ft., Bottom: 1029 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7540 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 762, Top: 70 ft., Bottom: 7540 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6579 ft., Depth: 14544 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 423, Top: 6579 ft., Bottom: 14544 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7150 ft. | | | | | NIOBRARA | 7177 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 9/1/2023 Interval Top: 7560 ft. Interval Bottom: 14400 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/16/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/20/2014 | Treatment End Date: | 7/31/2014 | | Treatment Summary: | PERF AND FRAC FROM 7560-14400.
464 BBL ACID,138288 BBL SLICKWATER,4625 BBL WATER,143377 BBL TOTAL FLUID
3836622# 40/70 OTTAWA/ST. PETERS,3836622# TOTAL SAND. | | Total fluid used in treatment (bbls): | 143377 | Max pressure during treatment (psi): | 7594 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 34 | | Total acid used in treatment (bbls): | 464 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 6320 | Total flowback volume recovered (bbls): | 393 | | Fresh water used in treatment (bbls): | 136593 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 3836622 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 313 | | BTU_GAS | 1470 | | CALC_BBLS_OIL | 313 | | CALC_GOR | 2207 | | CALC_MCF_GAS | 691 | | CASING_PRESS | 1250 | | GRAVITY_OIL | 49 | | MCF_GAS | 691 |
| | Perforation Data: | | Interval Top: | 7560 ft. | # Of Holes: | 816 | | Interval Bottom: | 14400 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1573 |
| Total Gas Produced (MCF) | 70398 |
| GOR | 44753 |
| GOR Determination | MCFE |
| Average BOE per Day | 37.285 |
| Average MCFE per Day | 216.268 |
| Federal Financial Assurance | i | |
|
|
