Wellbore #00 Wellbore Classification: OW Status: PR - 6/1/2020 Measured TD: 16872 ft. Vertical TD: 6985 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 6/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/2/2016 | | Proposed Top PZ Location: | Sec:22 Twp: 6N 67W | Footage: 1815 FSL 460 FEL | | Bottom Hole Location: | Sec:21 Twp: 6N 67W | Footage: 1815 FSL 460 FWL | | Proposed Depth/Form: | 11746 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 398, Top: 0 ft., Bottom: 750 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7449 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 708, Top: 3000 ft., Bottom: 7449 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7249 ft., Depth: 16912 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

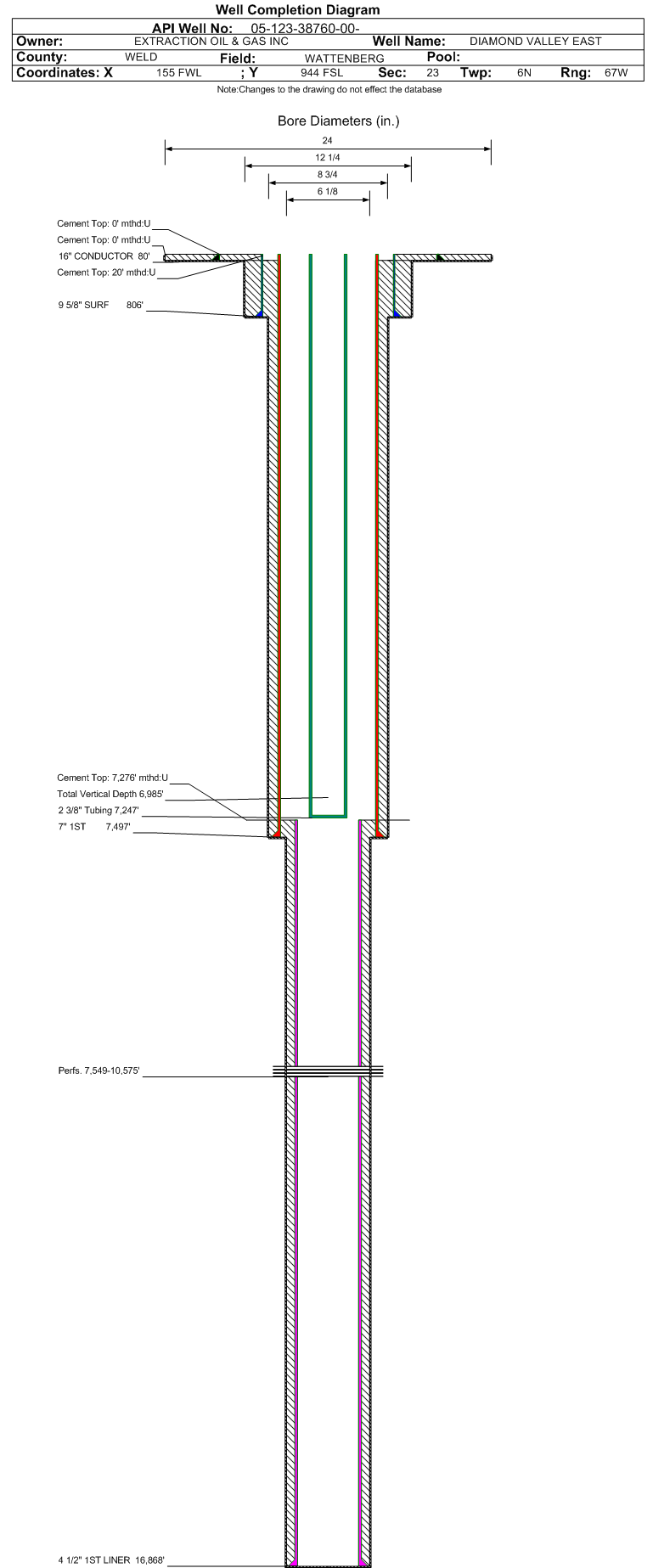

| Wellbore Completed | | Completion Date: | 9/4/2014 | | Spud Date: | 8/23/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 16872 ft. | Measured PB depth: | 16868 ft. | | True Vertical TD: | 6985 ft. | True Vertical PB depth: | 6985 ft. | | Top PZ Location: | Sec:22 Twp: 6N 67W | Footage: 1836 FSL 525 FEL | | Bottom Hole Location: | Sec:21 Twp: 6N 67W | Footage: 1801 FSL 519 FWL | | Log Types: | CBL, Mud, MWD/LWD, (Triple Combo on 123-40318). | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 806 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 806 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7497 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 742, Top: 20 ft., Bottom: 7497 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7276 ft., Depth: 16868 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: 742, Top: 7276 ft., Bottom: 16868 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3483 ft. | | N | N | | SUSSEX | 4264 ft. | | N | N | | SHANNON | 4650 ft. | | N | N | | SHARON SPRINGS | 6954 ft. | | N | N | | NIOBRARA | 7013 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 6/1/2020 Interval Top: 7549 ft. Interval Bottom: 10575 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 6/1/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/3/2015 | Treatment End Date: | 7/7/2015 | | Treatment Summary: | 20 stage plug and perf; only heel half of lateral completed; toe half completed on an earlier date;
7 hours of flowback before well turned over to production;
40388 total bbls fluid pumped: 31329 bbls fresh water, 8821 bbls recycled water, 238 bbls 7.5% HCL acid;
4002452 total lbs 40/70 mesh White sand proppant pumped. | | Total fluid used in treatment (bbls): | 40388 | Max pressure during treatment (psi): | 8835 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.32 | | Type Of gas: | | Number Of staged intervals: | 20 | | Total acid used in treatment (bbls): | 238 | Min frac gradient (psi/ft): | 1.00 | | Recycled water used in treatment (bbls): | 8821 | Total flowback volume recovered (bbls): | 161 | | Fresh water used in treatment (bbls): | 31329 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 4002452 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/8/2015 | Treatment End Date: | 5/14/2015 | | Treatment Summary: | 44 stage plug and perf; only toe half of lateral completed;
106724 total bbls fluid pumped: 82841 bbls fresh water, 23324 bbls recycled water, 559 bbls 7.5% HCL acid;
8808177 total lbs 40/70 mesh White sand proppant pumped. | | Total fluid used in treatment (bbls): | 106724 | Max pressure during treatment (psi): | 8910 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.32 | | Type Of gas: | | Number Of staged intervals: | 44 | | Total acid used in treatment (bbls): | 559 | Min frac gradient (psi/ft): | 0.98 | | Recycled water used in treatment (bbls): | 23324 | Total flowback volume recovered (bbls): | 359 | | Fresh water used in treatment (bbls): | 82841 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 8808177 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7247 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/27/2015 | Test Method: | | | Hours Tested: | 6 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 94 | | BBLS_OIL | 22 | | BTU_GAS | 1373 | | CALC_BBLS_H2O | 376 | | CALC_BBLS_OIL | 88 | | CALC_GOR | 1091 | | CALC_MCF_GAS | 96 | | CASING_PRESS | 1125 | | GRAVITY_OIL | 43 | | MCF_GAS | 24 | | TUBING_PRESS | 600 |
| | Perforation Data: | | Interval Top: | 7549 ft. | # Of Holes: | 720 | | Interval Bottom: | 10575 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3821 |
| Total Gas Produced (MCF) | 26901 |
| GOR | 7040 |
| GOR Determination | BOE |
| Average BOE per Day | 23.162 |
| Average MCFE per Day | 134.358 |
| Federal Financial Assurance | i | |
|
|
