Wellbore #00 Wellbore Classification: OW Status: PR - 4/1/2018 Measured TD: 13158 ft. Vertical TD: 5649 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 4/1/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/29/2015 | | Proposed Top PZ Location: | Sec:30 Twp: 10N 57W | Footage: 1540 FNL 2387 FWL | | Bottom Hole Location: | Sec:19 Twp: 10N 57W | Footage: 100 FNL 2475 FWL | | Proposed Depth/Form: | 12671 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-369 , Unit Acreage: 960, Drill Unit: S.19:ALL,S.30:N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 16.063 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 689, Top: 0 ft., Bottom: 1550 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5897 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 396, Top: 0 ft., Bottom: 5897 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5115 ft., Depth: 12671 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 8/12/2014 | | Spud Date: | 8/2/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13158 ft. | Measured PB depth: | 13089 ft. | | True Vertical TD: | 5649 ft. | True Vertical PB depth: | 5646 ft. | | Top PZ Location: | Sec:30 Twp: 10N 57W | Footage: 1936 FNL 2428 FWL | | Bottom Hole Location: | Sec:19 Twp: 10N 57W | Footage: 43 FNL 2464 FWL | | Log Types: | LWD, MUD, CBL, CASED HOLE NEUTRON AND GAMMA RAY, TRIPLE COMBINATION, DENSITY, INDUCTION, GAMMA, CALIPER | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 97 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1583 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 456, Top: 0 ft., Bottom: 1583 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5958 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 794, Top: 0 ft., Bottom: 5958 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 4911 ft., Depth: 13139 ft., Weight: 11.60 , Citings Type: ACTUAL | | Cement: | Sacks: 515, Top: 4911 ft., Bottom: 13139 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1435 ft. | | N | N | | HYGIENE | 3182 ft. | | N | N | | SHARON SPRINGS | 5524 ft. | | N | N | | NIOBRARA | 5527 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 6/1/2018 Interval Top: 5981 ft. Interval Bottom: 12995 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 4/29/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/14/2015 | Treatment End Date: | 2/20/2015 | | Treatment Summary: | Cemented Liner 40 staged intervals: 84824 bbl pHaserFrac 22 XL Gel; 11962 bbl 22# Linear Gel; 476 bbl 15% HCl; 25757 bbl SlickWater; 6914 bbl Treated Water.
6,762,267.00 # Proppant Ottawa 20/40; 116211# Proppant Ottawa 40/70.

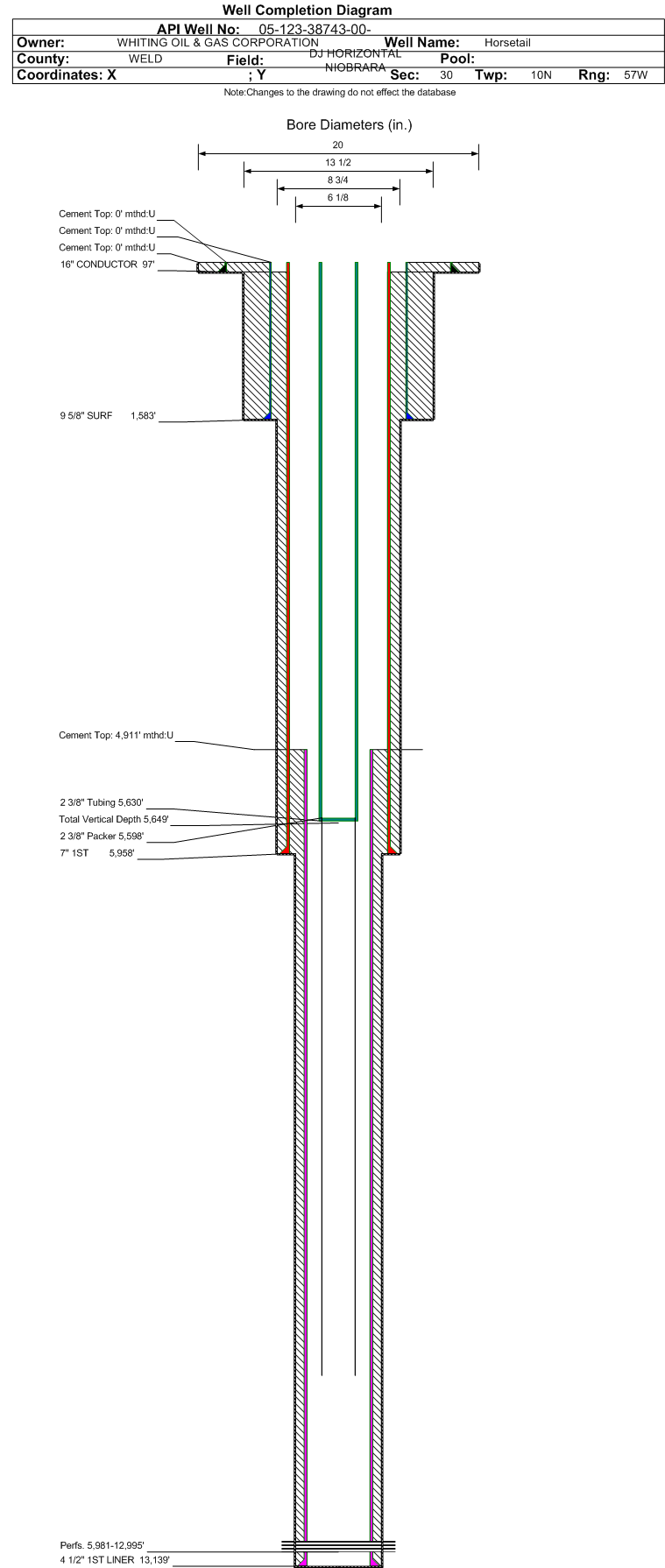

See attached wellbore diagram for details. | | Total fluid used in treatment (bbls): | 129933 | Max pressure during treatment (psi): | 6147 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 476 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 28882 | | Fresh water used in treatment (bbls): | 129457 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6878477 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5630 ft. | | Tubing Packer Depth: | 5618 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/6/2015 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1239 | | BBLS_OIL | 359 | | BTU_GAS | 1352 | | CALC_BBLS_H2O | 1239 | | CALC_BBLS_OIL | 359 | | CALC_GOR | 451 | | CALC_MCF_GAS | 162 | | CASING_PRESS | 960 | | GRAVITY_OIL | 59 | | MCF_GAS | 162 | | TUBING_PRESS | 490 |
| | Perforation Data: | | Interval Top: | 5981 ft. | # Of Holes: | 1440 | | Interval Bottom: | 12995 ft. | Hole Size: | 0.4285714 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3699 |
| Total Gas Produced (MCF) | 27947 |
| GOR | 7555 |
| GOR Determination | BOE |
| Average BOE per Day | 23.402 |
| Average MCFE per Day | 135.705 |
| Federal Financial Assurance | i | |
|
|
