Wellbore #00 Wellbore Classification: OW Status: PR - 4/1/2018 Measured TD: 13895 ft. Vertical TD: 5756 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 4/1/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/29/2015 | | Proposed Top PZ Location: | Sec:30 Twp: 10N 57W | Footage: 2476 FNL 2246 FWL | | Bottom Hole Location: | Sec:19 Twp: 10N 57W | Footage: 46 FNL 2288 FWL | | Proposed Depth/Form: | 12746 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-369 , Unit Acreage: 960, Drill Unit: S.19:ALL,S.30:N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 16.063 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 689, Top: 0 ft., Bottom: 1550 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6023 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 404, Top: 0 ft., Bottom: 6023 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5241 ft., Depth: 12746 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 8/27/2014 | | Spud Date: | 8/14/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13895 ft. | Measured PB depth: | 13839 ft. | | True Vertical TD: | 5756 ft. | True Vertical PB depth: | 5758 ft. | | Top PZ Location: | Sec:30 Twp: 10N 57W | Footage: 2476 FNL 2246 FWL | | Bottom Hole Location: | Sec:19 Twp: 10N 57W | Footage: 46 FNL 2288 FWL | | Log Types: | MWD/LWD, Mud log, CBL, Triple Combo, CAL, DEN, IND, GR. (NEU IN API 123-38743) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: 121, Top: 0 ft., Bottom: 97 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1580 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 456, Top: 0 ft., Bottom: 1580 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6136 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 791, Top: 1610 ft., Bottom: 6136 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 5122 ft., Depth: 13887 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 590, Top: 5122 ft., Bottom: 13895 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1435 ft. | | N | N | | HYGIENE | 3182 ft. | | N | N | | SHARON SPRINGS | 5647 ft. | | N | N | | NIOBRARA | 5650 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 5/10/2015 Interval Top: 6159 ft. Interval Bottom: 13732 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/25/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/5/2015 | Treatment End Date: | 2/13/2015 | | Treatment Summary: | 40 stage P&P: 640 stage P&P: 6505130 lbs 20/40 Ottawa sand 113815 lbs 40/70 Ottawa sand 929 bbl 15% HCL; 128658 bbl Slickwater | | Total fluid used in treatment (bbls): | 129587 | Max pressure during treatment (psi): | 6945 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 929 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 28515 | | Fresh water used in treatment (bbls): | 128658 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6618945 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |

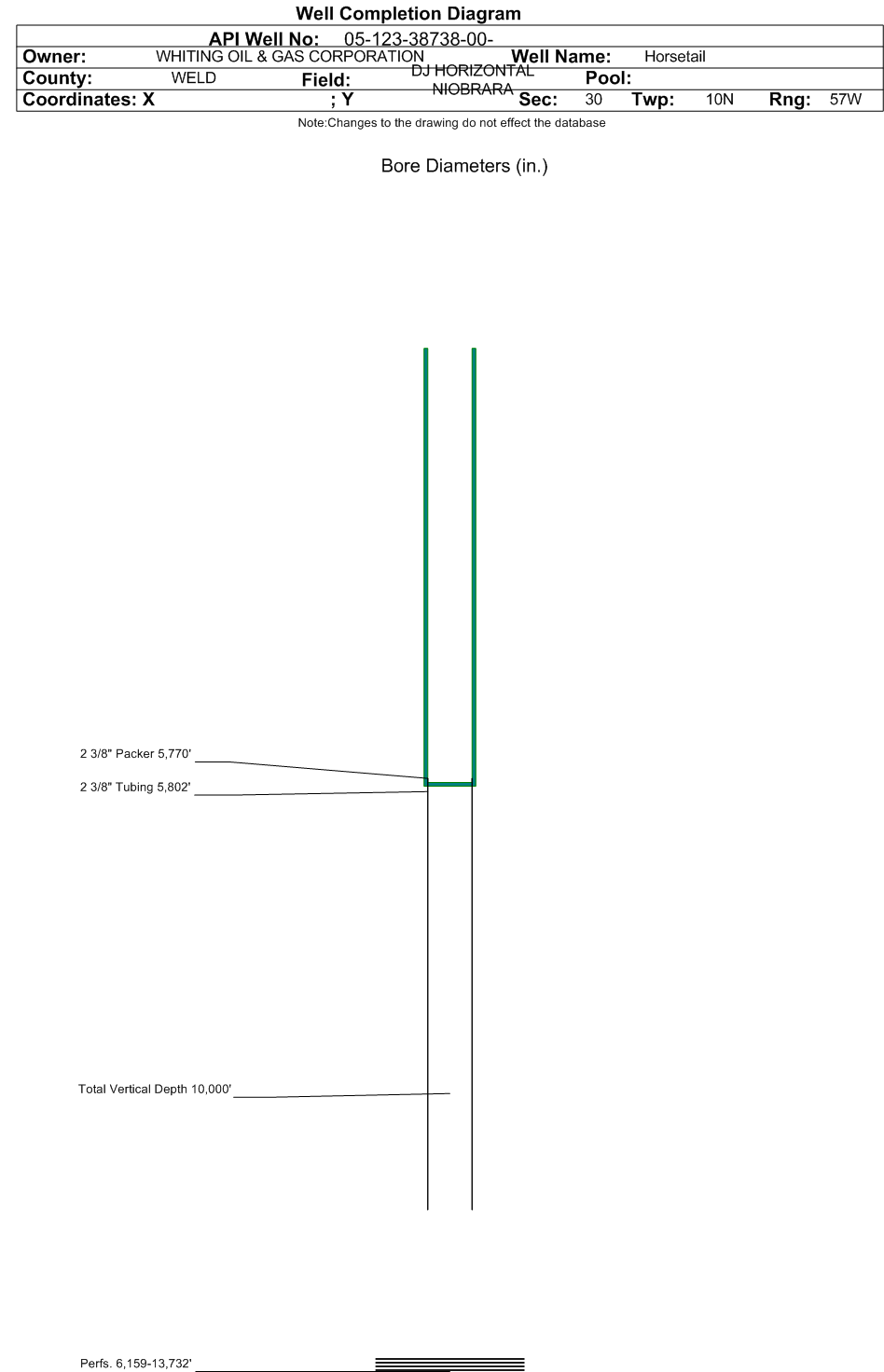

| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5802 ft. | | Tubing Packer Depth: | 5790 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/10/2015 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 514 | | BBLS_OIL | 249 | | BTU_GAS | 1347 | | CALC_BBLS_H2O | 514 | | CALC_BBLS_OIL | 249 | | CALC_GOR | 193 | | CALC_MCF_GAS | 48 | | CASING_PRESS | 960 | | GRAVITY_OIL | 36 | | MCF_GAS | 48 | | TUBING_PRESS | 500 |
| | Perforation Data: | | Interval Top: | 6159 ft. | # Of Holes: | 1440 | | Interval Bottom: | 13732 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1788 |
| Total Gas Produced (MCF) | 25901 |
| GOR | 14486 |
| GOR Determination | BOE |
| Average BOE per Day | 17.170 |
| Average MCFE per Day | 99.585 |
| Federal Financial Assurance | i | |
|
|
