Wellbore #00 Wellbore Classification: OW Status: PR - 6/1/2020 Measured TD: 11915 ft. Vertical TD: 7164 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 6/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/22/2015 | | Proposed Top PZ Location: | Sec:22 Twp: 6N 67W | Footage: 660 FSL 521 FEL | | Bottom Hole Location: | Sec:22 Twp: 6N 67W | Footage: 671 FSL 463 FWL | | Proposed Depth/Form: | 11843 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 265, Top: 0 ft., Bottom: 500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7548 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 724, Top: 3000 ft., Bottom: 7548 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6410 ft., Depth: 11843 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 2/17/2014 | | Spud Date: | 1/3/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 11915 ft. | Measured PB depth: | 11915 ft. | | True Vertical TD: | 7164 ft. | True Vertical PB depth: | 7164 ft. | | Top PZ Location: | Sec:22 Twp: 6N 67W | Footage: 660 FSL 521 FEL | | Bottom Hole Location: | Sec:22 Twp: 6N 67W | Footage: 671 FSL 463 FWL | | Log Types: | MWD/LWD with DENSITY, (Triple Combo on 123-40318). | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 559 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 145, Top: 0 ft., Bottom: 559 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.875 in., Size: 7 in., Top: 0 ft., Depth: 7583 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 1830 ft., Bottom: 7583 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7217 ft., Depth: 11872 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 6856 ft. | | N | N | | NIOBRARA | 6889 ft. | | N | N | | FORT HAYS | 7411 ft. | | N | N | | CODELL | 7568 ft. | | N | N |
Formation CODL Formation Classification: OW Status: PR - 6/1/2020 Interval Top: 7683 ft. Interval Bottom: 11915 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 6/25/2014 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/10/2014 | Treatment End Date: | 6/10/2014 | | Treatment Summary: | 20 stage sliding sleeve; 51,320 bbls pumped; 4,170,215 lbs proppant
Fluid: Crosslink Gel. Proppant: 123,599 lbs 40/70 white, 4,046,616 20/40 White. | | Total fluid used in treatment (bbls): | 51320 | Max pressure during treatment (psi): | 7666 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.32 | | Type Of gas: | | Number Of staged intervals: | 20 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 2783 | | Fresh water used in treatment (bbls): | 51320 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4170215 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |

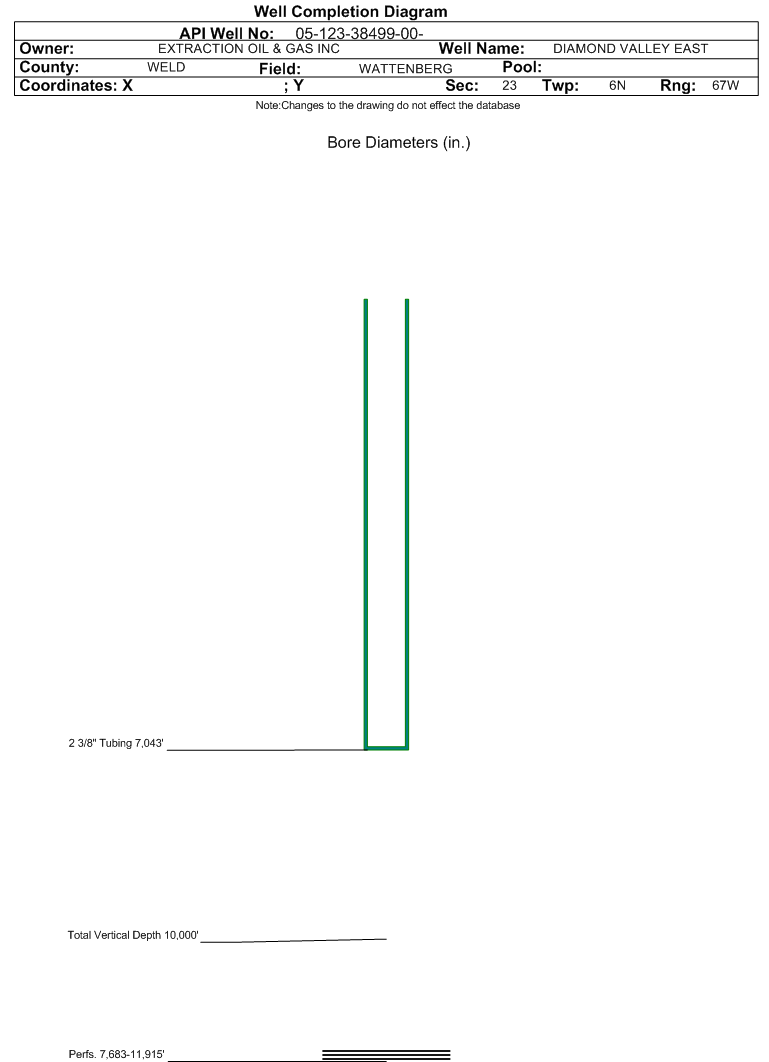

| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7043 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/24/2014 | Test Method: | | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 856 | | BBLS_OIL | 118 | | BTU_GAS | 1297 | | CALC_BBLS_H2O | 856 | | CALC_BBLS_OIL | 118 | | CALC_GOR | 2085 | | CALC_MCF_GAS | 246 | | CASING_PRESS | 1550 | | GRAVITY_OIL | 45 | | MCF_GAS | 246 | | TUBING_PRESS | 1050 |
| | Perforation Data: | | Interval Top: | 7683 ft. | # Of Holes: | | | Interval Bottom: | 11915 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 592 |
| Total Gas Produced (MCF) | 7199 |
| GOR | 12160 |
| GOR Determination | BOE |
| Average BOE per Day | 5.030 |
| Average MCFE per Day | 29.155 |
| Federal Financial Assurance | i | |
|
|
