Wellbore #00 Wellbore Classification: OW Status: PR - 9/13/2018 Measured TD: 13402 ft. Vertical TD: 7538 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/13/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/21/2018 | | Proposed Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 581 FSL 641 FEL | | Bottom Hole Location: | Sec:5 Twp: 1N 68W | Footage: 475 FSL 781 FEL | | Proposed Depth/Form: | 13018 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 400, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1696 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: 0 ft., Bottom: 1696 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 13477 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2197, Top: , Bottom: 13477 ft. |
| | |

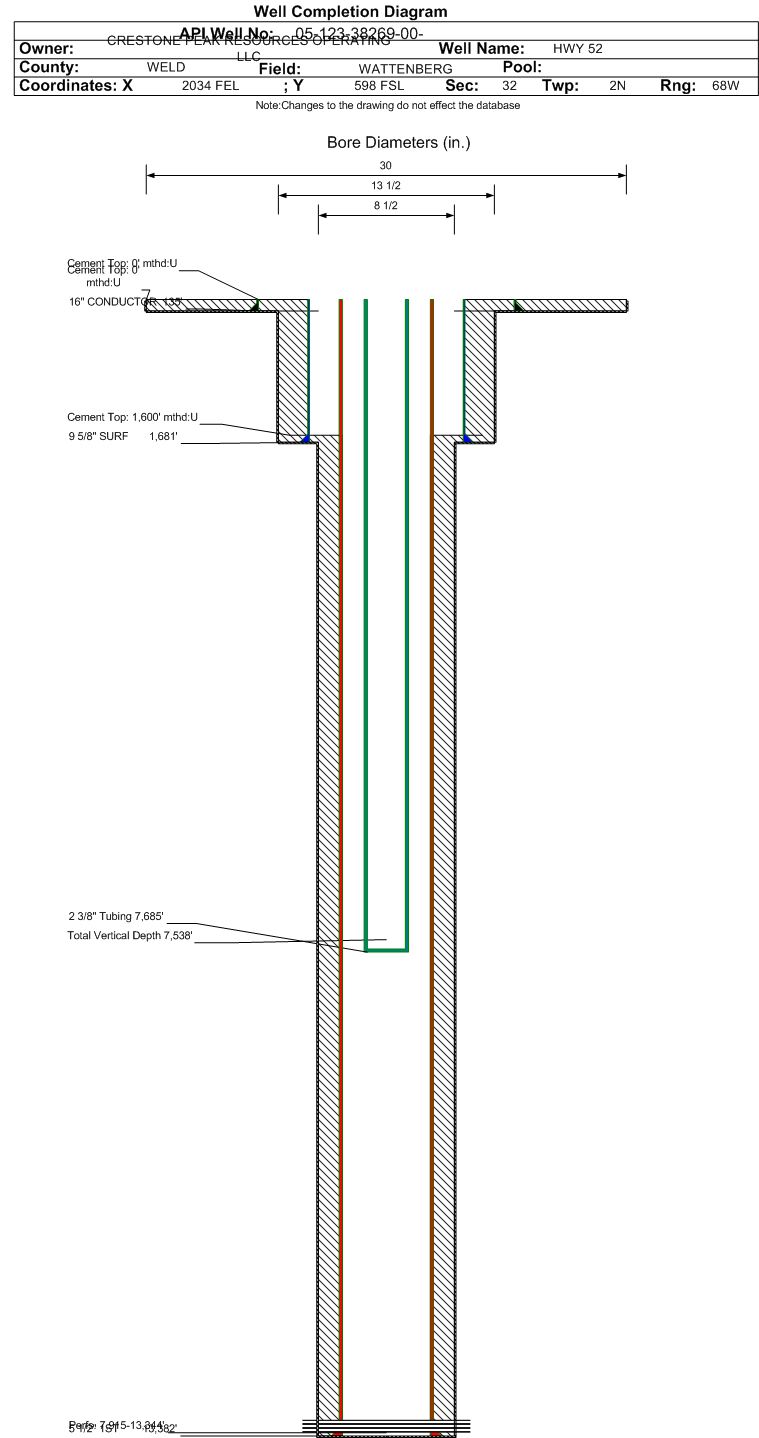

| Wellbore Completed | | Completion Date: | 6/18/2017 | | Spud Date: | 3/22/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 13402 ft. | Measured PB depth: | 13348 ft. | | True Vertical TD: | 7538 ft. | True Vertical PB depth: | 7537 ft. | | Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 581 FSL 641 FEL | | Bottom Hole Location: | Sec:5 Twp: 1N 68W | Footage: 475 FSL 781 FEL | | Log Types: | Mud Log, MWD/LWD, CBL (Resistivity in 123-38246) | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 135 ft., Weight: 65.00 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 135 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1681 ft., Weight: 40.00 , Citings Type: ACTUAL | | Cement: | Sacks: 640, Top: 0 ft., Bottom: 1681 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13382 ft., Weight: 20.00 , Citings Type: ACTUAL | | Cement: | Sacks: 1830, Top: 1600 ft., Bottom: 13402 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4487 ft. | | | | | SHANNON | 5090 ft. | | | | | TEEPEE BUTTES | 6652 ft. | | | | | SHARON SPRINGS | 7553 ft. | | | | | NIOBRARA | 7763 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 9/13/2018 Interval Top: 7915 ft. Interval Bottom: 13344 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/13/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/14/2018 | Treatment End Date: | 3/30/2018 | | Treatment Summary: | 208868 bbls water, 15 bbls produced brine water, 156 bbls additives (FRP-4K, ACI-97 and ASF-67) and 28 bbl HCL & Spearpoint in a 30 stage frac with 4,921,720 lbs of silica quartz proppant | | Total fluid used in treatment (bbls): | 209067 | Max pressure during treatment (psi): | 8973 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 30 | | Total acid used in treatment (bbls): | 28 | Min frac gradient (psi/ft): | 0.86 | | Recycled water used in treatment (bbls): | 15 | Total flowback volume recovered (bbls): | 3812 | | Fresh water used in treatment (bbls): | 209024 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4921720 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7685 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/13/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 26 | | BBLS_OIL | 199 | | BTU_GAS | 1223 | | CALC_BBLS_H2O | 26 | | CALC_BBLS_OIL | 199 | | CALC_GOR | 2045 | | CALC_MCF_GAS | 407 | | CASING_PRESS | 2191 | | GRAVITY_OIL | 45 | | MCF_GAS | 407 | | TUBING_PRESS | 2725 |
| | Perforation Data: | | Interval Top: | 7915 ft. | # Of Holes: | 686 | | Interval Bottom: | 13344 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2785 |
| Total Gas Produced (MCF) | 95134 |
| GOR | 34159 |
| GOR Determination | MCFE |
| Average BOE per Day | 52.577 |
| Average MCFE per Day | 304.965 |
| Federal Financial Assurance | i | |
|
|
