Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2025 Measured TD: 12068 ft. Vertical TD: 7605 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/21/2018 | | Proposed Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 1816 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 483 FNL 1814 FEL | | Proposed Depth/Form: | 11760 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBFHC , Formation: NIOBRARA-FT HAYS-CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1684 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 735, Top: 0 ft., Bottom: 1684 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12176 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1975, Top: , Bottom: 12176 ft. |
| | |

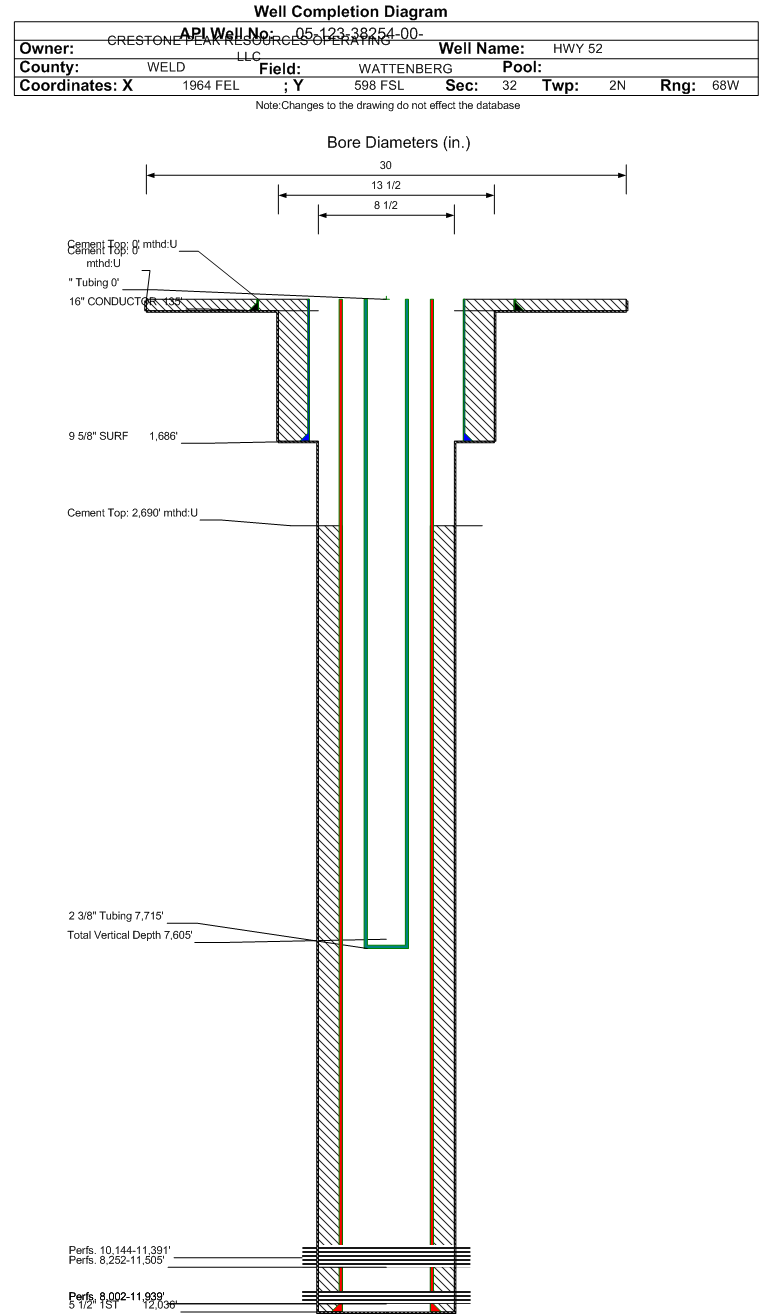

| Wellbore Completed | | Completion Date: | 7/27/2017 | | Spud Date: | 3/16/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 12068 ft. | Measured PB depth: | 12012 ft. | | True Vertical TD: | 7605 ft. | True Vertical PB depth: | 7608 ft. | | Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 1816 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 483 FNL 1814 FEL | | Log Types: | Mud, MWD/LWD, CBL, (Resistivity in 123-38246) | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 135 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 135 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1686 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 636, Top: 0 ft., Bottom: 1686 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12036 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1440, Top: 2690 ft., Bottom: 12036 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4336 ft. | | | | | SHANNON | 4988 ft. | | | | | TEEPEE BUTTES | 6509 ft. | | | | | SHARON SPRINGS | 7361 ft. | | | | | NIOBRARA | 7470 ft. | | | | | FORT HAYS | 8252 ft. | | | | | CODELL | 10022 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 12/12/2018 Interval Top: 10144 ft. Interval Bottom: 11391 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/12/2018 | Treatment End Date: | N/A | | Treatment Summary: | 10,144'-10,400'; 10,449'-10,705'; 10,755'-11,012'; 11,061'-11,318'; 11,367'-11,391'
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 10144 ft. | # Of Holes: | 337 | | Interval Bottom: | 11391 ft. | Hole Size: | 0.42 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 12/12/2018 Interval Top: 8252 ft. Interval Bottom: 11505 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/12/2018 | Treatment End Date: | N/A | | Treatment Summary: | 8252'-8253'; 8,302'-8,560'; 8,609'-8,867'; 8,916'-9,174'; 9,223'-9,481'; 9,530'-9,791'; 9,837'-10,098'; 11,392'-11,414';
11,463'-11,505'
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8252 ft. | # Of Holes: | 337 | | Interval Bottom: | 11505 ft. | Hole Size: | 0.42 in. |
|
Formation NBFHC Formation Classification: OW Status: PR - 12/1/2025 Interval Top: 8002 ft. Interval Bottom: 11939 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 9/27/2018 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/23/2018 | Treatment End Date: | 3/26/2018 | | Treatment Summary: | 97796 bbls water, 77 bbls additives (FRP-4K, ACI-97 and ASF-67) and 12 bbl HCL in a 16 stage frac with 2,516,620 lbs of silica quartz proppant
| | Total fluid used in treatment (bbls): | 97885 | Max pressure during treatment (psi): | 8236 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.90 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 6724 | | Fresh water used in treatment (bbls): | 97873 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2516620 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7715 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/13/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 288 | | BBLS_OIL | 593 | | BTU_GAS | 1251 | | CALC_BBLS_H2O | 288 | | CALC_BBLS_OIL | 593 | | CALC_GOR | 1610 | | CALC_MCF_GAS | 954 | | CASING_PRESS | 2300 | | GRAVITY_OIL | 45 | | MCF_GAS | 954 | | TUBING_PRESS | 1250 |
| | Perforation Data: | | Interval Top: | 8002 ft. | # Of Holes: | 337 | | Interval Bottom: | 11939 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 12/12/2018 Interval Top: 8002 ft. Interval Bottom: 11939 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/12/2018 | Treatment End Date: | N/A | | Treatment Summary: | 8,002'-8251'; 11,554'-11,939'
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 8002 ft. | # Of Holes: | 337 | | Interval Bottom: | 11939 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 18 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.011 |
| Average MCFE per Day | 0.049 |
| Federal Financial Assurance | i | |
|
|
