Wellbore #00 Wellbore Classification: OW Status: PR - 9/3/2018 Measured TD: 13590 ft. Vertical TD: 7771 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/3/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/21/2018 | | Proposed Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 580 FSL 1647 FEL | | Bottom Hole Location: | Sec:5 Twp: 1N 68W | Footage: 462 FSL 1646 FEL | | Proposed Depth/Form: | 12907 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CD-FH , Formation: CODELL-FORT HAYS , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1687 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 736, Top: 0 ft., Bottom: 1687 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 13621 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2221, Top: , Bottom: 13621 ft. |
| | |

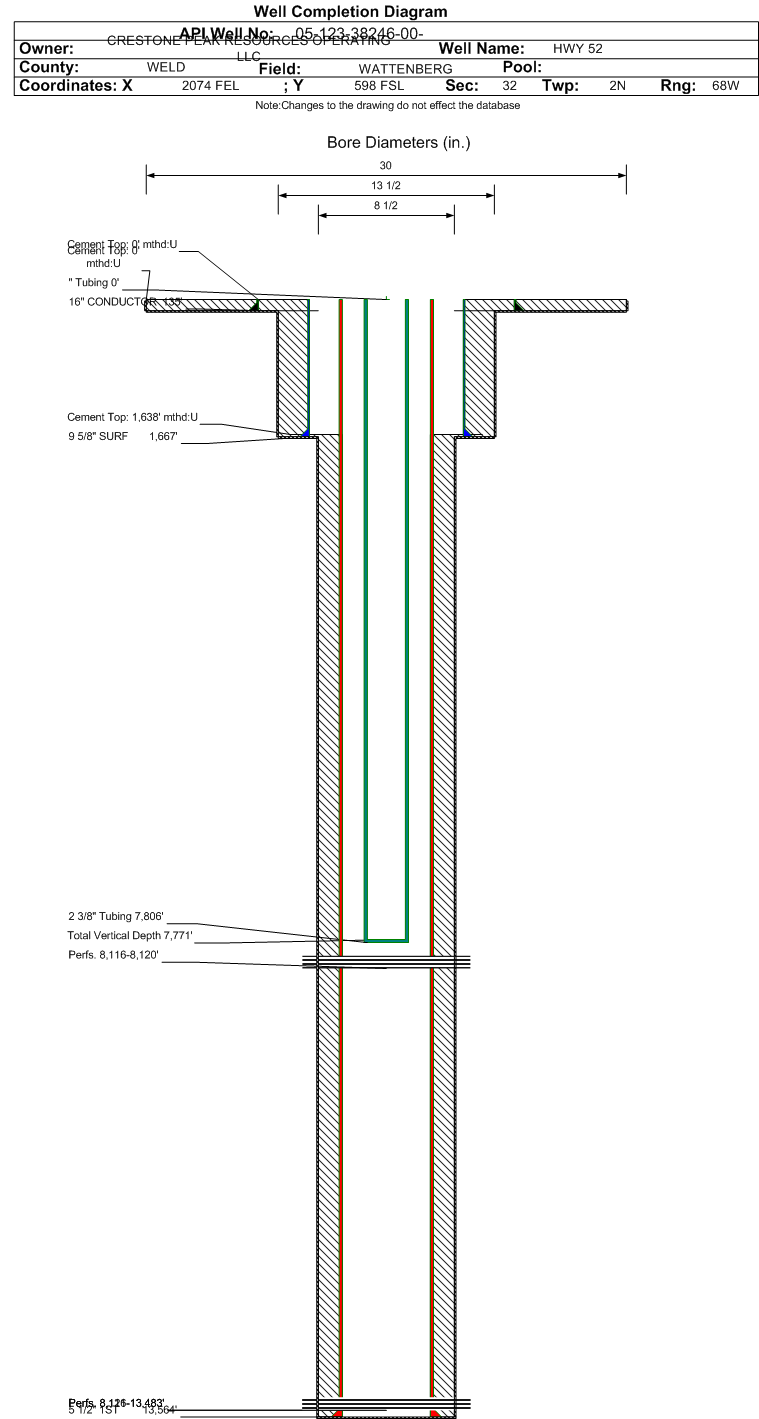

| Wellbore Completed | | Completion Date: | 5/24/2017 | | Spud Date: | 3/26/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 13590 ft. | Measured PB depth: | 13548 ft. | | True Vertical TD: | 7771 ft. | True Vertical PB depth: | 7771 ft. | | Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 580 FSL 1647 FEL | | Bottom Hole Location: | Sec:5 Twp: 1N 68W | Footage: 462 FSL 1646 FEL | | Log Types: | Mud, MWD/LWD, CBL, CAL, D/N, IND, SON, GR | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 135 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 135 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1667 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 636, Top: 0 ft., Bottom: 1667 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13564 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1790, Top: 1638 ft., Bottom: 13564 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4361 ft. | | | | | SHANNON | 4949 ft. | | | | | TEEPEE BUTTES | 6496 ft. | | | | | SHARON SPRINGS | 7328 ft. | | | | | NIOBRARA | 7425 ft. | | | | | FORT HAYS | 7948 ft. | | | | | CODELL | 8121 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 10/17/2018 Interval Top: 8121 ft. Interval Bottom: 13483 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8121 ft. | # Of Holes: | 433 | | Interval Bottom: | 13483 ft. | Hole Size: | |
|
Formation CD-FH Formation Classification: OW Status: PR - 9/3/2018 Interval Top: 8116 ft. Interval Bottom: 13483 ft.| Completed Information for Formation CODELL-FORT HAYS | | 1st Production Date: | 7/4/2018 | Choke Size: | 14.000 in. | | Formation Name: | CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/23/2018 | Treatment End Date: | 3/26/2018 | | Treatment Summary: | 122994 bbl water, 15 bbls produced brine water, 93 bbl additives (FRP-4K) in a
19 stage frac with 3,216,330 lbs of silica quartz proppant | | Total fluid used in treatment (bbls): | 123102 | Max pressure during treatment (psi): | 8987 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 19 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.87 | | Recycled water used in treatment (bbls): | 15 | Total flowback volume recovered (bbls): | 7539 | | Fresh water used in treatment (bbls): | 122994 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3216330 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7806 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/3/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 159 | | BBLS_OIL | 392 | | BTU_GAS | 1253 | | CALC_BBLS_H2O | 159 | | CALC_BBLS_OIL | 392 | | CALC_GOR | 1844 | | CALC_MCF_GAS | 723 | | CASING_PRESS | 3670 | | GRAVITY_OIL | 45 | | MCF_GAS | 723 | | TUBING_PRESS | 1765 |
| | Perforation Data: | | Interval Top: | 8116 ft. | # Of Holes: | 433 | | Interval Bottom: | 13483 ft. | Hole Size: | 0.42 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 10/17/2018 Interval Top: 8116 ft. Interval Bottom: 8120 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8116 ft. | # Of Holes: | 433 | | Interval Bottom: | 8120 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2803 |
| Total Gas Produced (MCF) | 62392 |
| GOR | 22259 |
| GOR Determination | MCFE |
| Average BOE per Day | 37.158 |
| Average MCFE per Day | 215.503 |
| Federal Financial Assurance | i | |
|
|
