Wellbore #00 Wellbore Classification: OW Status: PR - 8/13/2018 Measured TD: 12060 ft. Vertical TD: 7638 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 8/13/2018 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/21/2018 | | Proposed Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 2499 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 465 FNL 2508 FEL | | Proposed Depth/Form: | 11767 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBFHC , Formation: NIOBRARA-FT HAYS-CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1687 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 736, Top: 0 ft., Bottom: 1687 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12194 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1978, Top: , Bottom: 12194 ft. |
| | |

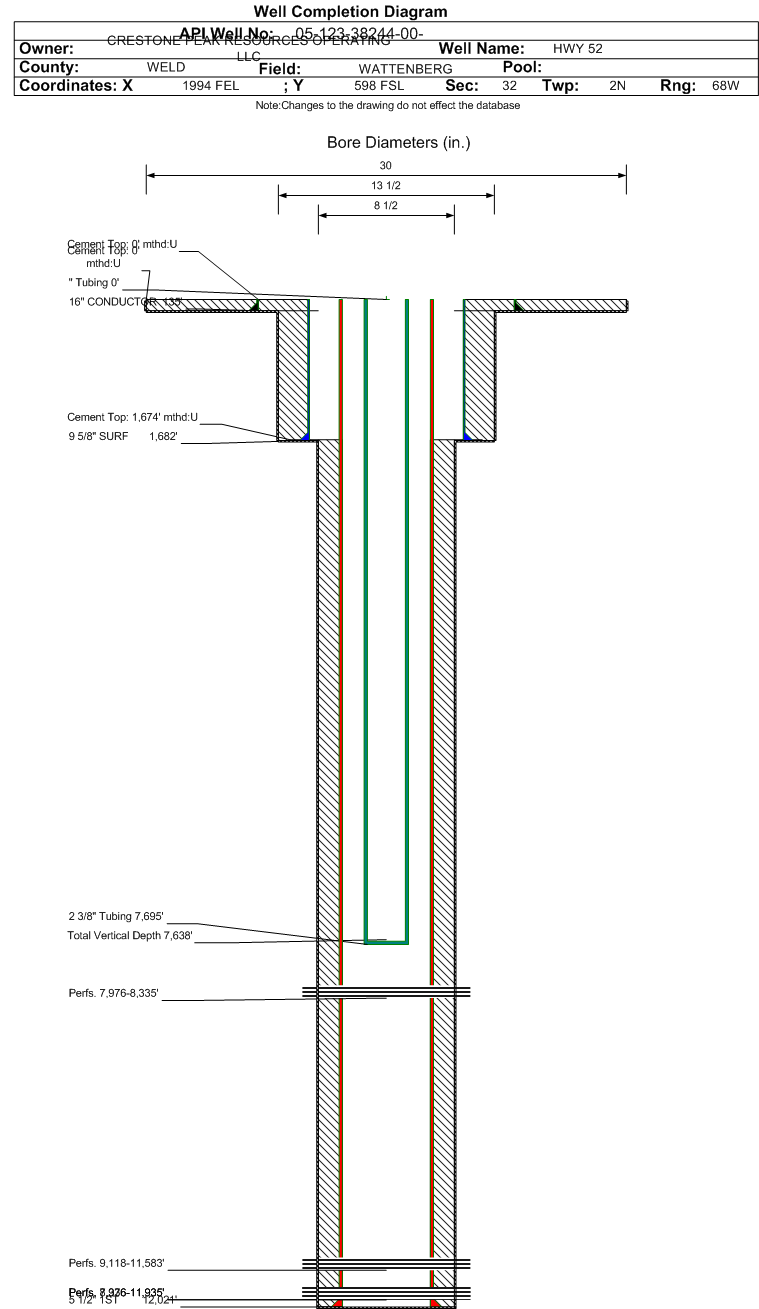

| Wellbore Completed | | Completion Date: | 7/12/2017 | | Spud Date: | 3/18/2017 | Spud Date Is: | ACTUAL | | Measured TD: | 12060 ft. | Measured PB depth: | 11992 ft. | | True Vertical TD: | 7638 ft. | True Vertical PB depth: | 7638 ft. | | Top PZ Location: | Sec:32 Twp: 2N 68W | Footage: 780 FSL 2499 FEL | | Bottom Hole Location: | Sec:32 Twp: 2N 68W | Footage: 465 FNL 2508 FEL | | Log Types: | Mud, MWD/LWD, CBL, (Resistivity in 123-38246) | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 135 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 135 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1682 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 0 ft., Bottom: 1682 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 12021 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1435, Top: 1674 ft., Bottom: 12021 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4357 ft. | | | | | SHANNON | 5009 ft. | | | | | TEEPEE BUTTES | 6542 ft. | | | | | SHARON SPRINGS | 7364 ft. | | | | | NIOBRARA | 7488 ft. | | | | | FORT HAYS | 8336 ft. | | | | | CODELL | 9118 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 12/13/2018 Interval Top: 9118 ft. Interval Bottom: 11583 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/13/2018 | Treatment End Date: | N/A | | Treatment Summary: | 9118'-9150'; 9198'-9451'; 9504'-9760'; 9809'-10061'; 10116'-10369'; 10419'-10624'; 10724'-10980'; 11030'-11284';
11334'-11583'
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 9118 ft. | # Of Holes: | 313 | | Interval Bottom: | 11583 ft. | Hole Size: | 0.42 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 12/13/2018 Interval Top: 8336 ft. Interval Bottom: 11935 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/13/2018 | Treatment End Date: | N/A | | Treatment Summary: | 8336'-8533'; 8,590'-8,845'; 8894'-9117'; 11639'-11895'; 11934'-11935'
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8336 ft. | # Of Holes: | 313 | | Interval Bottom: | 11935 ft. | Hole Size: | 0.42 in. |
|
Formation NBFHC Formation Classification: OW Status: PR - 8/13/2018 Interval Top: 7976 ft. Interval Bottom: 11935 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 9/27/2018 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/23/2018 | Treatment End Date: | 3/26/2018 | | Treatment Summary: | 92384 bbls water, 69 bbls additives (FRP-4K, ACI-97 and ASF-67) and 12 bbl HCL in a 14 stage frac with 2,394,730 lbs of silica quartz proppant
| | Total fluid used in treatment (bbls): | 92465 | Max pressure during treatment (psi): | 8295 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 14 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.92 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 7739 | | Fresh water used in treatment (bbls): | 92453 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2394730 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7695 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/13/2018 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 372 | | BBLS_OIL | 572 | | BTU_GAS | 1249 | | CALC_BBLS_H2O | 372 | | CALC_BBLS_OIL | 572 | | CALC_GOR | 1796 | | CALC_MCF_GAS | 1027 | | CASING_PRESS | 2350 | | GRAVITY_OIL | 45 | | MCF_GAS | 1027 | | TUBING_PRESS | 1200 |
| | Perforation Data: | | Interval Top: | 7976 ft. | # Of Holes: | 313 | | Interval Bottom: | 11935 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 12/13/2018 Interval Top: 7976 ft. Interval Bottom: 8335 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/13/2018 | Treatment End Date: | N/A | | Treatment Summary: | 7,976'- 8,234'; 8,279'-8335'
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7976 ft. | # Of Holes: | 313 | | Interval Bottom: | 8335 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1711 |
| Total Gas Produced (MCF) | 52993 |
| GOR | 30971 |
| GOR Determination | MCFE |
| Average BOE per Day | 29.733 |
| Average MCFE per Day | 172.417 |
| Federal Financial Assurance | i | |
|
|
