Wellbore #00 Wellbore Classification: OW Status: PR - 1/7/2019 Measured TD: 17685 ft. Vertical TD: 7946 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/7/2019 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/3/2015 | | Proposed Top PZ Location: | Sec:29 Twp: 1N 68W | Footage: 495 FSL 450 FEL | | Bottom Hole Location: | Sec:20 Twp: 1N 68W | Footage: 593 FNL 490 FEL | | Proposed Depth/Form: | 17590 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBFHC , Formation: NIOBRARA-FT HAYS-CODELL , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 889 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 889 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8556 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 487, Top: 589 ft., Bottom: 8556 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 17826 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 363, Top: 8256 ft., Bottom: 17826 ft. |
| | |

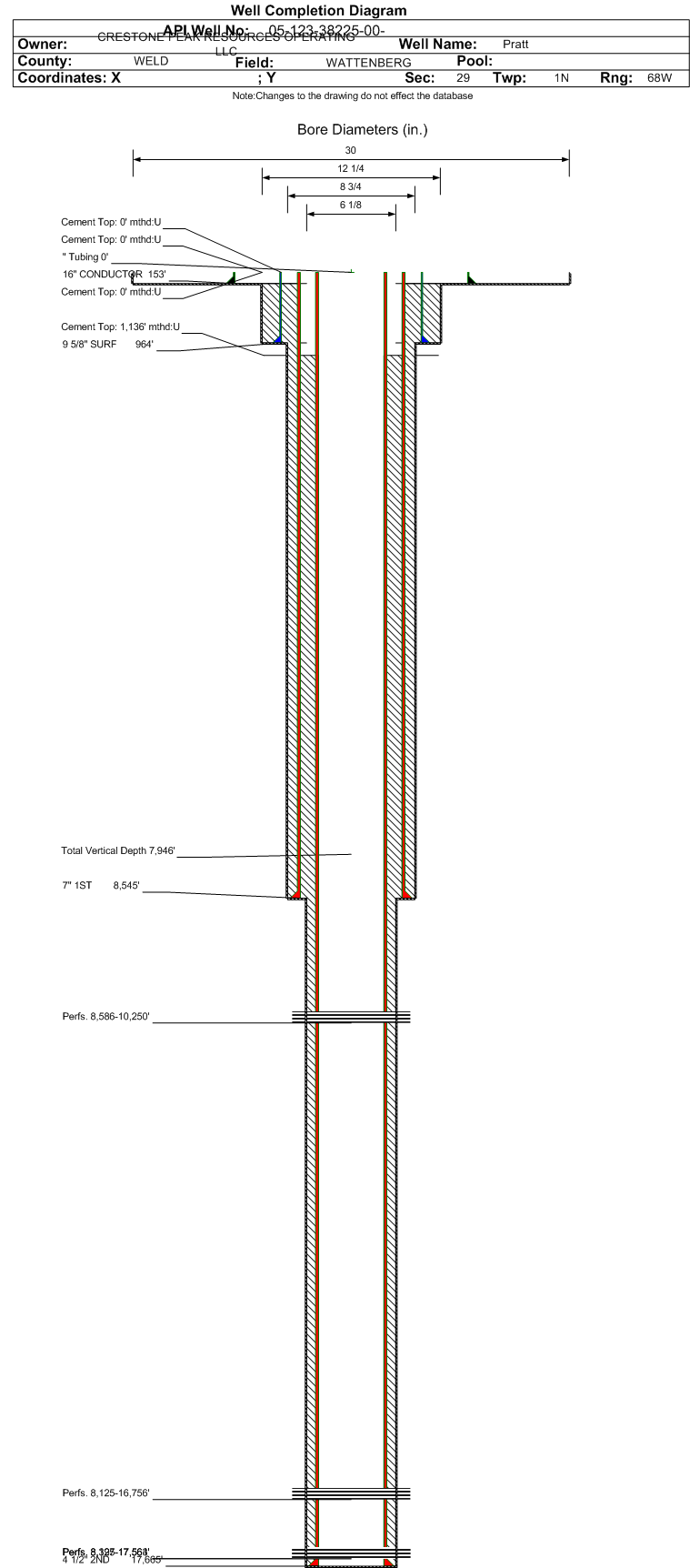

| Wellbore Completed | | Completion Date: | 12/21/2014 | | Spud Date: | 11/26/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 17685 ft. | Measured PB depth: | 17659 ft. | | True Vertical TD: | 7946 ft. | True Vertical PB depth: | 7947 ft. | | Top PZ Location: | Sec:29 Twp: 1N 68W | Footage: 495 FSL 450 FEL | | Bottom Hole Location: | Sec:20 Twp: 1N 68W | Footage: 593 FNL 490 FEL | | Log Types: | CBL/MWD. | | Log Types: | MWD, Mud, CBL (Pulsed Neutron in 123-38301) | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 153 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 160, Top: 0 ft., Bottom: 153 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 964 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 445, Top: 0 ft., Bottom: 964 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8545 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 781, Top: 0 ft., Bottom: 8545 ft., Determination Method: VISU | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 17665 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: 815, Top: 1136 ft., Bottom: 17665 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS BASE | 458 ft. | | | | | SUSSEX | 5141 ft. | | | | | SHANNON | 5451 ft. | | | | | TEEPEE BUTTES | 6936 ft. | | | | | SHARON SPRINGS | 7725 ft. | | | | | NIOBRARA | 7784 ft. | | | | | FORT HAYS | 8397 ft. | | | | | CODELL | 8586 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 10/18/2018 Interval Top: 8586 ft. Interval Bottom: 10250 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/18/2018 | Treatment End Date: | N/A | | Treatment Summary: | Perfs at: 8586-10250; 10541-11049; 11344-15527; 15947-16230; m16484-16642;17348-17486 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8586 ft. | # Of Holes: | 831 | | Interval Bottom: | 10250 ft. | Hole Size: | |
|
Formation FTHYS Formation Classification: OW Status: CM - 10/18/2018 Interval Top: 8397 ft. Interval Bottom: 17564 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/18/2018 | Treatment End Date: | N/A | | Treatment Summary: | Perfs at: 8397-8585; 10251-10540; 11050-11194; 15528-15636; 15832-15946; 16280-16483; 16757-17347; 17487-17564 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 8397 ft. | # Of Holes: | 831 | | Interval Bottom: | 17564 ft. | Hole Size: | |
|
Formation NBFHC Formation Classification: OW Status: PR - 1/7/2019 Interval Top: 8125 ft. Interval Bottom: 17563 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/5/2017 | Treatment End Date: | 10/12/2017 | | Treatment Summary: | Corrected treatment date(s).
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/4/2017 | Treatment End Date: | 10/12/2017 | | Treatment Summary: | 224837 bbl water, 195 bbl additives (FRP-4K, ACI-97 and ASF-67) and 24 bbl HCl in a
36 stage frac with 5794472 lb of silica quartz proppant | | Total fluid used in treatment (bbls): | 225056 | Max pressure during treatment (psi): | 8997 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 36 | | Total acid used in treatment (bbls): | 24 | Min frac gradient (psi/ft): | 0.81 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 1451 | | Fresh water used in treatment (bbls): | 224837 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5794472 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 681 | | BBLS_OIL | 292 | | BTU_GAS | 1254 | | CALC_BBLS_H2O | 681 | | CALC_BBLS_OIL | 292 | | CALC_GOR | 3658 | | CALC_MCF_GAS | 1068 | | CASING_PRESS | 3000 | | GRAVITY_OIL | 47 | | MCF_GAS | 1068 | | TUBING_PRESS | 2050 |
| | Perforation Data: | | Interval Top: | 8125 ft. | # Of Holes: | 831 | | Interval Bottom: | 17563 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 10/18/2018 Interval Top: 8125 ft. Interval Bottom: 16756 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/18/2018 | Treatment End Date: | N/A | | Treatment Summary: | Perfs at:8125-8396;11195-11343; 15637-15831; 16643-16756 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 8125 ft. | # Of Holes: | 831 | | Interval Bottom: | 16756 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 20562 |
| Total Gas Produced (MCF) | 156111 |
| GOR | 7592 |
| GOR Determination | BOE |
| Average BOE per Day | 130.023 |
| Average MCFE per Day | 754.132 |
| Federal Financial Assurance | i | |
|
|
