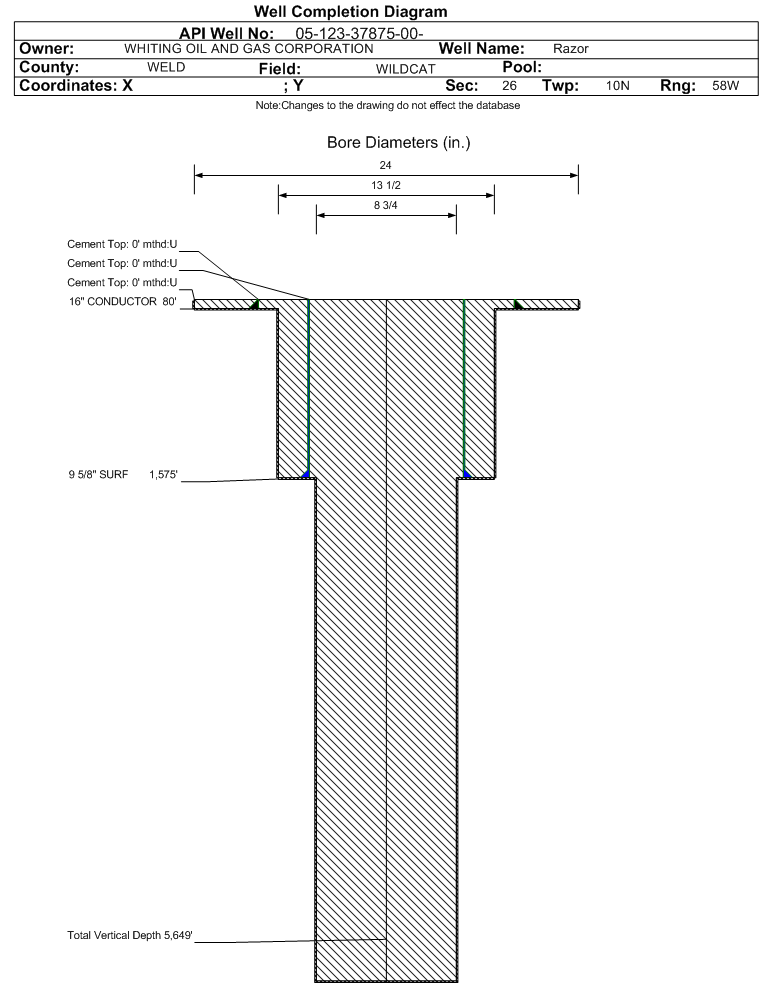

Wellbore #00 Wellbore Classification: OW Status: PR - 11/20/2014 Measured TD: 6017 ft. Vertical TD: 5649 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/20/2014 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 8/22/2015 | | Proposed Top PZ Location: | Sec:26 Twp: 10N 58W | Footage: 1912 FNL 1372 FWL | | Bottom Hole Location: | Sec:23 Twp: 10N 58W | Footage: 100 FNL 1485 FWL | | Proposed Depth/Form: | 13342 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-314 , Unit Acreage: 960, Drill Unit: ALL 23, N/2 26 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6200 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 433, Top: 0 ft., Bottom: 6200 ft. | | Casing: | String Type: 2ND, Hole Size: 6 in., Size: 4.5 in., Top: 5136 ft., Depth: 13342 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 3/3/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 6017 ft. | Measured PB depth: | 4700 ft. | | True Vertical TD: | 5649 ft. | True Vertical PB depth: | 4676 ft. | | Bottom Hole Location: | Sec:26 Twp: 10N 58W | Footage: 2021 FNL 1525 FWL | | Log Types: | The CBL will be submitted with the Form 5 for the -01 wellbore. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 75 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1575 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 0 ft., Bottom: 1575 ft., Determination Method: VISU | | Casing: | String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 1575 ft., Depth: 6017 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Additional Cement: | String Type: OPEN HOLE , Top: 5300 ft., Depth: 6000 ft., Bottom: 6000 ft., Sacks: 280, Method: RETAINER | | Additional Cement: | String Type: OPEN HOLE , Top: 4700 ft., Depth: 5300 ft., Bottom: 5300 ft., Sacks: 300, Method: RETAINER | | Additional Cement: | String Type: OPEN HOLE , Top: 4700 ft., Depth: 5400 ft., Bottom: 5400 ft., Sacks: 350, Method: RETAINER | | No formation data to display. |
Sidetrack #01 Wellbore Classification: OW Status: PR - 10/22/2014 Measured TD: 13316 ft. Vertical TD: 5617 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: OW PR - 10/22/2014 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/10/2016 | | Proposed Top PZ Location: | Sec:26 Twp: 10N 58W | Footage: 1912 FNL 1372 FWL | | Bottom Hole Location: | Sec:23 Twp: 10N 58W | Footage: 100 FNL 1485 FWL | | Proposed Depth/Form: | 13290 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-314 , Unit Acreage: 960, Drill Unit: All 23, N/2 26 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: 0 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1565 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1565 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5906 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 433, Top: 0 ft., Bottom: 5906 ft. | | Casing: | String Type: 2ND, Hole Size: 6 in., Size: 4.5 in., Top: 5000 ft., Depth: 13290 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 3/22/2014 | | Spud Date: | 3/3/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13316 ft. | Measured PB depth: | 13316 ft. | | True Vertical TD: | 5617 ft. | True Vertical PB depth: | 5617 ft. | | Top PZ Location: | Sec:26 Twp: 10N 58W | Footage: 2191 FNL 1594 FWL | | Bottom Hole Location: | Sec:23 Twp: 10N 58W | Footage: 123 FNL 1472 FWL | | Log Types: | LWD, Mud, RCBL
NOTE: Full set of logs run on Razor 26K-2306B | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 75 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1565 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 0 ft., Bottom: 1565 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5959 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 690, Top: 1456 ft., Bottom: 5959 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 4914 ft., Depth: 13298 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 545, Top: 4914 ft., Bottom: 13298 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1691 ft. | | N | N | | HYGIENE | 3513 ft. | | N | N | | SHARON SPRINGS | 5664 ft. | | N | N | | NIOBRARA | 5675 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 10/22/2014 Interval Top: 5959 ft. Interval Bottom: 13316 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/19/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/25/2014 | Treatment End Date: | 7/3/2014 | | Treatment Summary: | 40 stages: 78126 bbl XL Gel, 92781 bbl Linear Gel, 127714# 100 Mesh, 5476456# 16/30 Wh Sand, 1002 bbls 15% HCl, 34006 bbl Slickwater | | Total fluid used in treatment (bbls): | 127804 | Max pressure during treatment (psi): | 8124 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 1002 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 30031 | | Fresh water used in treatment (bbls): | 127804 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5604170 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 5662 ft. | | Tubing Packer Depth: | 5662 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/22/2014 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 86 | | BBLS_OIL | 129 | | BTU_GAS | 1405 | | CALC_BBLS_H2O | 86 | | CALC_BBLS_OIL | 129 | | CALC_GOR | 388 | | CALC_MCF_GAS | 50 | | CASING_PRESS | 850 | | GRAVITY_OIL | 35 | | MCF_GAS | 50 | | TUBING_PRESS | 390 |
| | Perforation Data: | | Interval Top: | 5959 ft. | # Of Holes: | 1440 | | Interval Bottom: | 13316 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1813 |
| Total Gas Produced (MCF) | 16797 |
| GOR | 9264 |
| GOR Determination | BOE |
| Average BOE per Day | 12.919 |
| Average MCFE per Day | 74.926 |
| Federal Financial Assurance | i | |
|
|
