Wellbore #00 Wellbore Classification: OW Status: PR - 2/13/2015 Measured TD: 14400 ft. Vertical TD: 7108 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 2/13/2015 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 8/12/2015 | | Proposed Top PZ Location: | Sec:5 Twp: 2n 67w | Footage: 2037 FNL 783 FWL | | Bottom Hole Location: | Sec:32 Twp: 3n 67w | Footage: 521 FNL 700 FWL | | Proposed Depth/Form: | 14509 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 30 , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 800 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 800 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7441 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 420, Top: 500 ft., Bottom: 7441 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 14509 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 280, Top: 7141 ft., Bottom: 14509 ft. |
| | |

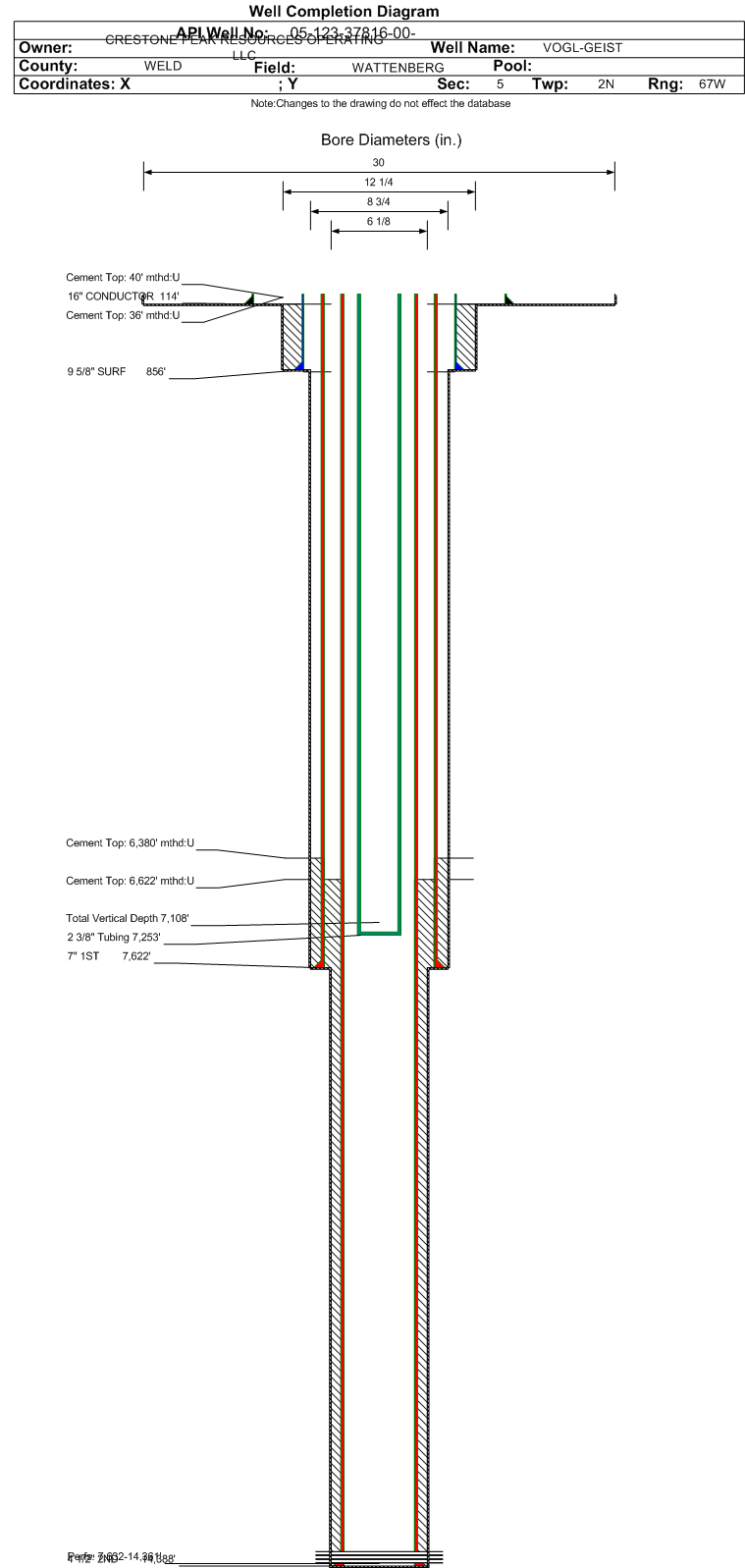

| Wellbore Completed | | Completion Date: | 4/27/2014 | | Spud Date: | 3/9/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 14400 ft. | Measured PB depth: | 14385 ft. | | True Vertical TD: | 7108 ft. | True Vertical PB depth: | 7108 ft. | | Top PZ Location: | Sec:5 Twp: 2n 67w | Footage: 2037 FNL 783 FWL | | Bottom Hole Location: | Sec:32 Twp: 3n 67w | Footage: 521 FNL 700 FWL | | Log Types: | CBL/MWD/IND | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 114 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 432, Top: 40 ft., Bottom: 114 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 856 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 358, Top: 36 ft., Bottom: 880 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7622 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 590, Top: 6380 ft., Bottom: 7622 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 14388 ft., Weight: 13.50 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 6622 ft., Bottom: 14400 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 6992 ft. | 7078 ft. | | | | NIOBRARA | 7078 ft. | 7109 ft. | | |
Formation NBRR Formation Classification: OW Status: PR - 2/13/2015 Interval Top: 7632 ft. Interval Bottom: 14361 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/19/2014 | Choke Size: | 16.000 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/24/2014 | Treatment End Date: | 8/30/2014 | | Treatment Summary: | Stages 1 - 45 treated with 174,407 bbls of fresh water, 18,305 bbls of recycled water, 1,054 bbls of HCL 15%, 973 bbls of additives, and 10,900,880 lbs of 40/70 sand proppant. | | Total fluid used in treatment (bbls): | 194739 | Max pressure during treatment (psi): | 9718 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 45 | | Total acid used in treatment (bbls): | 1054 | Min frac gradient (psi/ft): | 0.95 | | Recycled water used in treatment (bbls): | 18305 | Total flowback volume recovered (bbls): | 765 | | Fresh water used in treatment (bbls): | 175380 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 10900880 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7253 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/13/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 25 | | BBLS_OIL | 139 | | BTU_GAS | 1298 | | CALC_BBLS_H2O | 25 | | CALC_BBLS_OIL | 139 | | CALC_GOR | 8525 | | CALC_MCF_GAS | 1185 | | CASING_PRESS | 1512 | | GRAVITY_OIL | 50 | | MCF_GAS | 1185 | | TUBING_PRESS | 1147 |
| | Perforation Data: | | Interval Top: | 7632 ft. | # Of Holes: | 1215 | | Interval Bottom: | 14361 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1892 |
| Total Gas Produced (MCF) | 58905 |
| GOR | 31133 |
| GOR Determination | MCFE |
| Average BOE per Day | 32.988 |
| Average MCFE per Day | 191.332 |
| Federal Financial Assurance | i | |
|
|
